Center Panel Module Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before disassembling the center panel module, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

Disassemble in the order indicated.
Assemble in the reverse order of disassembly.

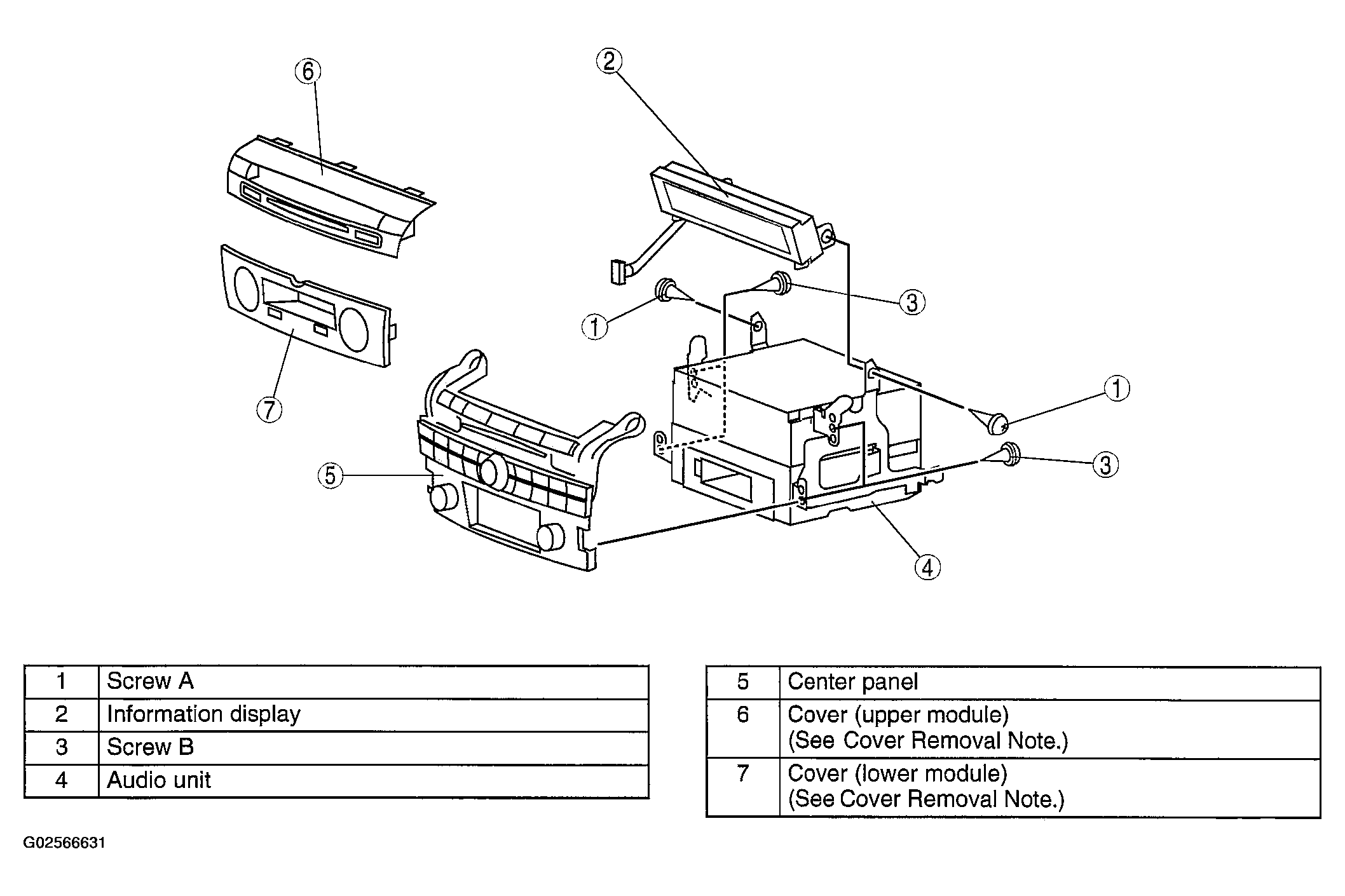

Fig 1: Disassembling/Assembling Center Panel Module
Courtesy of MAZDA MOTORS CORP.
