Front Tweeter Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front tweeter.
  4. Install in the reverse order of removal.

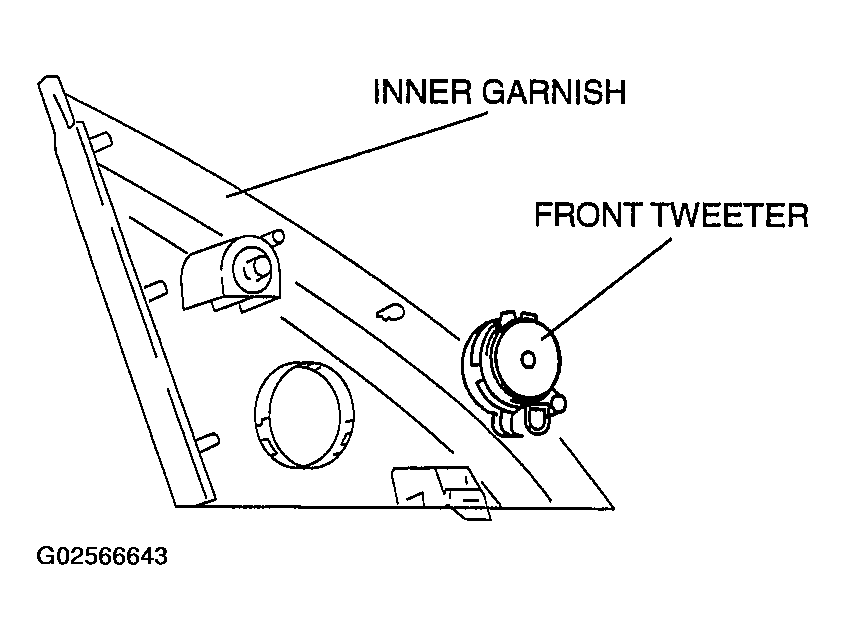

    Fig 1: Removing/Installing Front Tweeter
    G02566643Courtesy of MAZDA MOTORS CORP.
