Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the CD player to the console till the tabs locks in place.

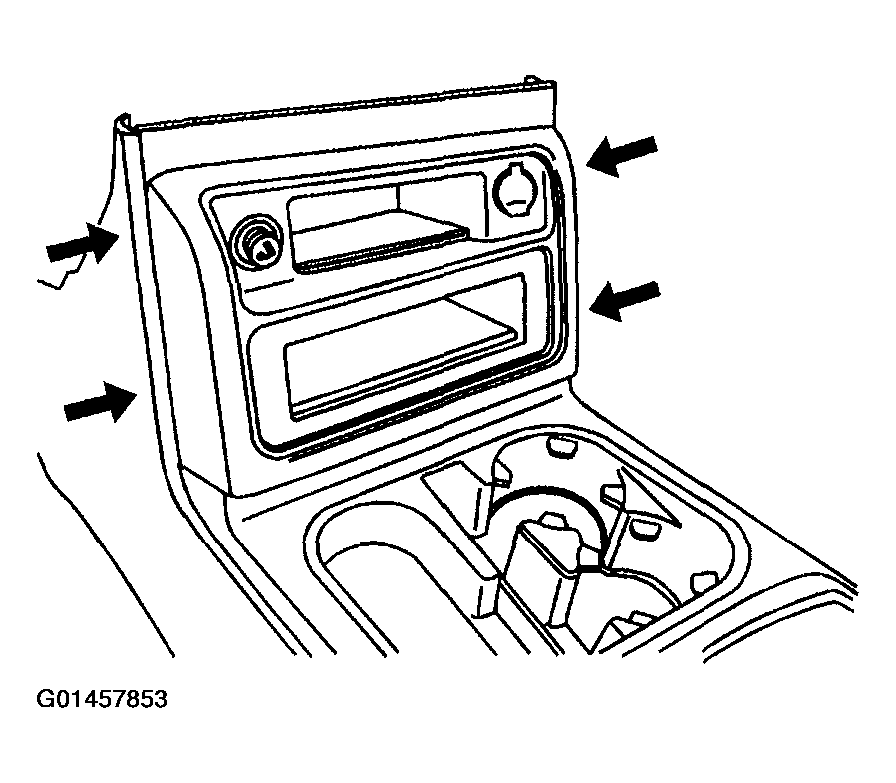

    2. Fig 1: Installing Remote CD Player
    G01457853Courtesy of GENERAL MOTORS CORP.
  2. Place the bezel to the console.
  3. Connect the electrical connectors.
  4. Install the bezel to the console by pushing on the corners till the retainers clicks in place.
  5. Install the I/P cluster bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
