Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical harness to the rear quarter courtesy lamp.
  2. Reposition the rear quarter courtesy lamp to the opening in the headliner.
  3. Using firm pressure, push inward on the rear portion of the rear quarter courtesy lamp until an audible click is heard.

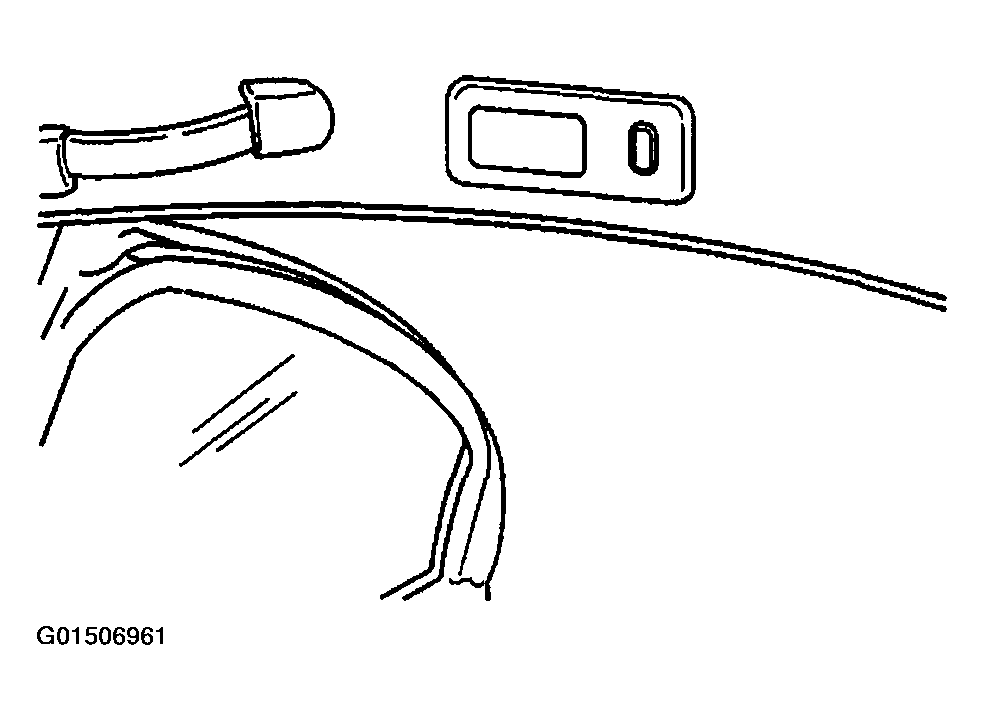

    Fig 1: Installing Rear Quarter Courtesy Lamp
    G01506961Courtesy of GENERAL MOTORS CORP.
