Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the outboard edge of the fog lamp into the fascia.
  2. Push the inboard edge of the fog lamp into the fascia.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the nut.

    Tighten

    Tighten the nut to 4 N.m (35 lb in).

  4. Install the fog lamp bulb socket to the fog lamp assembly by turning clockwise.

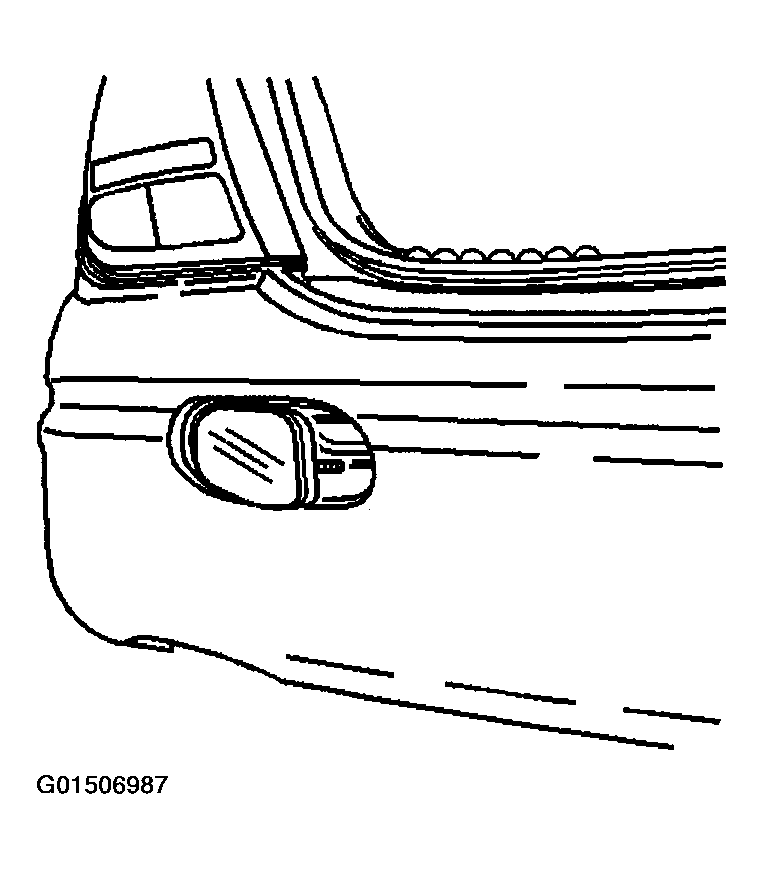

    Fig 1: Installing Rear Fog Lamp Assembly
    G01506987Courtesy of GENERAL MOTORS CORP.
