Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fog lamp bulb socket from the fog lamp assembly by turning the socket counterclockwise.
  2. Remove the nut securing the lamp assembly to the fascia.
  3. Push the inboard edge of the lamp rearward to disengage the lamp from the fascia.
  4. Remove the lamp assembly from the fascia.

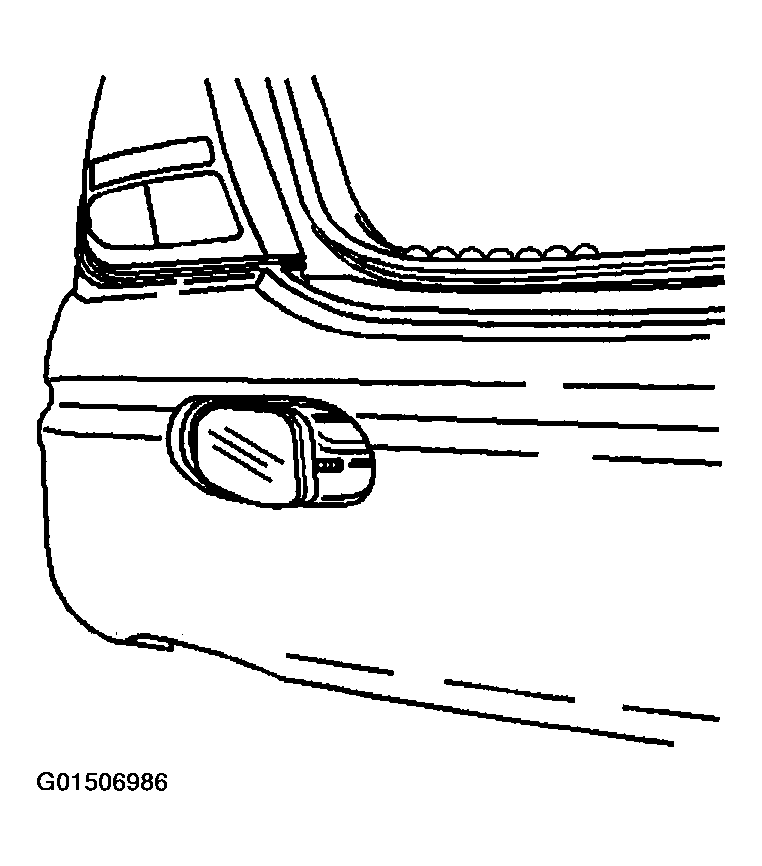

    Fig 1: Remove Rear Fog Lamp Assembly From Fascia
    G01506986Courtesy of GENERAL MOTORS CORP.
