Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the CD player into the mounting bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the fasteners in order to secure the CD player to the bracket.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

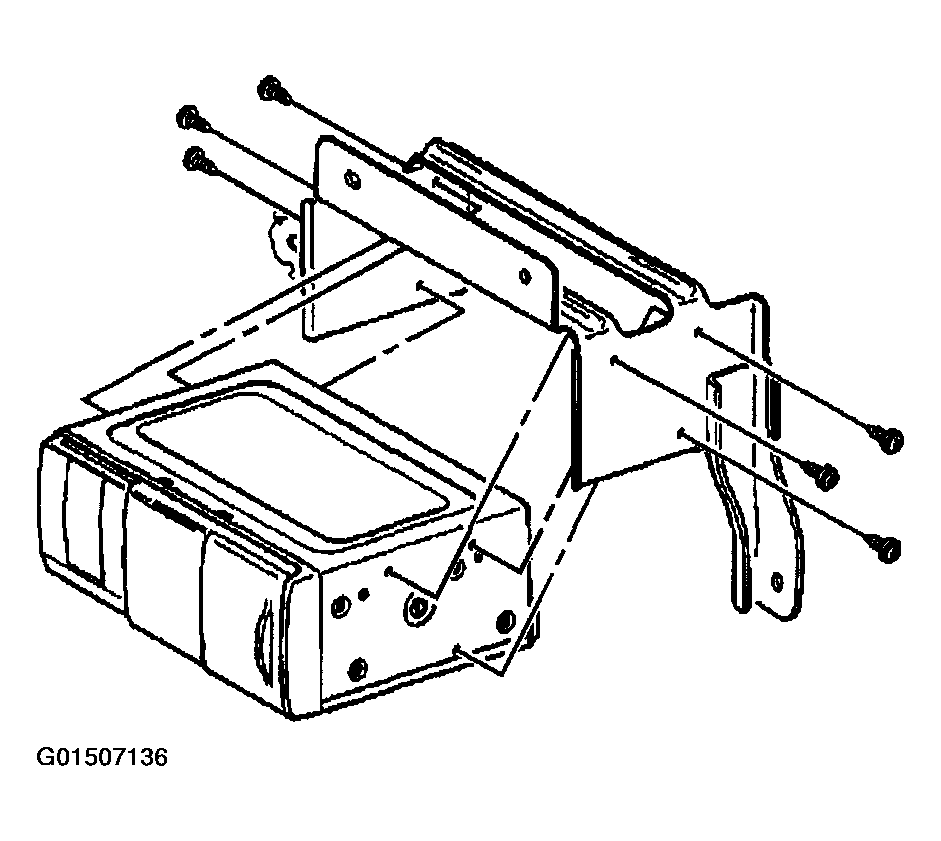

    Fig 1: Installing Remote CD Player On Bracket
    G01507136Courtesy of GENERAL MOTORS CORP.
  3. Position the CD player and bracket into the rear compartment.
  4. Connect the electrical connectors.
  5. Install the fasteners in order to secure the rear compartment CD player and bracket to the vehicle.

    Tighten

    Tighten the rear compartment CD player bracket fasteners to 9 N.m (80 lb in).

  6. Install the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  7. Close the rear compartment deck lid.

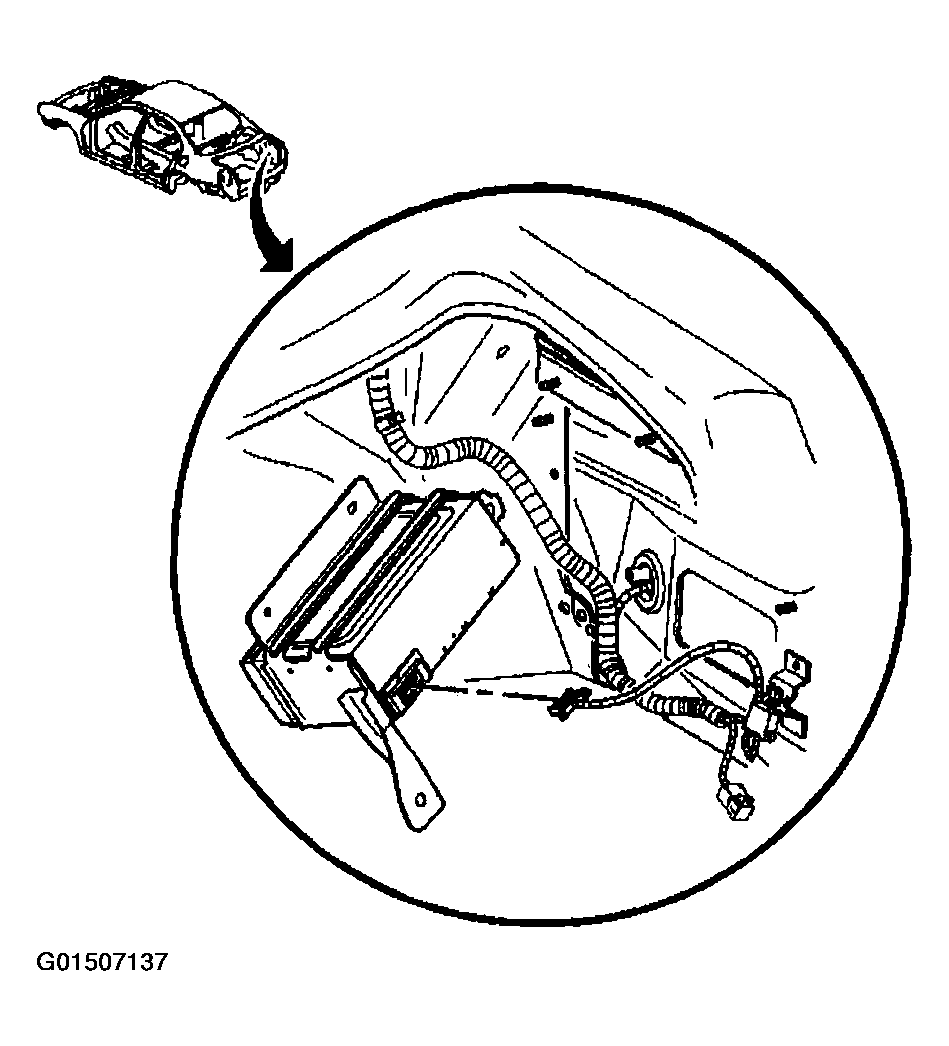

    Fig 2: Installing Remote CD Player With Bracket
    G01507137Courtesy of GENERAL MOTORS CORP.
