Engine Verification

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The engine verification label is placed in two locations on the right side of the engine.

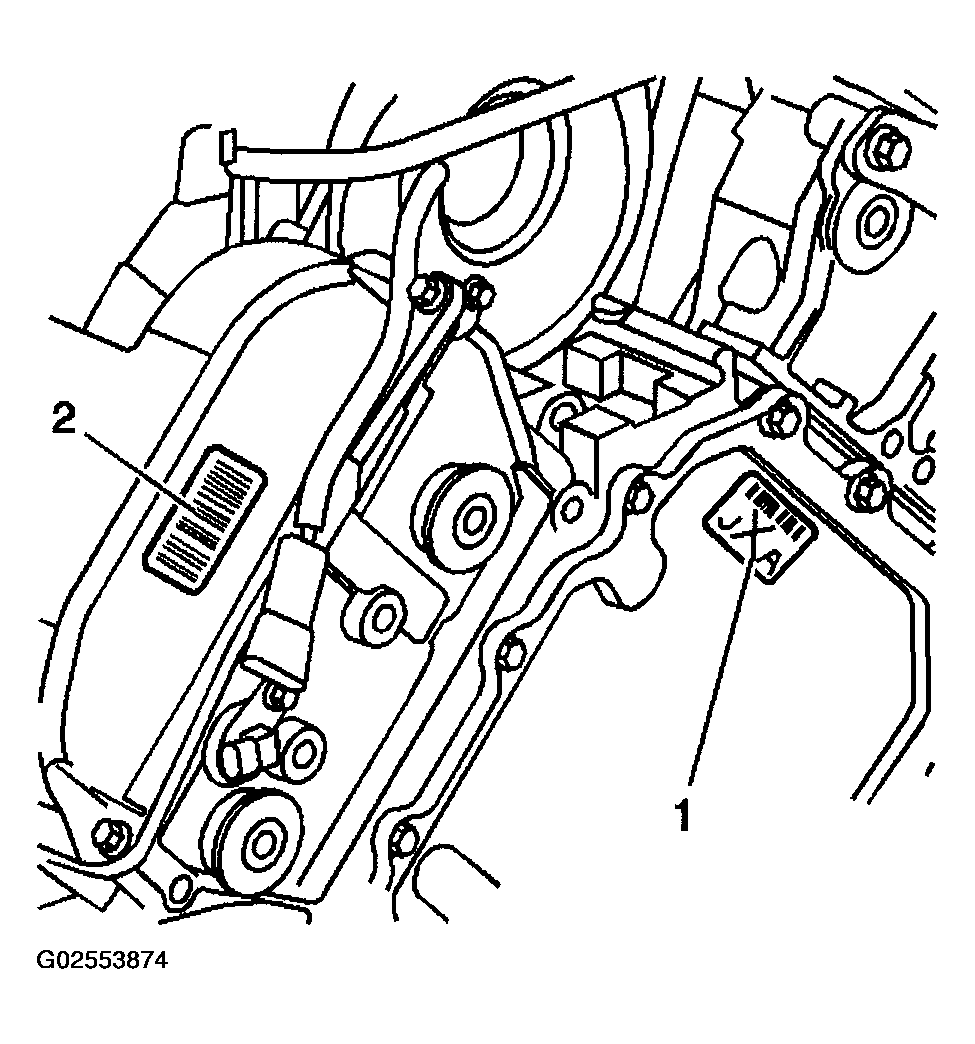

Fig 1: Locating Engine Verification Label
G02553874Courtesy of GENERAL MOTORS CORP.

The engine front cover has an engine verification label (1) and the front of the right camshaft cover has a traceability label (2).

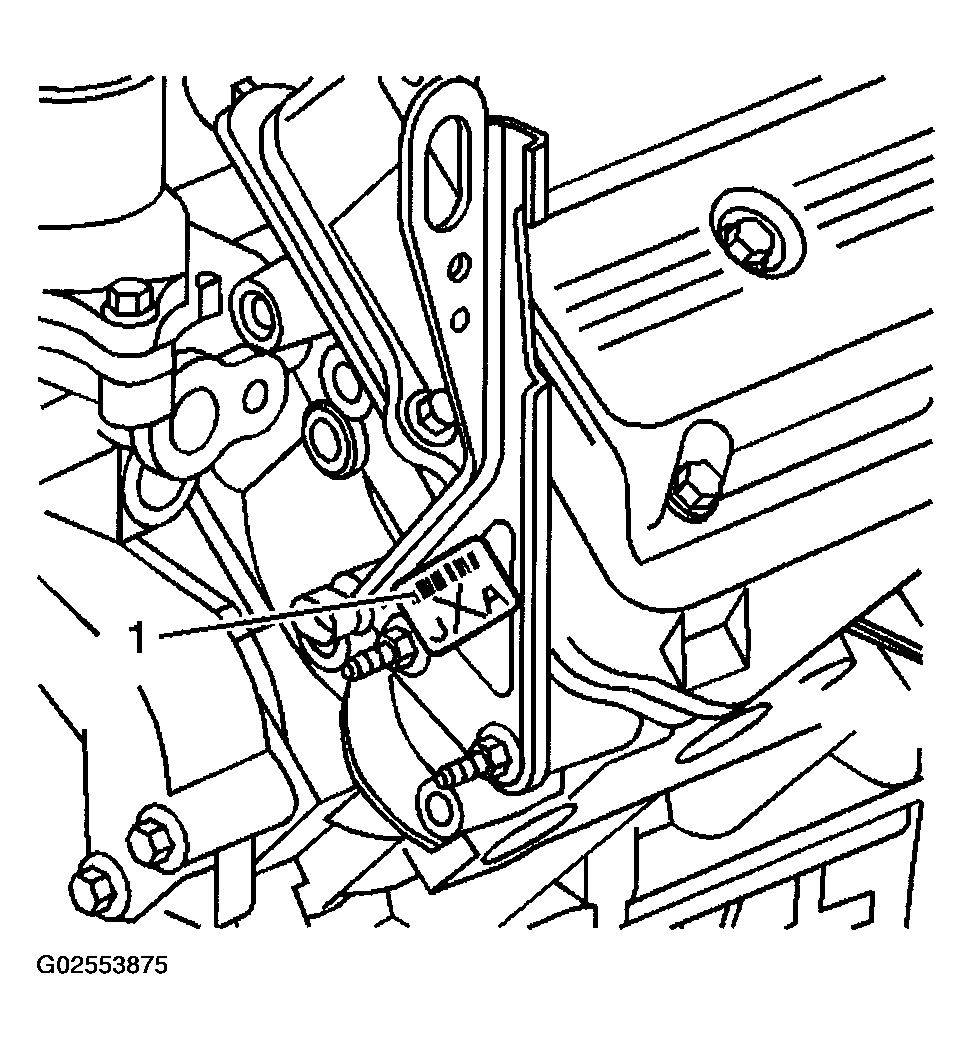

Fig 2: Locating Engine Verification Label At Rear Of Right Cam Shaft
G02553875Courtesy of GENERAL MOTORS CORP.

The rear of the right camshaft cover has an engine verification label (1).
