Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the instrument panel module (IPM) (1).
  2. Install the IPM (1) to the instrument panel (IP) retainer by inserting the top tab of the module into the slot on the IP retainer and rotating down.
    3. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the fastener. Tighten:  Tighten the fastener to 2 N.m (18 lb in).
  4. Install the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  5. Reprogram the IPM. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (IPM)  .

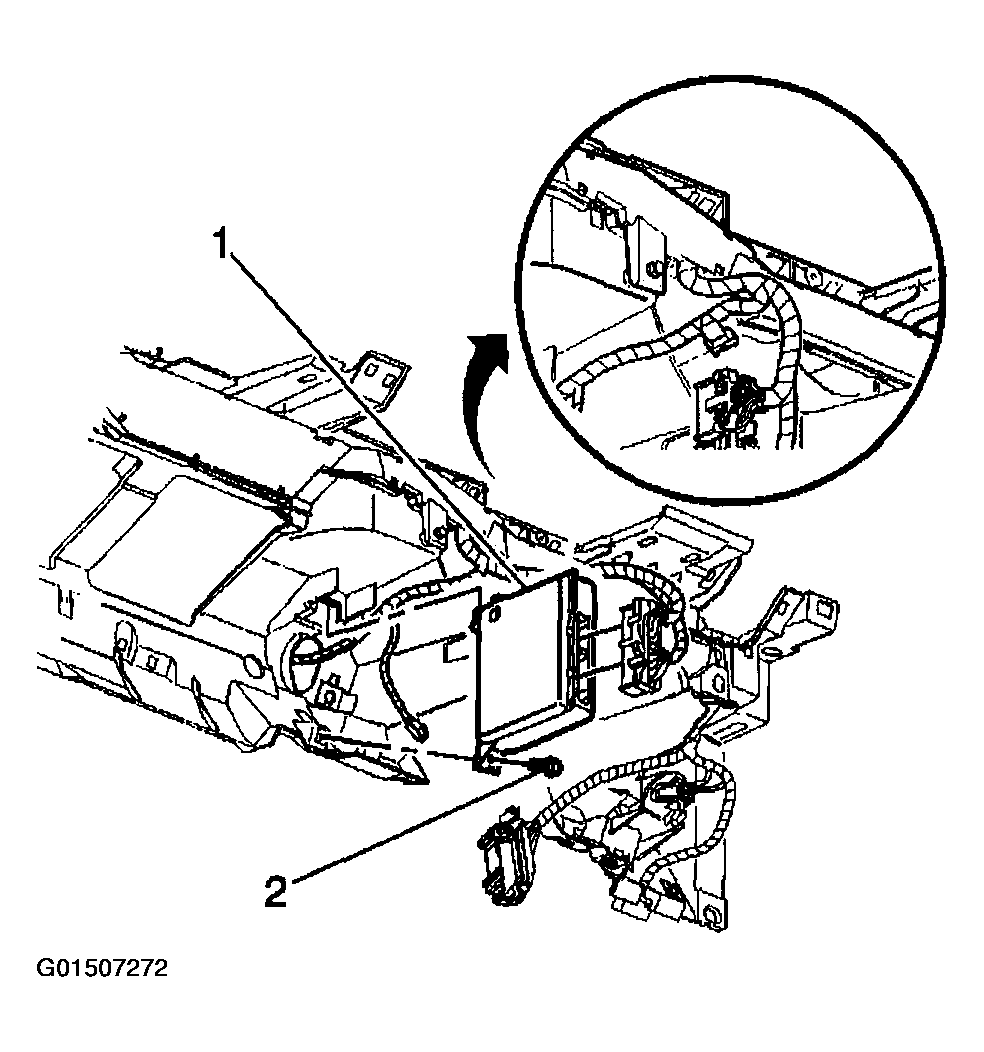

    6. Fig 1: Removing & Installing Instrument Panel Module
    G01507272Courtesy of GENERAL MOTORS CORP.
