Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Remove the fastener (2) from the instrument panel module (IPM).
  3. Rotate the IPM up and out of the instrument panel (IP) retainer.
  4. Disconnect the electrical connectors from the IPM (1).

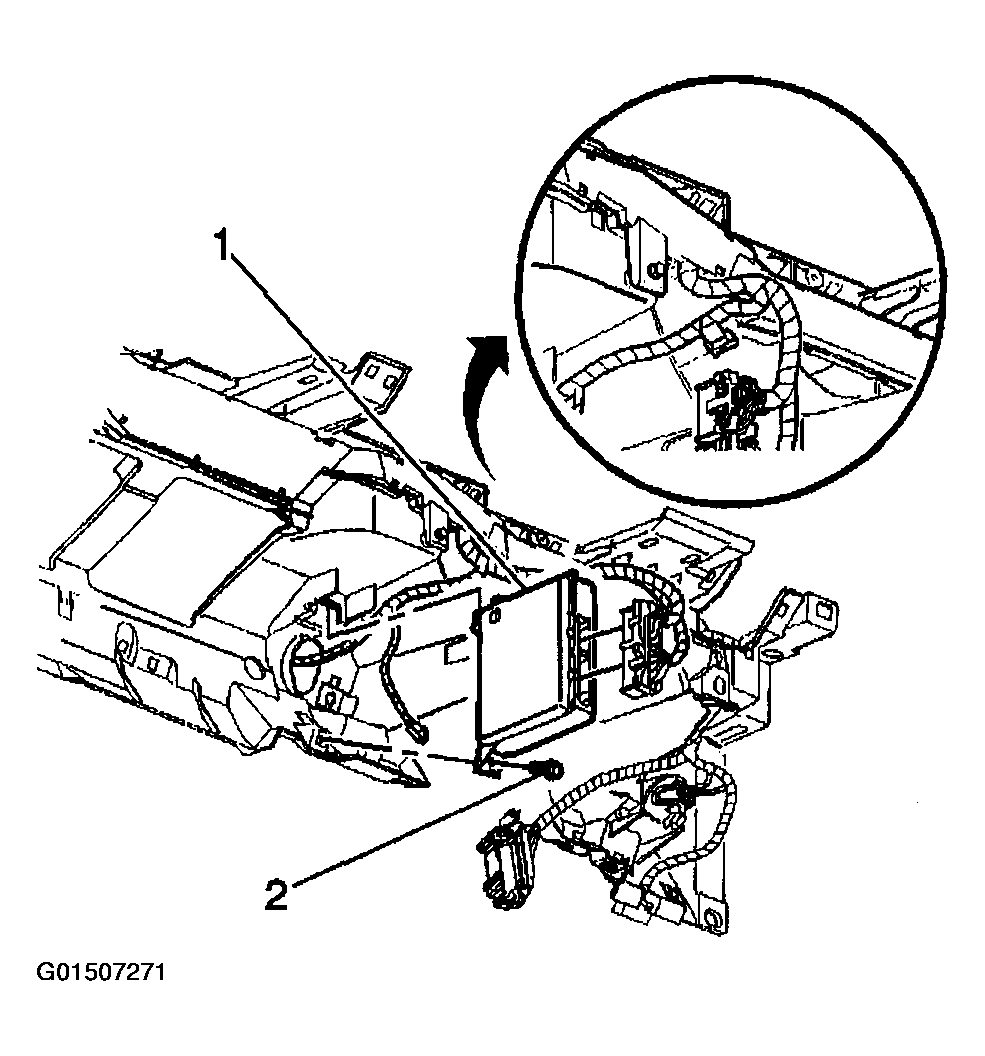

    5. Fig 1: Removing & Installing Instrument Panel Module
    G01507271Courtesy of GENERAL MOTORS CORP.
