Cellular Communication Component Views
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

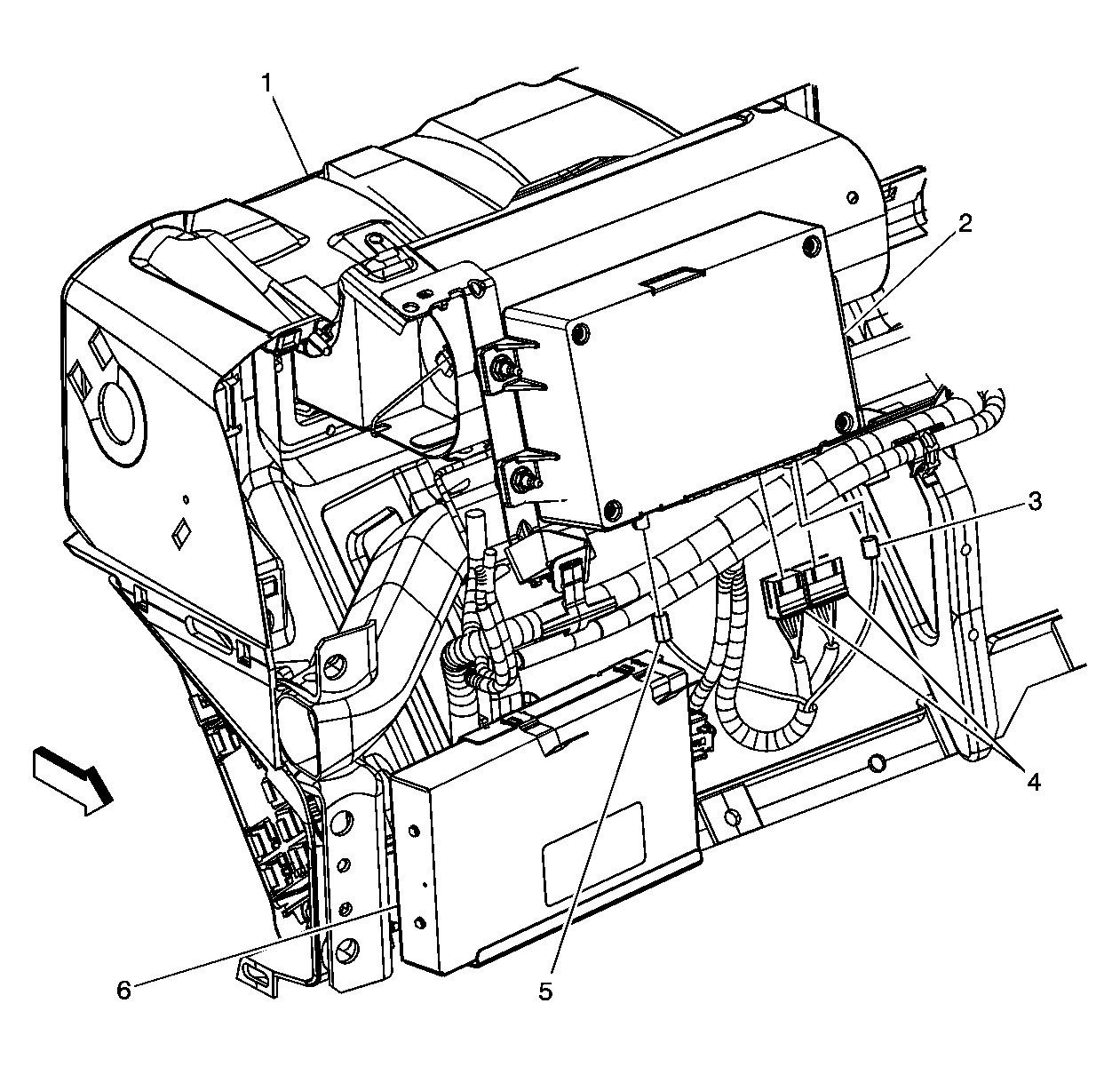

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Instrument Panel (I/P) |
| 2 |
Vehicle Communication Interface Module (VCIM) |
| 3 |
Cellular Antenna Coax |
| 4 |
VCIM Connectors |
| 5 |
Navigation Antenna Coax |
| 6 |
Digital Radio Receiver (U2K/U2L) |

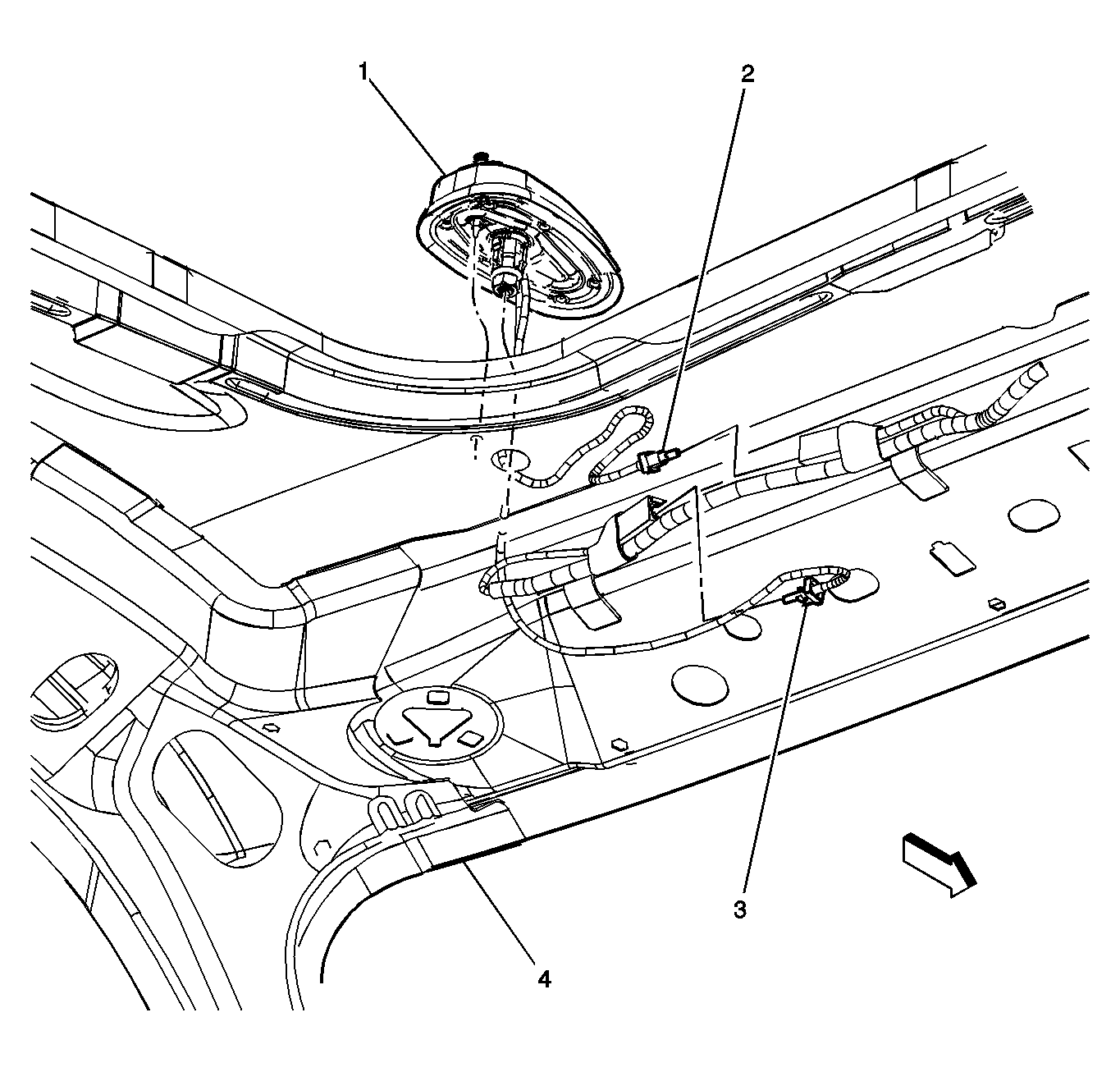

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cellular and Navigation Antenna |
| 2 |
Cellular Antenna |
| 3 |
Navigation Antenna |
| 4 |
Front Roof Panel |

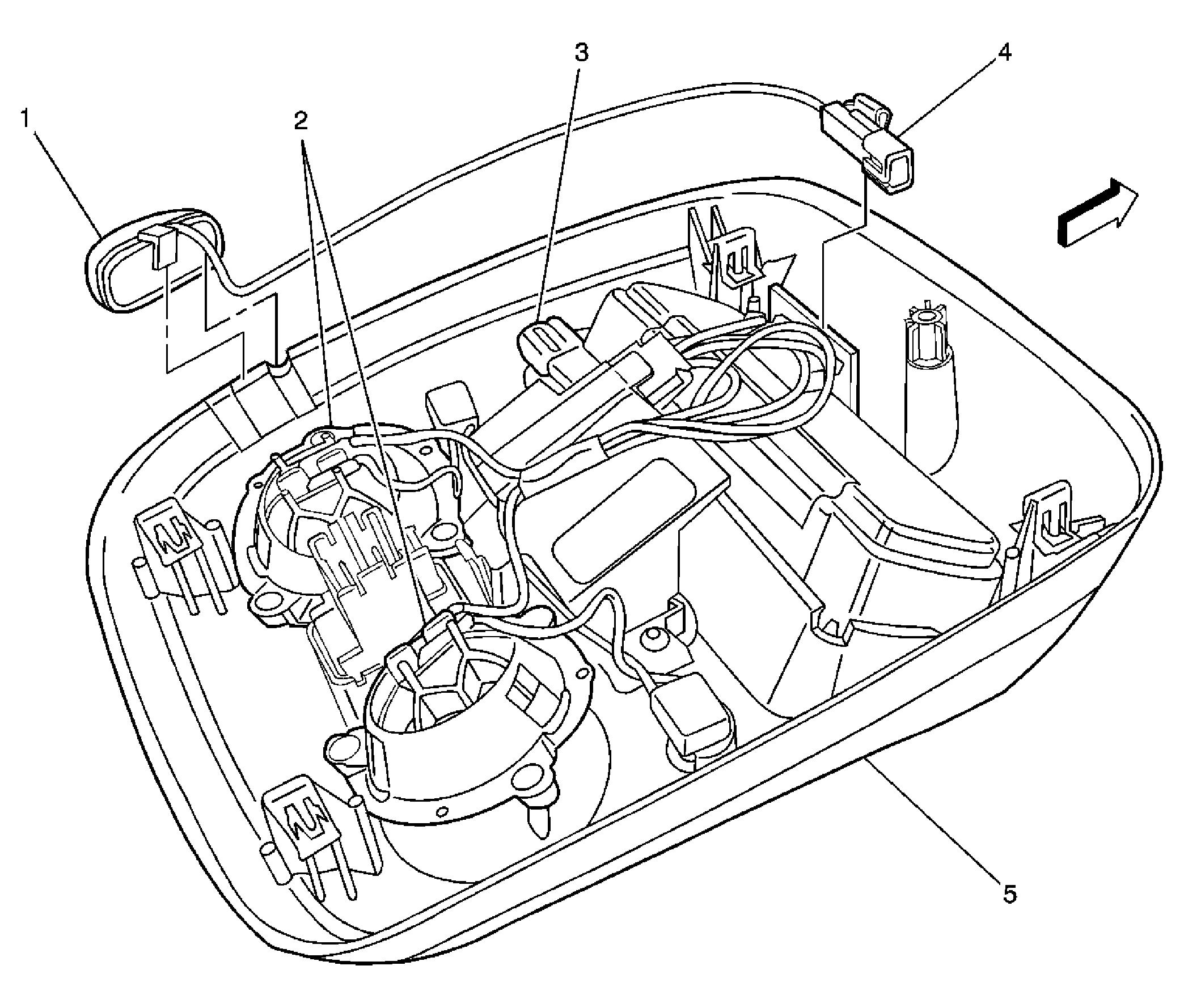

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cellular Microphone |
| 2 |
Courtesy/Reading Lamps - Front |
| 3 |
C355 |
| 4 |
Cellular Microphone Connector |
| 5 |
Overhead Console |
