Cooling System Component Views
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

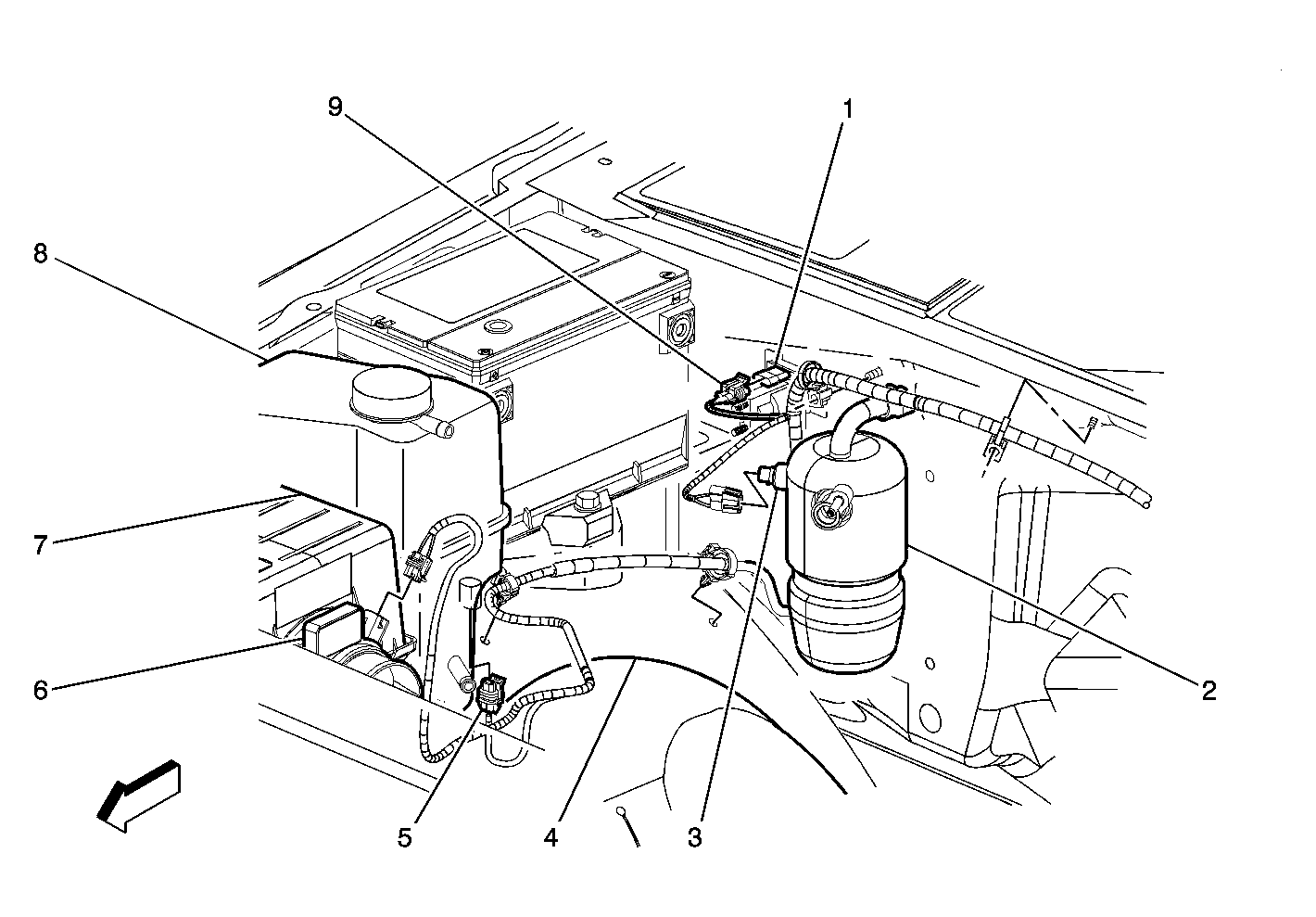

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Auxiliary Battery Relay w/TP2 |
| 2 |
A/C Accumulator |
| 3 |
A/C Low Pressure Switch |
| 4 |
Inner Wheel Well |
| 5 |
Coolant Level Switch Connector 6.6L and 8.1L |
| 6 |
Mass Air Flow (MAF) Sensor |
| 7 |
Air Cleaner Assembly |
| 8 |
Engine Coolant Recovery Reservoir |
| 9 |
Auxiliary Battery Relay Electrical Connector w/TP2 |

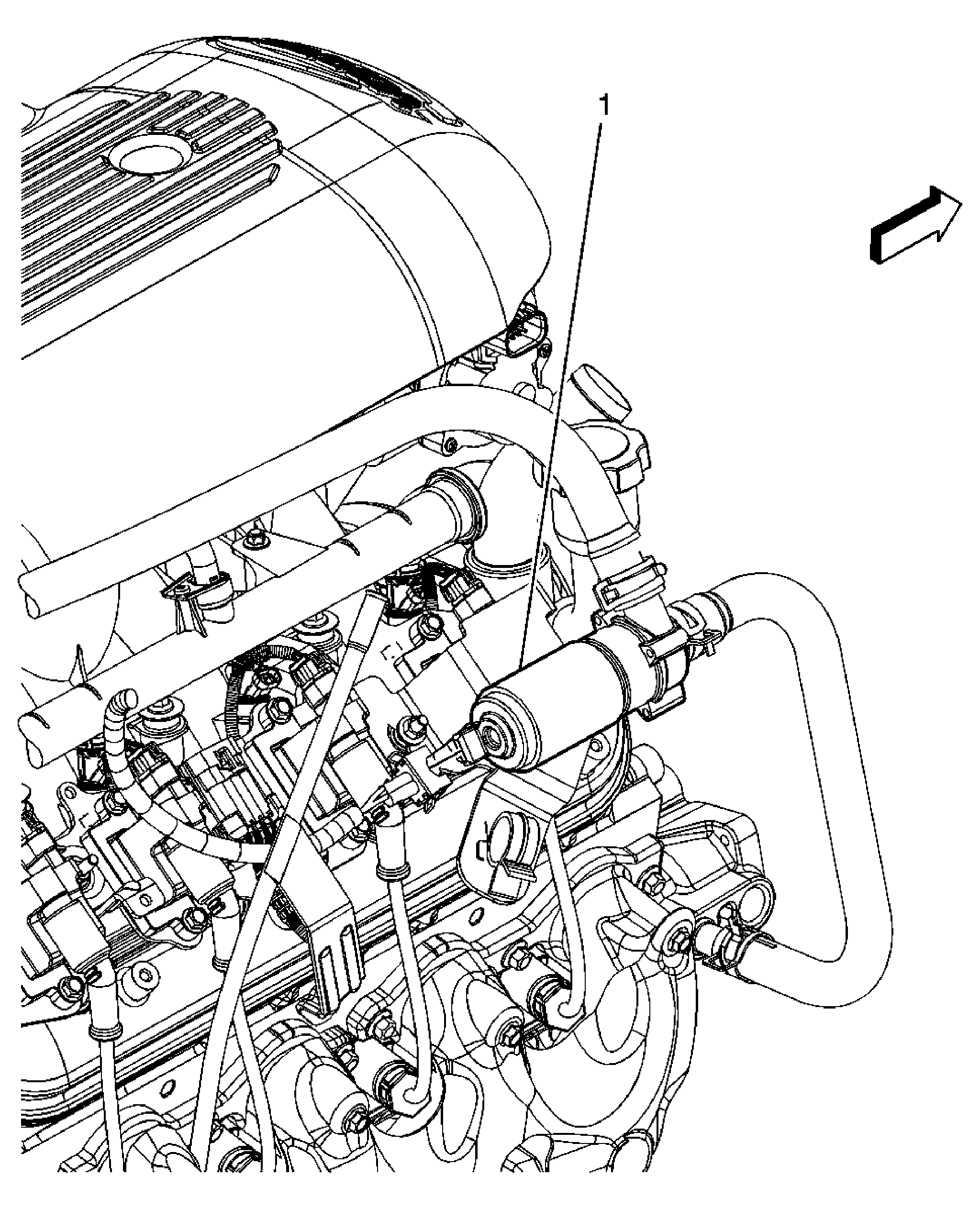

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Auxiliary Water Pump |

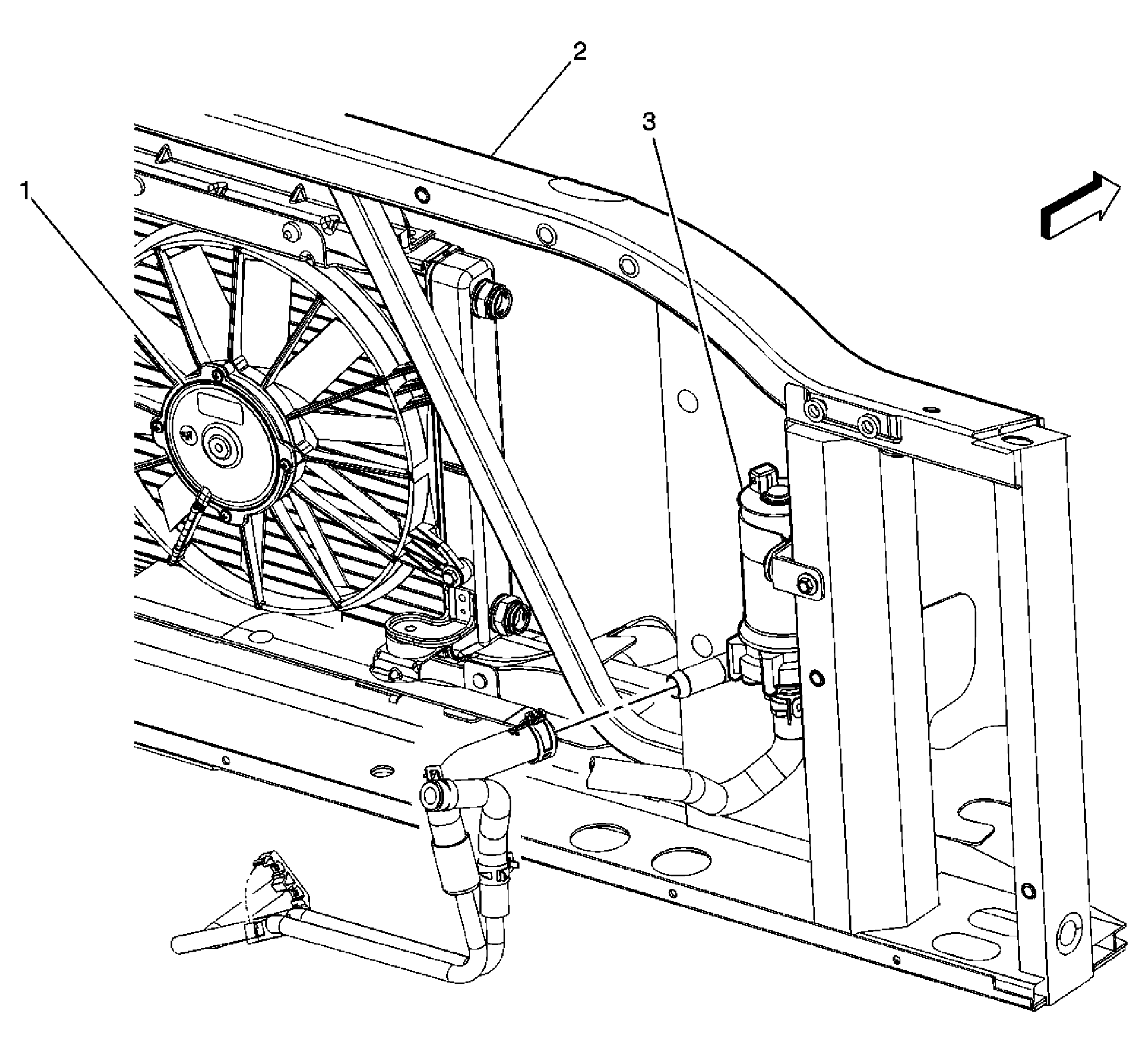

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Starter/Generator Control Module Fan |
| 2 |
Radiator Core Support |
| 3 |
Starter/Generator Control Module Coolant Pump |
