Steering Controls Component Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

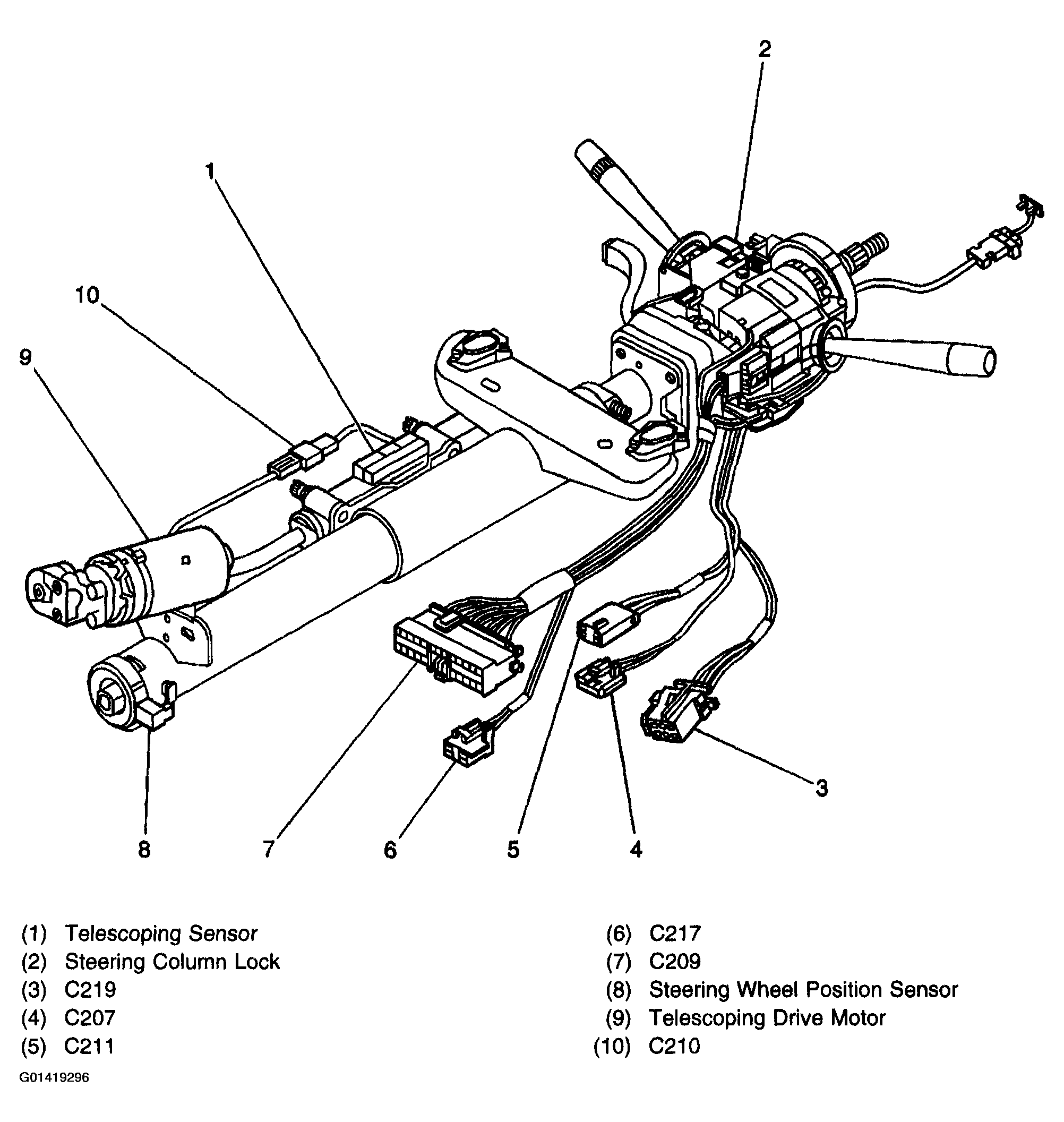

Fig 1: Exploded View Of Steering Column Components
G01419296Courtesy of GENERAL MOTORS CORP.

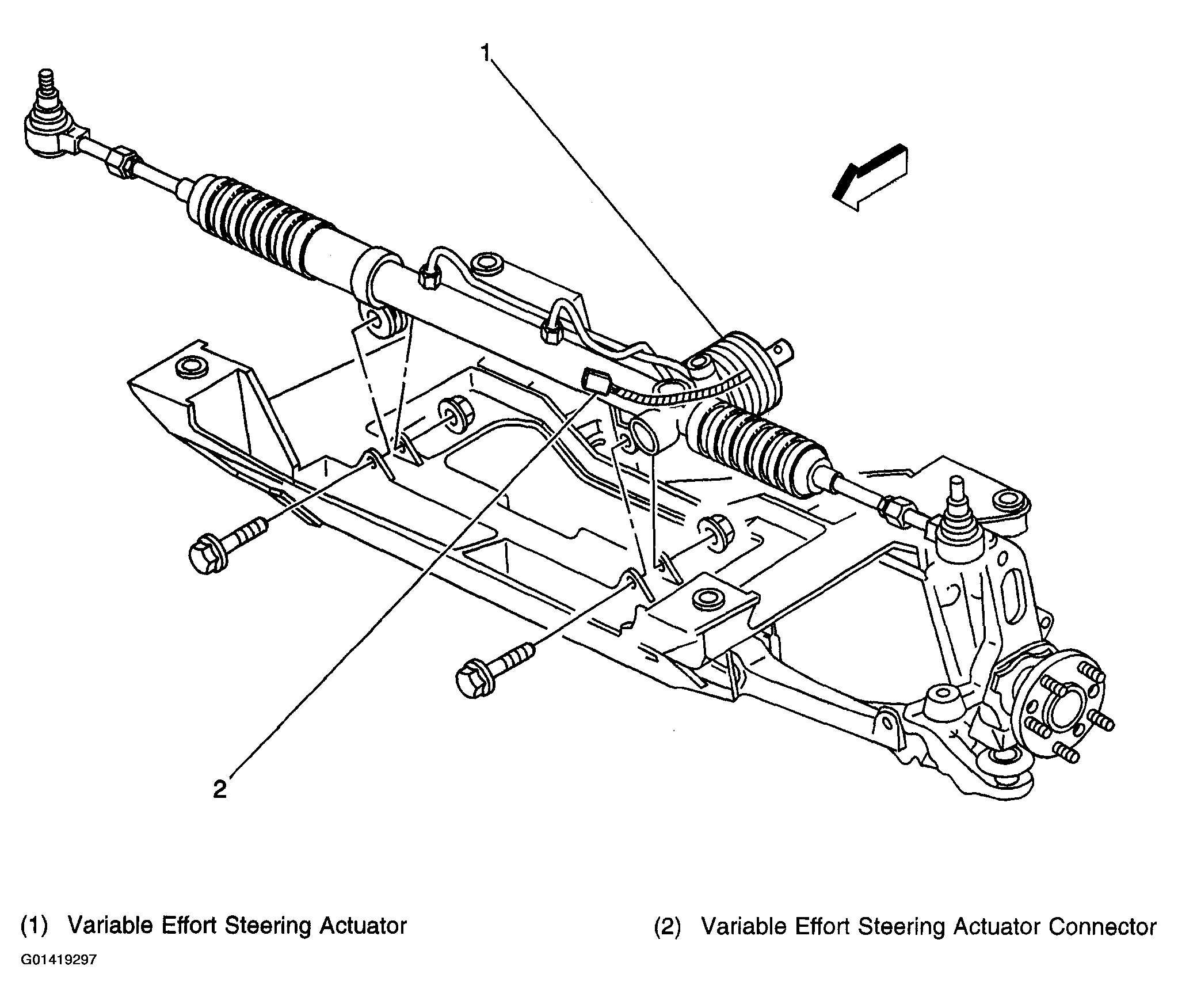

Fig 2: Exploded View Of Lower Front Of Vehicle
G01419297Courtesy of GENERAL MOTORS CORP.
