Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the lateral accelerometer (2).

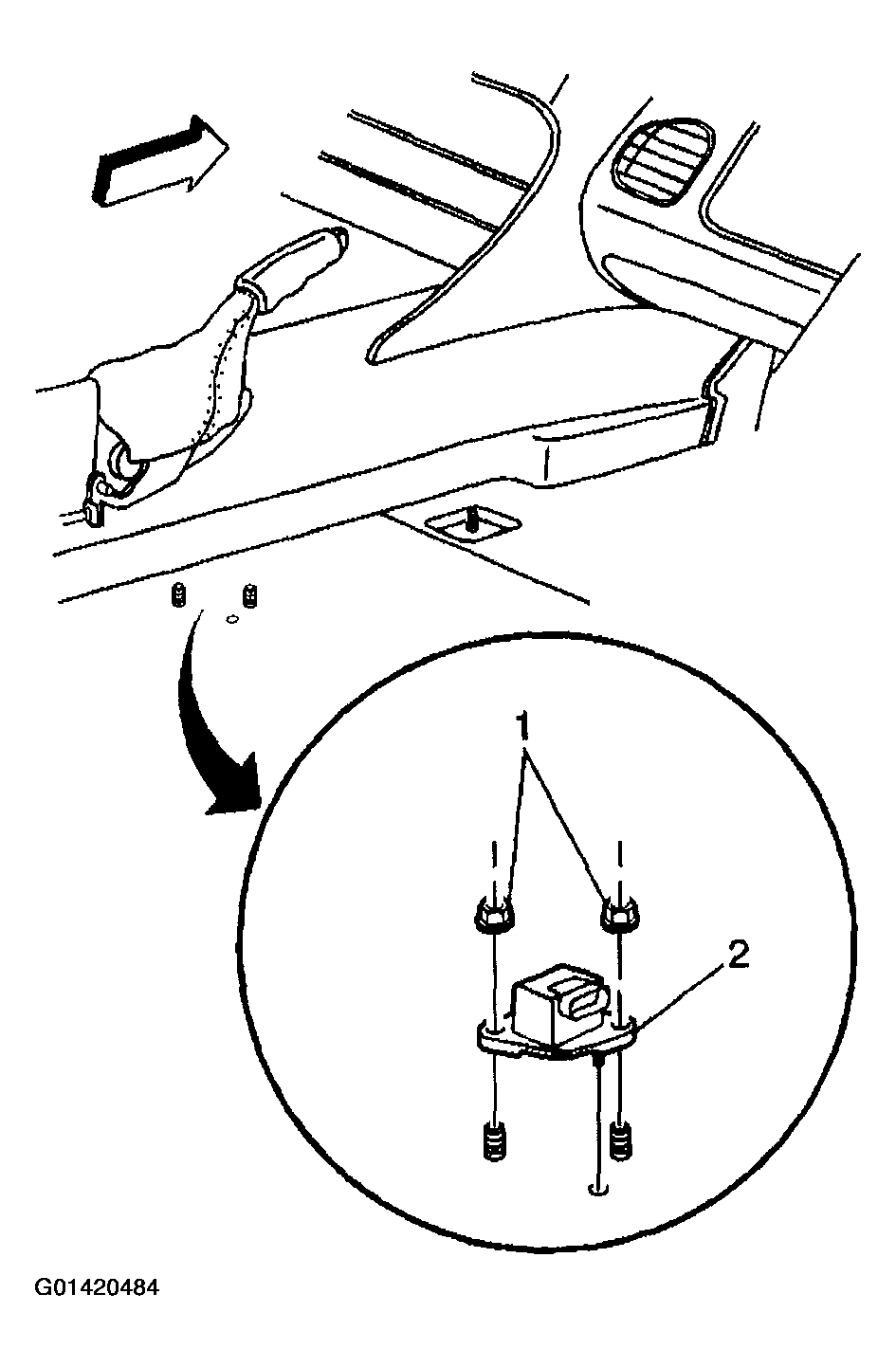

    Fig 1: Installing Lateral Accelerometer
    G01420484Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the two lateral accelerometer nuts (1) to 3 N.m (24 lb in).

  2. Connect the lateral accelerometer connector.
  3. Install the passenger seat. Refer to SEAT REPLACEMENT (POWER) or SEAT REPLACEMENT (MANUAL) in Seats.
  4. Turn the ignition switch to the ON position, engine off.
  5. Perform the DIAGNOSTIC SYSTEM CHECK - ABS  .
