Engine Electrical Component Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

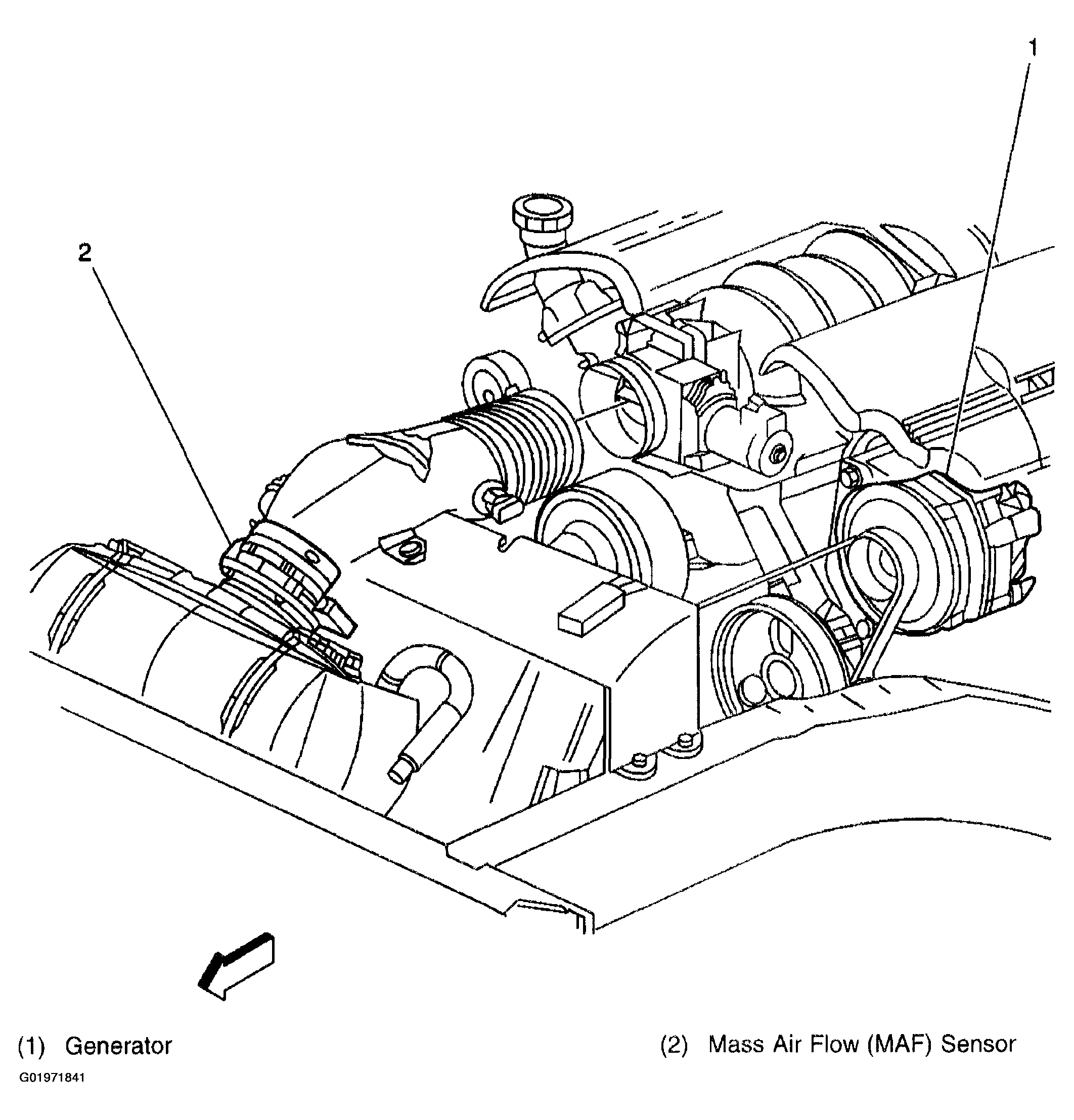

Fig 1: Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

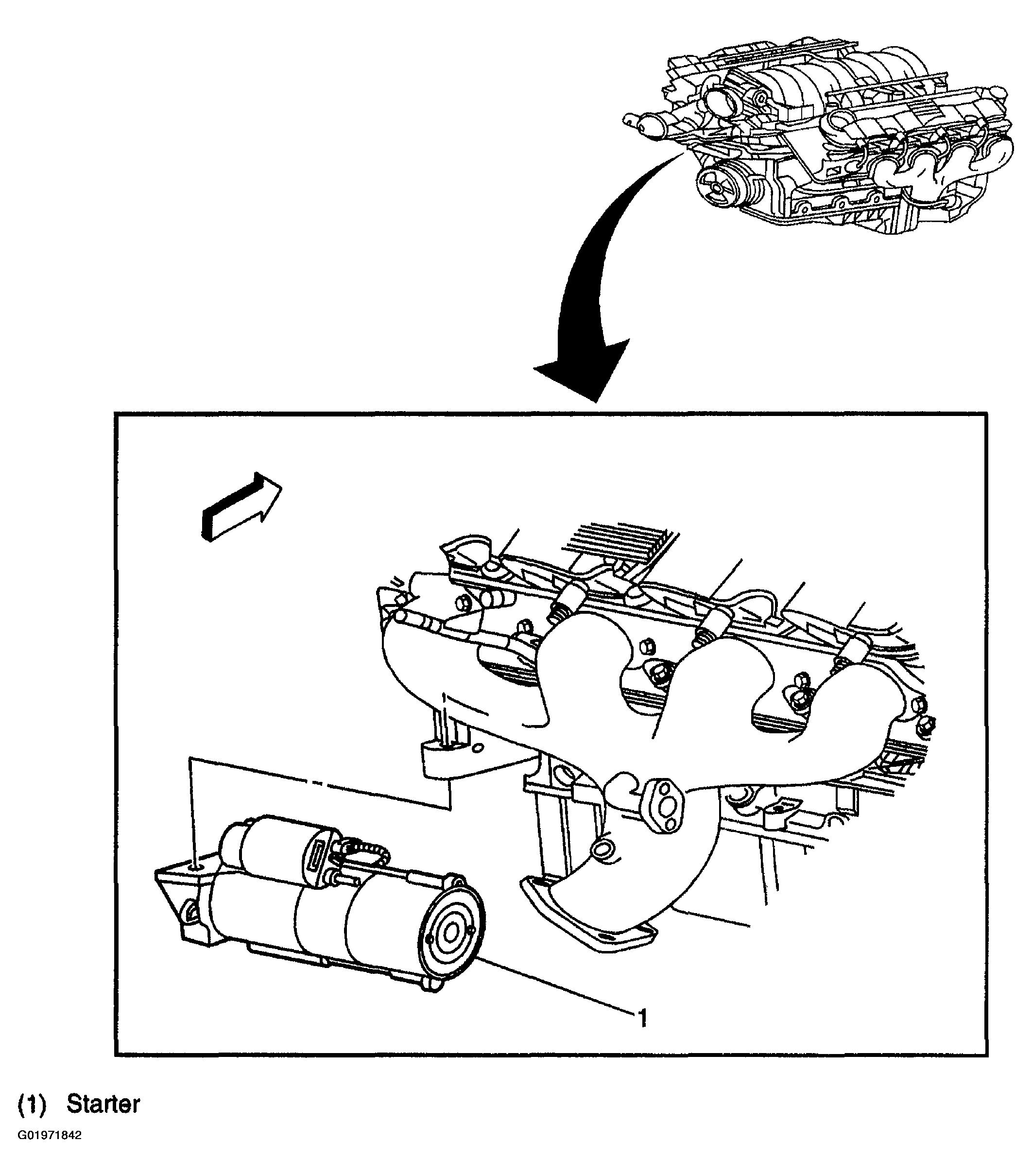

Fig 2: Right Side Of Engine

Courtesy of GENERAL MOTORS CORP.

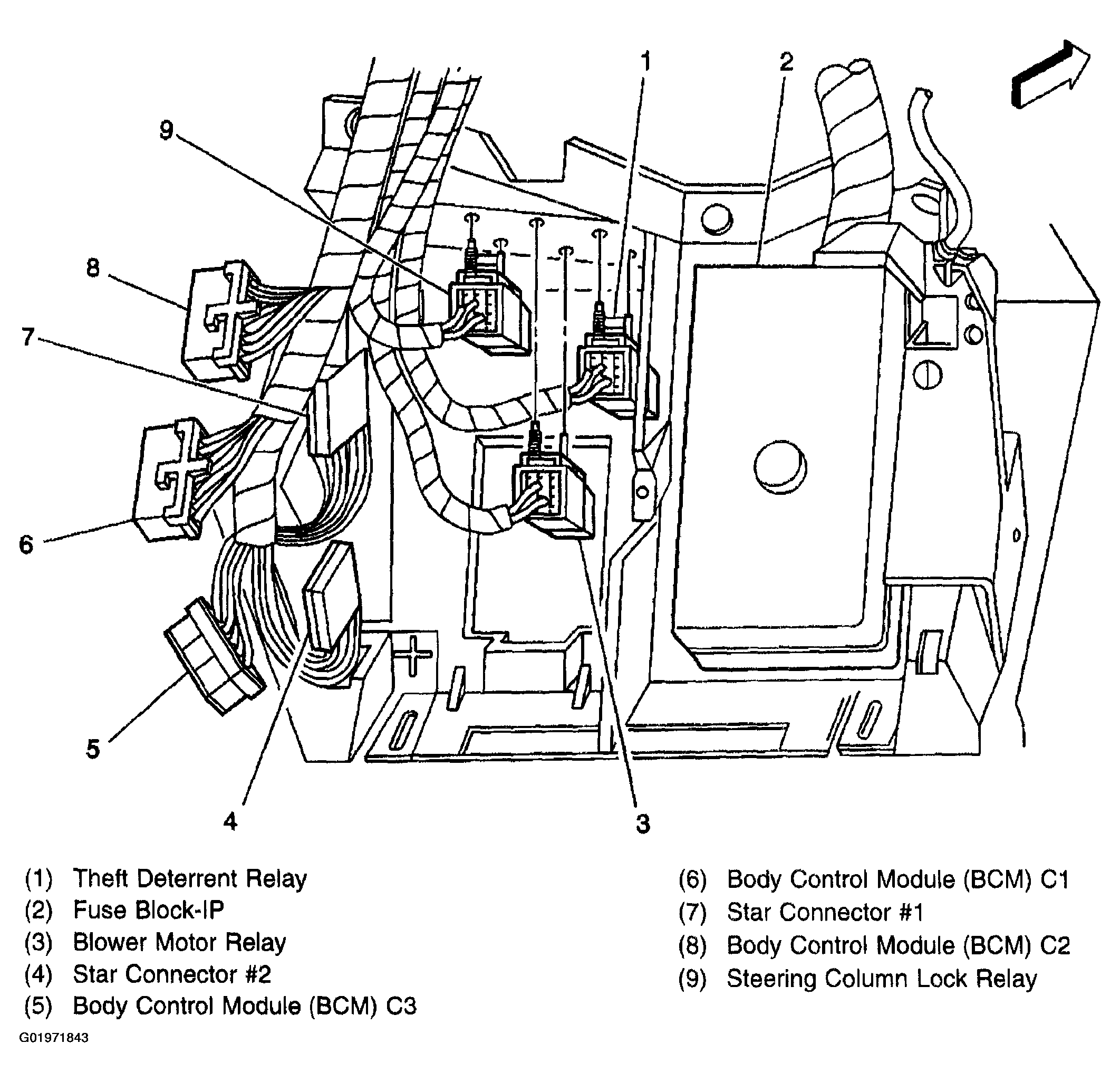

Fig 3: Under RH Side Of Dash

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Compartment Under The Battery

Courtesy of GENERAL MOTORS CORP.

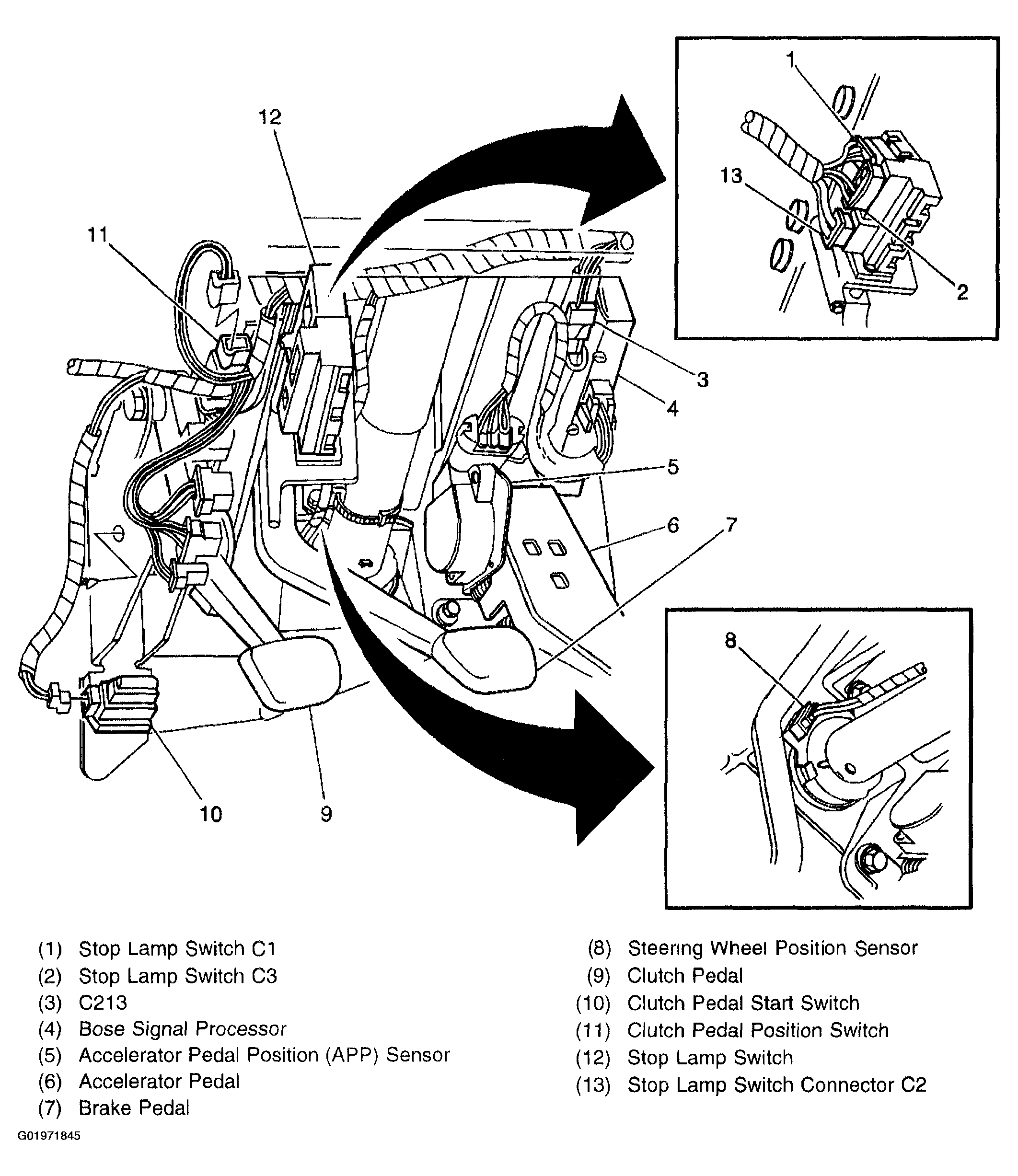

Fig 5: Under Side Of The Dash-Left

Courtesy of GENERAL MOTORS CORP.
