Data Link Communications Component Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

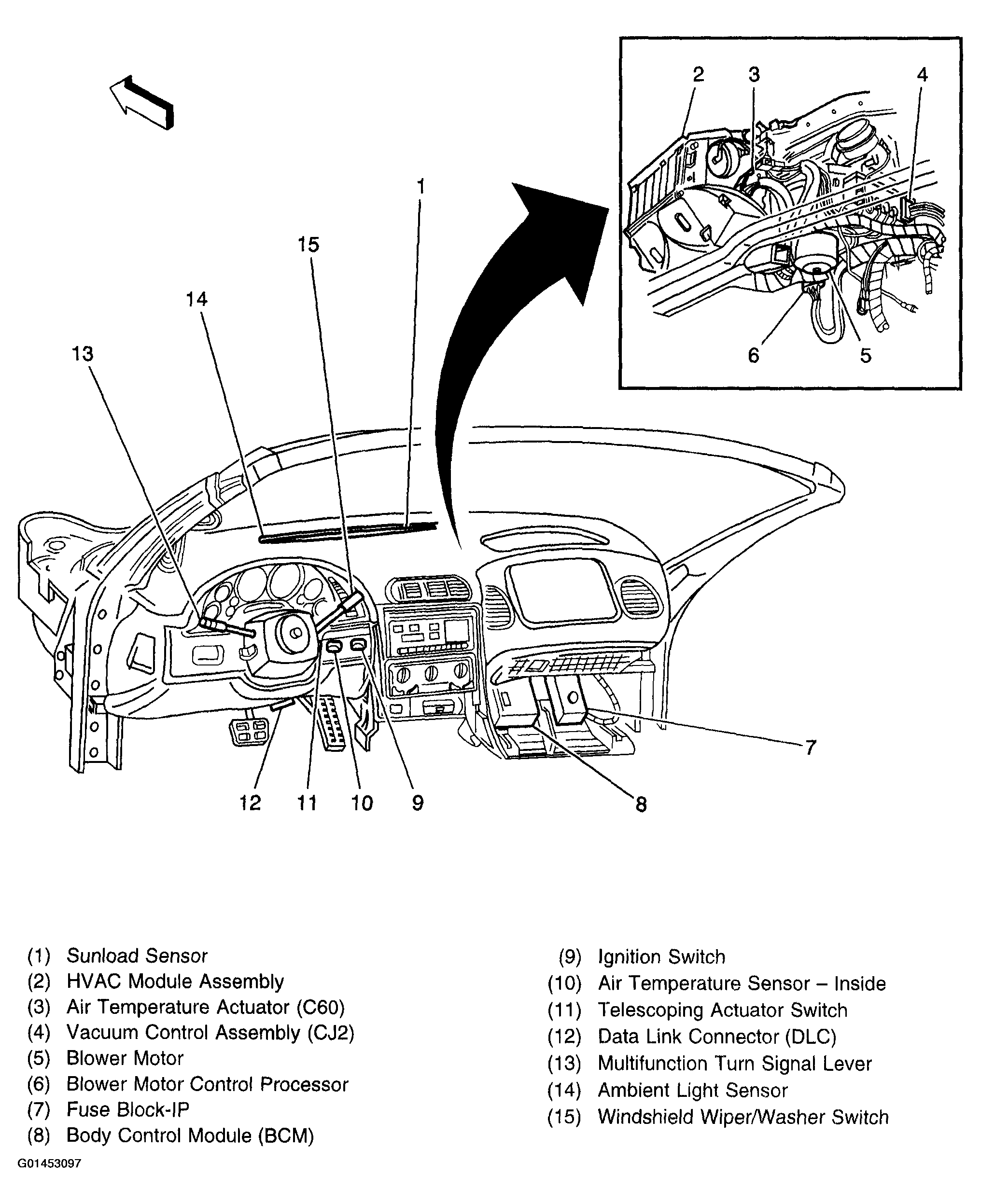

Fig 1: Instrument Panel
G01453097Courtesy of GENERAL MOTORS CORP.

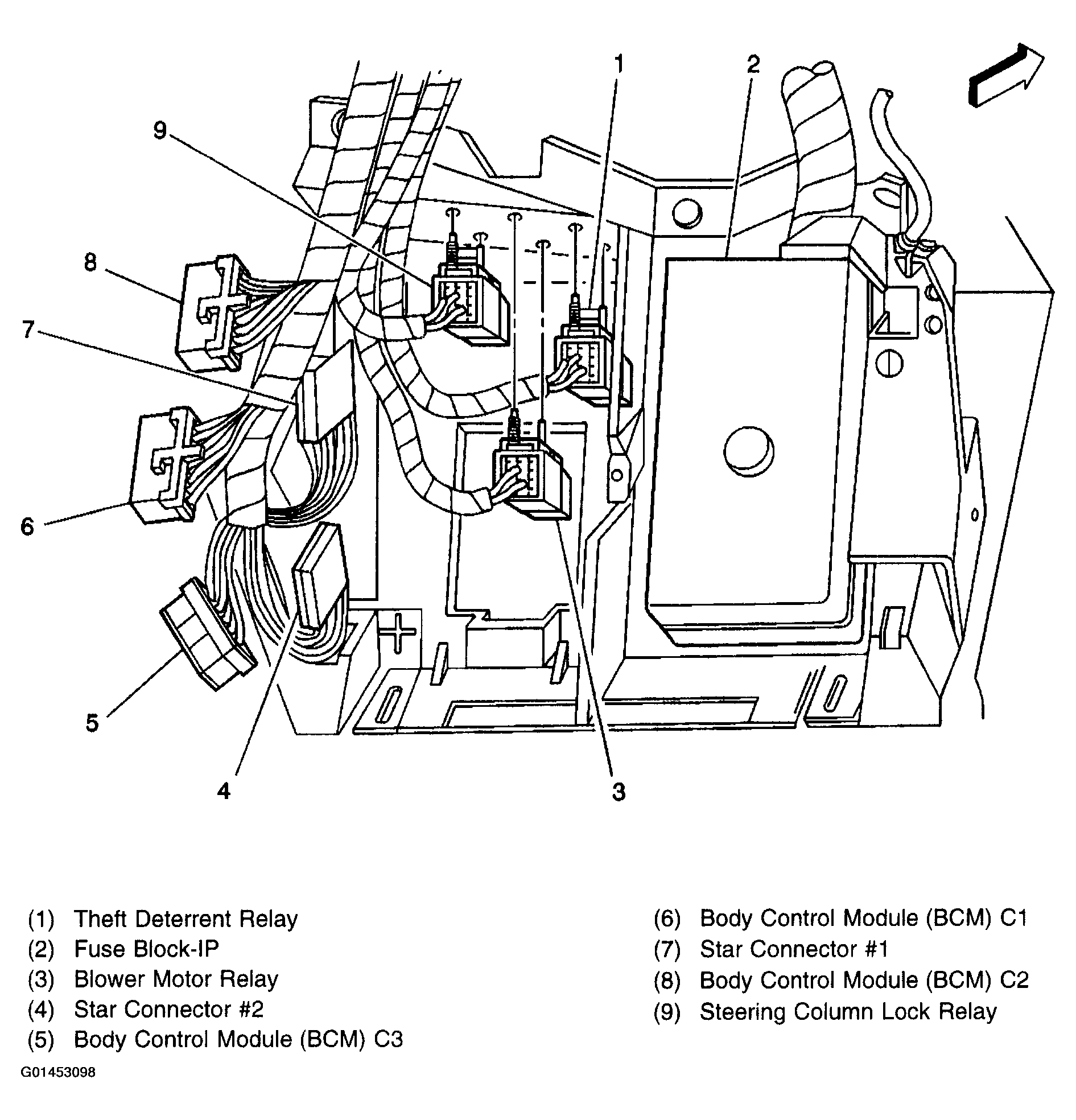

Fig 2: Under RH Side Of Dash
G01453098Courtesy of GENERAL MOTORS CORP.
