Entertainment Component Views
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

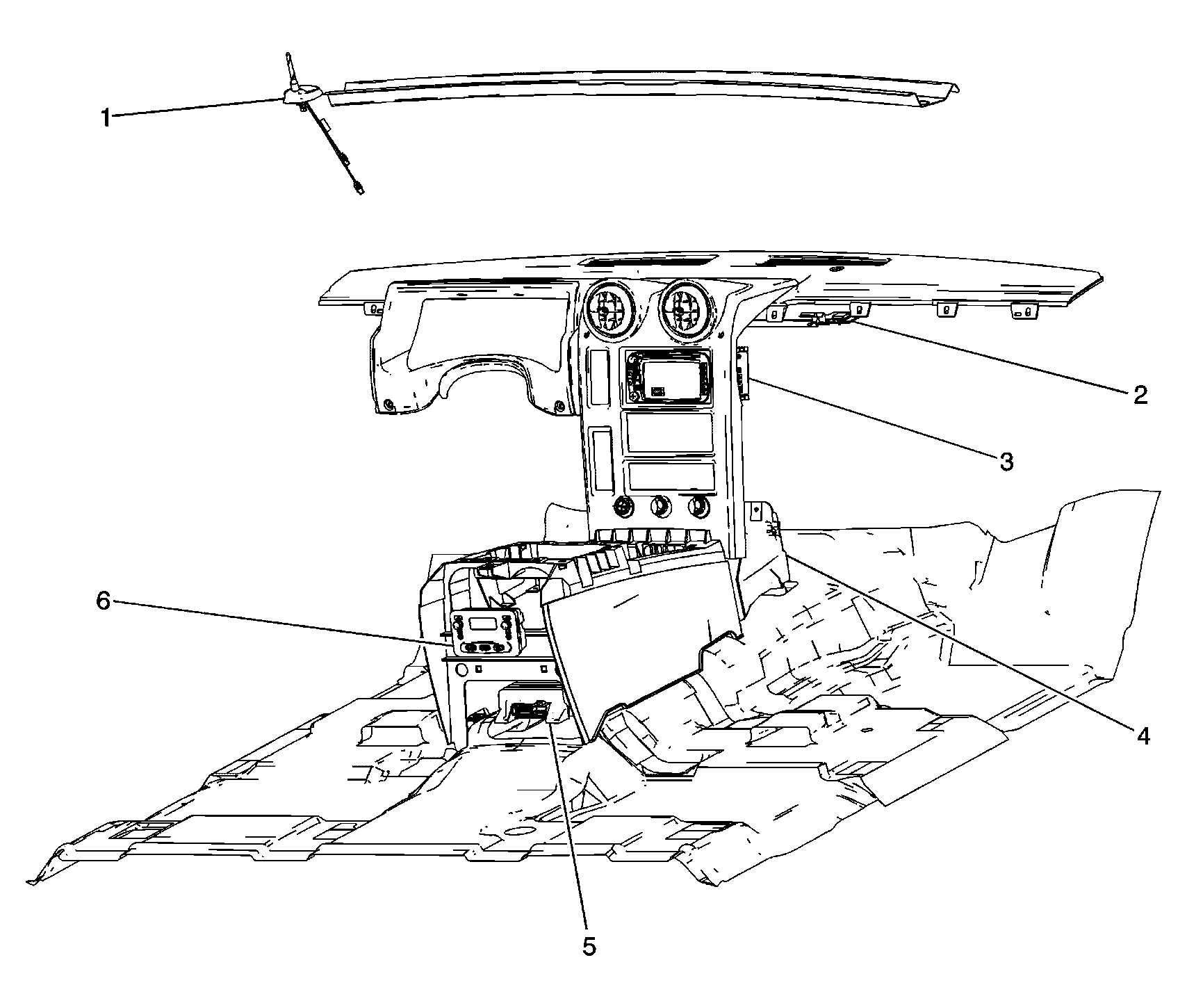

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cellular and Navigation Antenna |
| 2 |
Navigation Radio Antenna (UM8) |
| 3 |
Radio w/DVD |
| 4 |
Speaker - Front Subwoofer |
| 5 |
Audio Amplifier |
| 6 |
Rear Seat Audio (RSA) Controller |

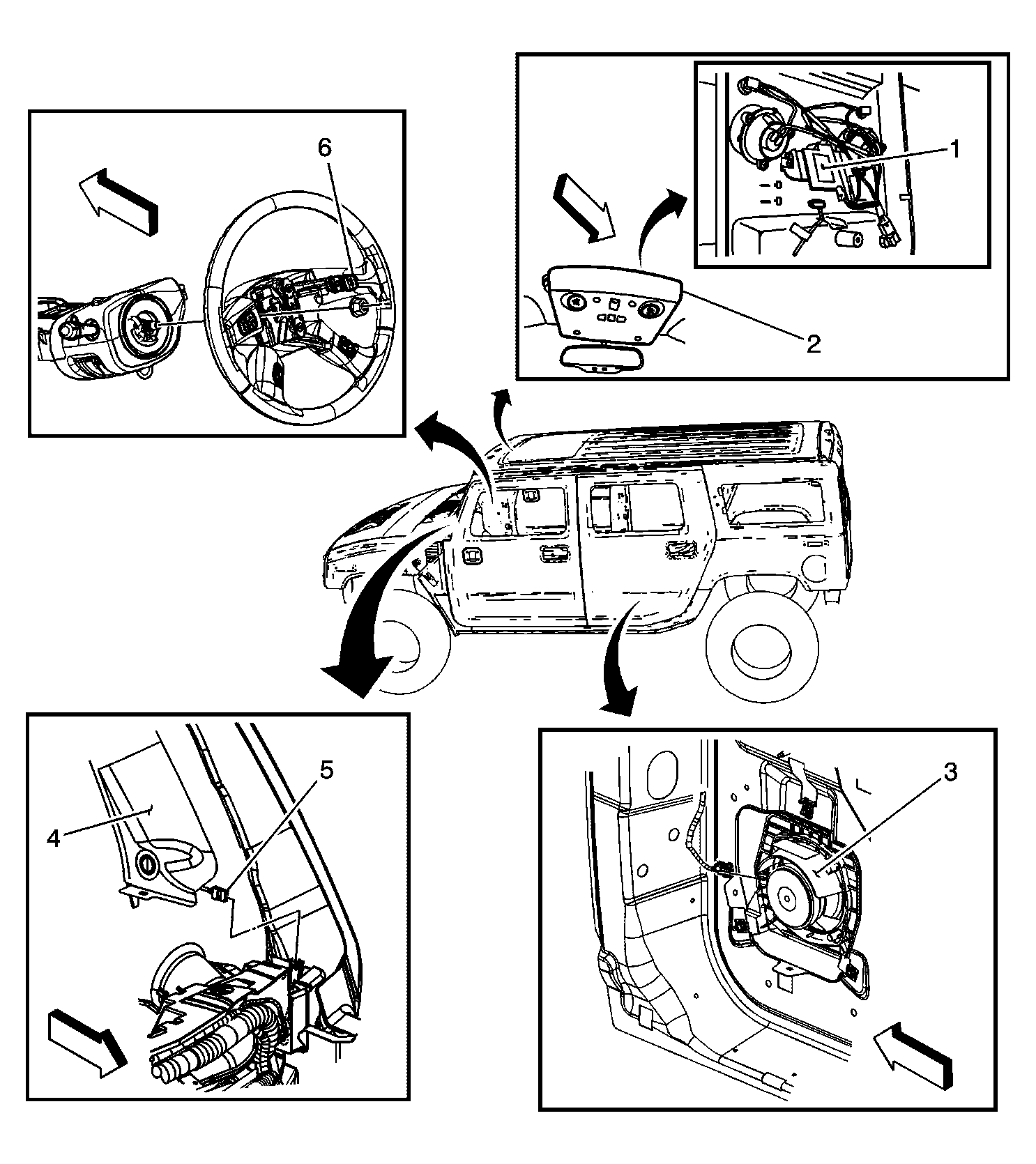

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Garage Door Opener |
| 2 |
Overhead Console |
| 3 |
Speaker - LR Door |
| 4 |
Windshield Side Garnish Molding |
| 5 |
Speaker - Left A Pillar Tweeter Connector |
| 6 |
Steering Wheel Controls |

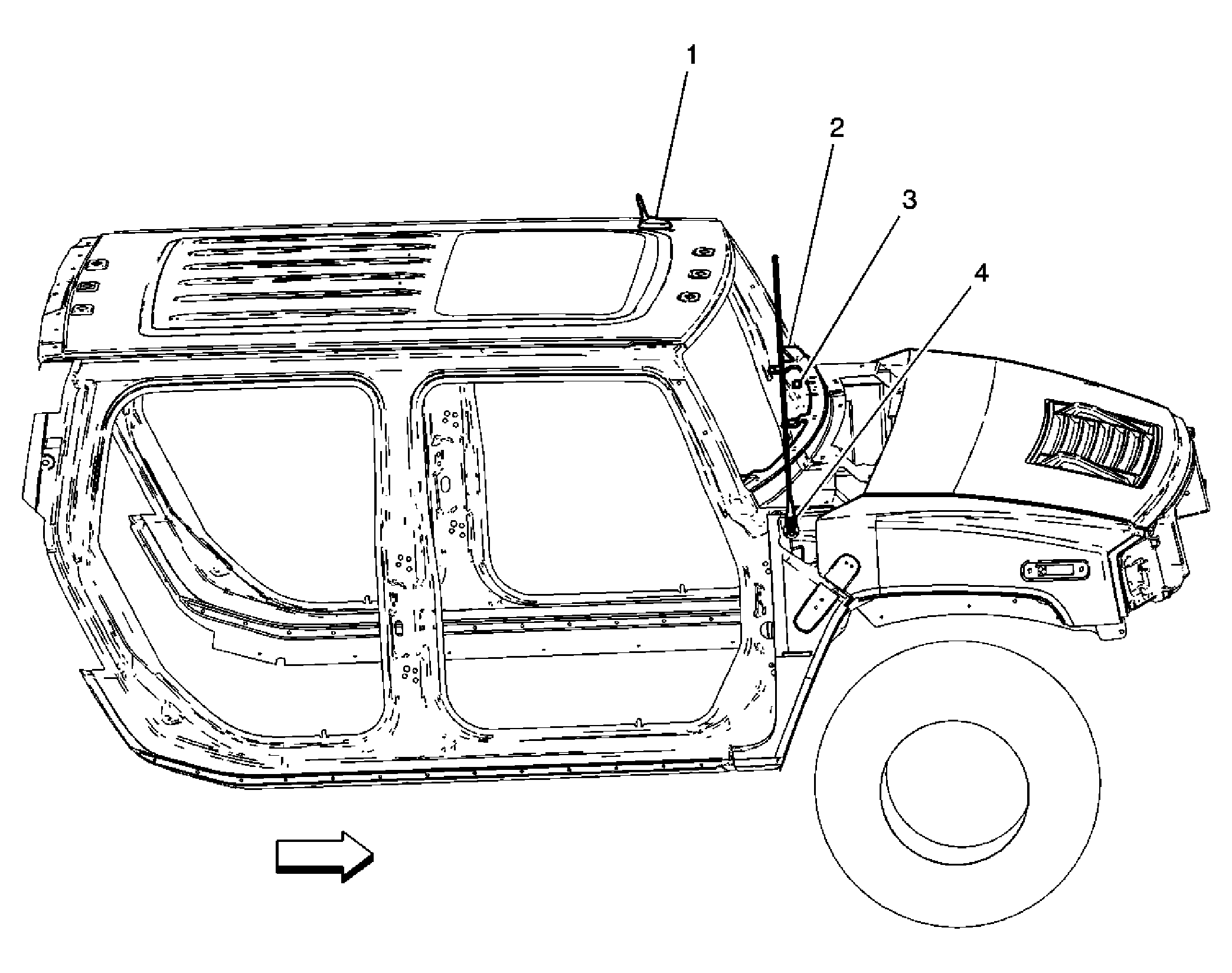

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cellular and Navigational Antenna |
| 2 |
Radio Antenna |
| 3 |
Global Positioning System (GPS) Antenna (I/P) |
