Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a flat bladed tool between the audio control and the console end panel in order to pry gently the audio control from the panel.

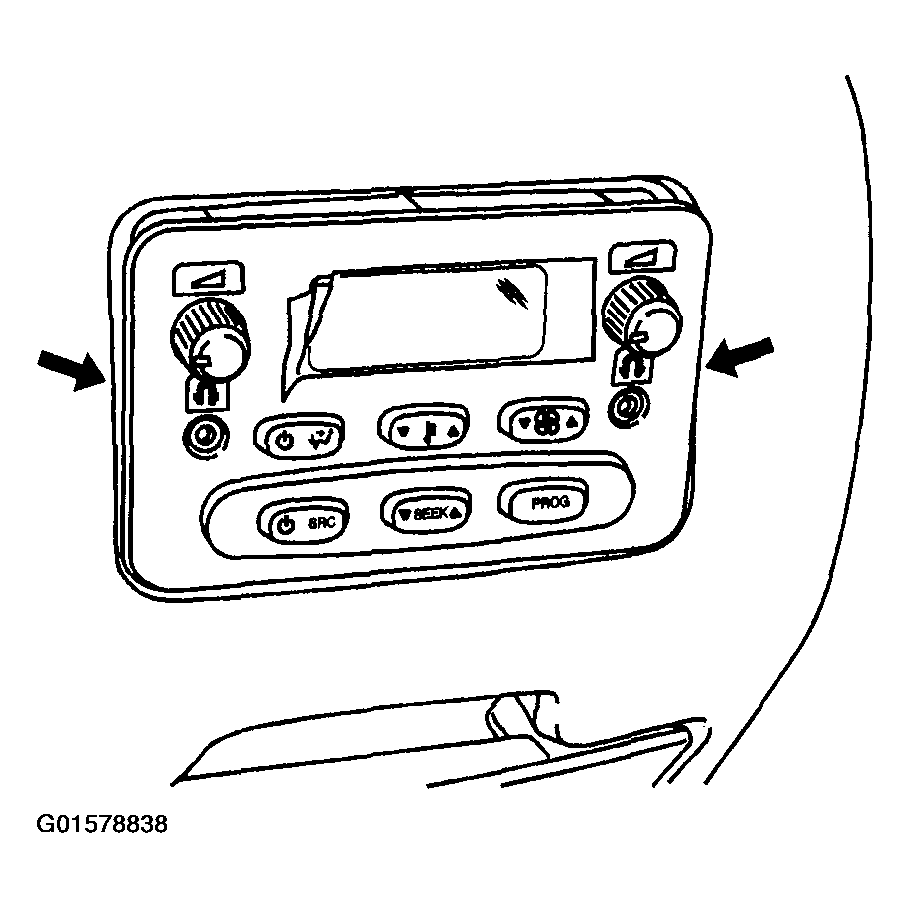

    Fig 1: Removing Audio Control
    G01578838Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors from the rear seat audio control.

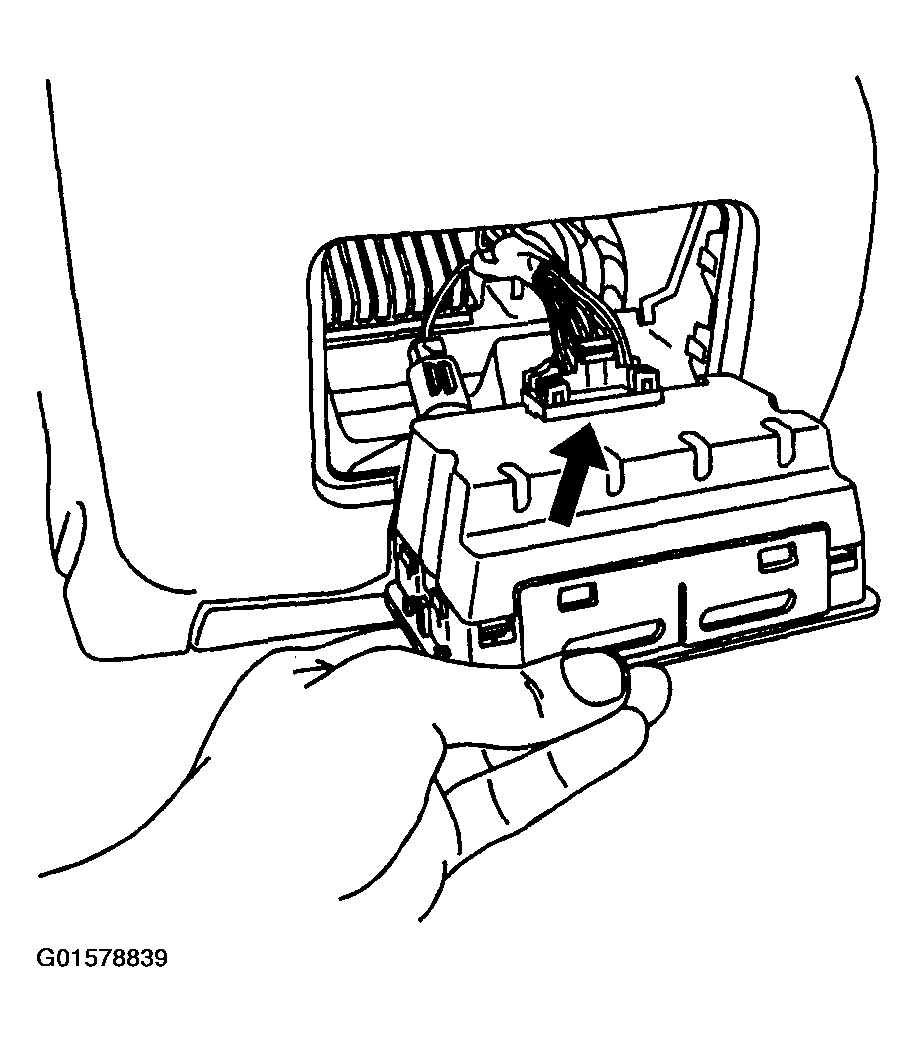

    Fig 2: Disconnecting Electrical Connectors
    G01578839Courtesy of GENERAL MOTORS CORP.
