Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the switch to the console panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the retaining screw.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Connect the electrical connector.
  4. Install the center console end panel. Refer to CENTER CONSOLE END PANEL REPLACEMENT .

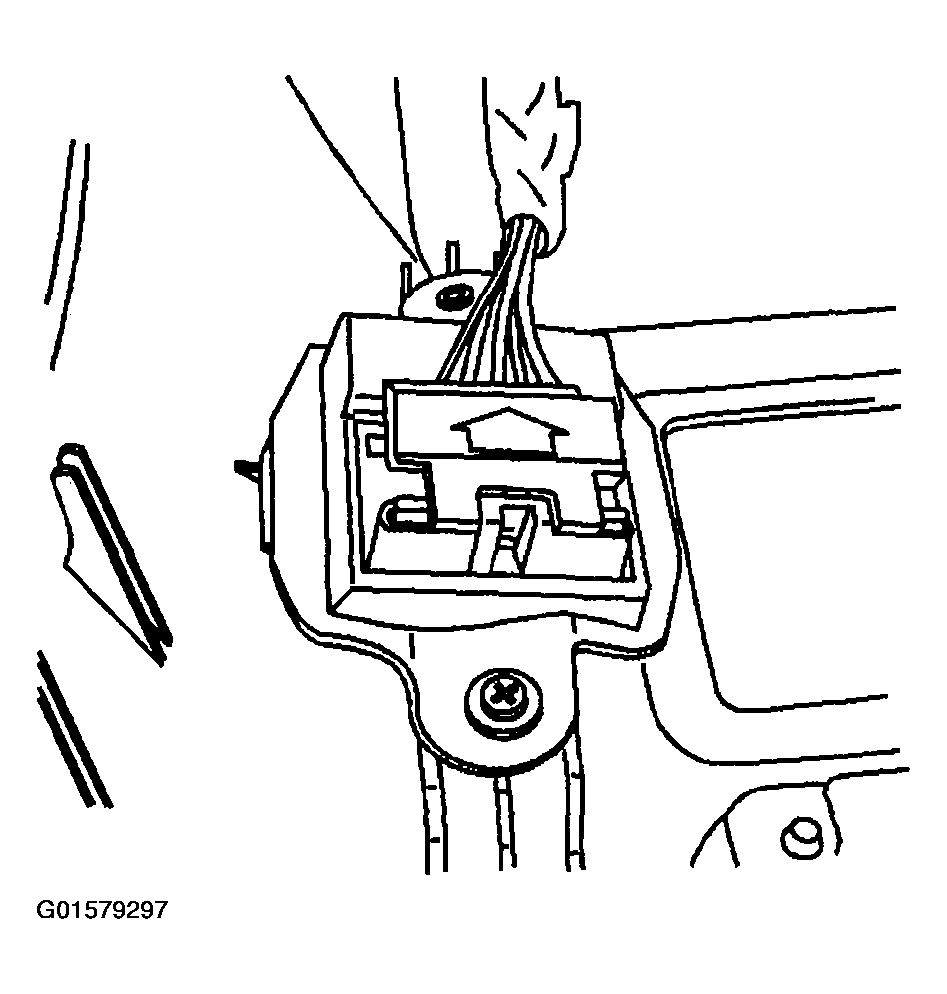

    Fig 1: Rear Heated Seat Switch
    G01579297Courtesy of GENERAL MOTORS CORP.
