Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the assist handle to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the assist handle screws.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  3. Install the center pillar trim panel. Refer to Garnish Molding Replacement-Center Pillar   .

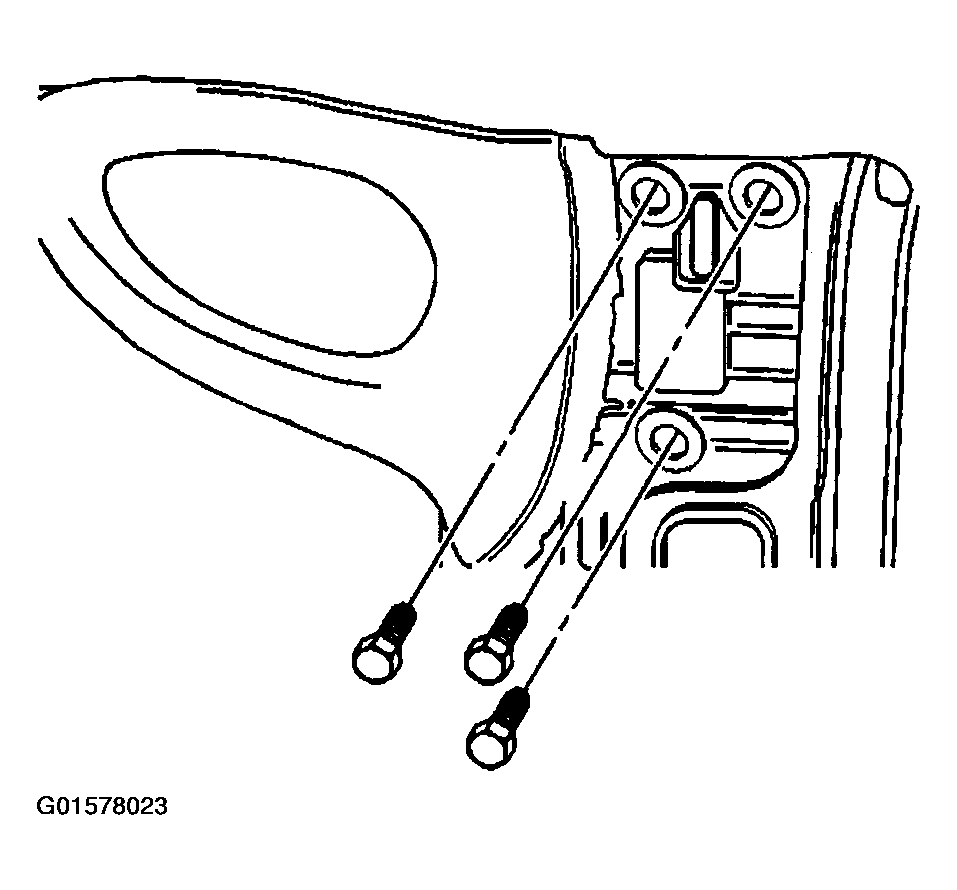

    Fig 1: Installing Assist Handle (Rear)
    G01578023Courtesy of GENERAL MOTORS CORP.
