Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center pillar trim panel. Refer to Garnish Molding Replacement-Center Pillar   .
  2. Remove the assist handle retraining screws.
  3. Remove the assist handle from the vehicle.

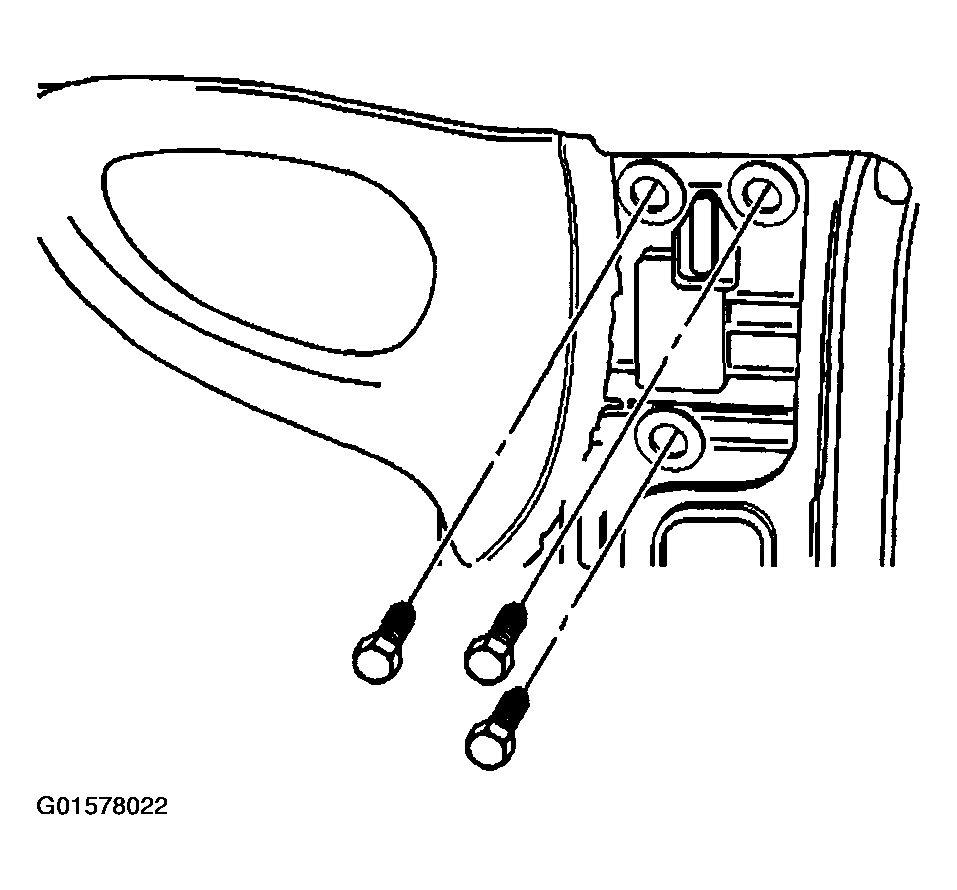

    Fig 1: Removing Assist Handle (Rear)
    G01578022Courtesy of GENERAL MOTORS CORP.
