Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window lower molding. Refer to Molding Replacement-Rear Window Lower   .
  2. Remove the trim panel. Refer to Trim Panel Replacement-Rear Quarter (Regular Cab)   or Trim Panel Replacement-Rear Quarter (Extended Cab)   or Trim Panel Replacement-Rear Quarter (Crew Cab)   .
  3. Remove the carpet retainers.
  4. Remove the carpet from the vehicle.

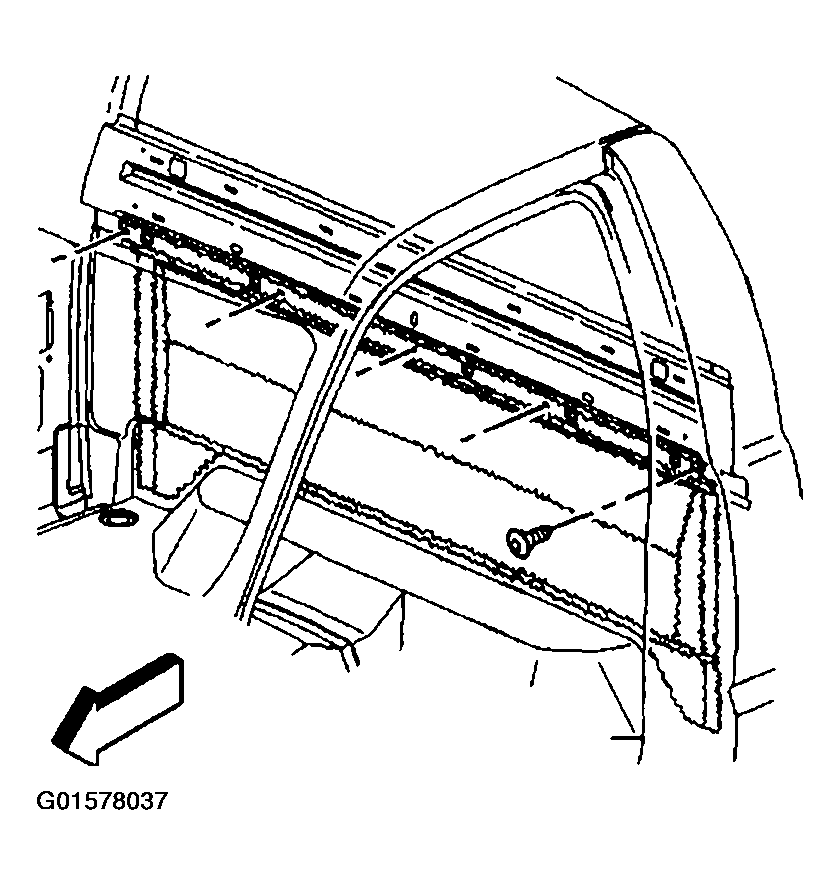

    Fig 1: Rear Panel Carpet
    G01578037Courtesy of GENERAL MOTORS CORP.
