Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

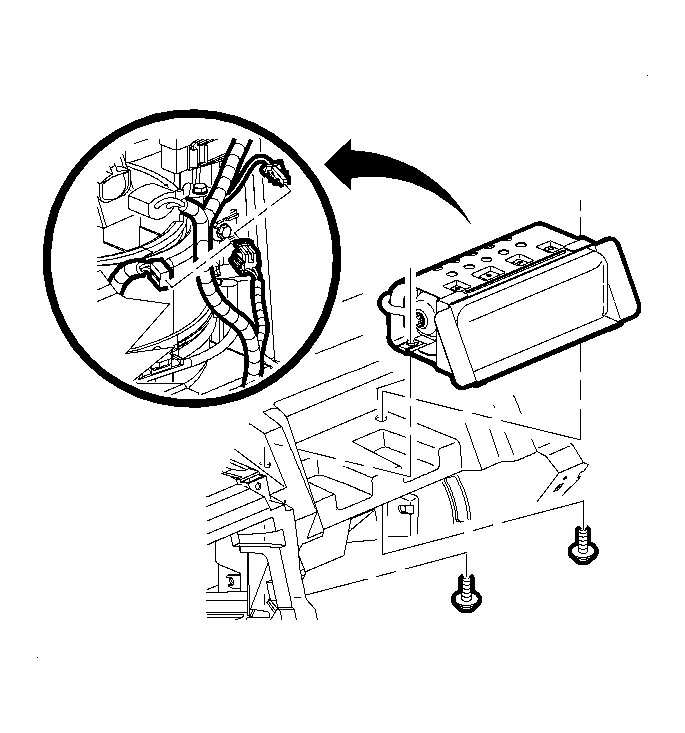

    Fig 1: Module & I/P Carrier Retainers
    GM977285Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The harness exits from the module on the right side of the vehicle.
  1. Insert the module into the I/P carrier. Snap the module into place with 2 retainers.
    2. NOTE: Refer to Fastener Notice .
    IMPORTANT: Route the harness to the module between the round guide pin and the module mounting ear.
  2. Install the module fasteners.

    Tighten:  Tighten the fasteners to 10 N.m (89 lb in).

  3. Install the passenger side air outlet duct and the fastener.

    Tighten:  Tighten the fastener to 2.5 N.m (22 lb in).

  4. Install the radio. Refer to Radio Replacement .
  5. Install the I/P top cover. Refer to Instrument Panel Upper Trim Panel Replacement .
  6. Enable the SIR system. Refer to SIR Disabling and Enabling .
  7. After replacing the module, deploy the old module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .
