Mirror Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Instrument Panel Cluster (IPC) |
| 2 |
Windshield Wiper/Washer Switch |
| 3 |
I/P Dimmer Control |
| 4 |
Hazard Switch |
| 5 |
Inflatable Restraint Front Passenger Presence System (PPS) Indicator |
| 6 |
Fog Lamp (T96) or Traction Control Switch (NW9) |
| 7 |
Ambient Light Sensor |
| 8 |
Inflatable Restraint I/P Module |
| 9 |
HVAC Control Module |
| 10 |
Cigar Lighter (DT4) |
| 11 |
Window Switch - Passenger |
| 12 |
Heated Seat Switches |
| 13 |
Window Switch - Driver |
| 14 |
Outside Rearview Mirror Switch (D22/DG7) |
| 15 |
Radio |
| 16 |
Steering Wheel Control Switch - Right (Radio) |
| 17 |
Inflatable Restraint Steering Wheel Module |
| 18 |
Steering Wheel Control Switch - Left (Cruise Control) |
| 19 |
Turn Signal/Multifunction Switch |

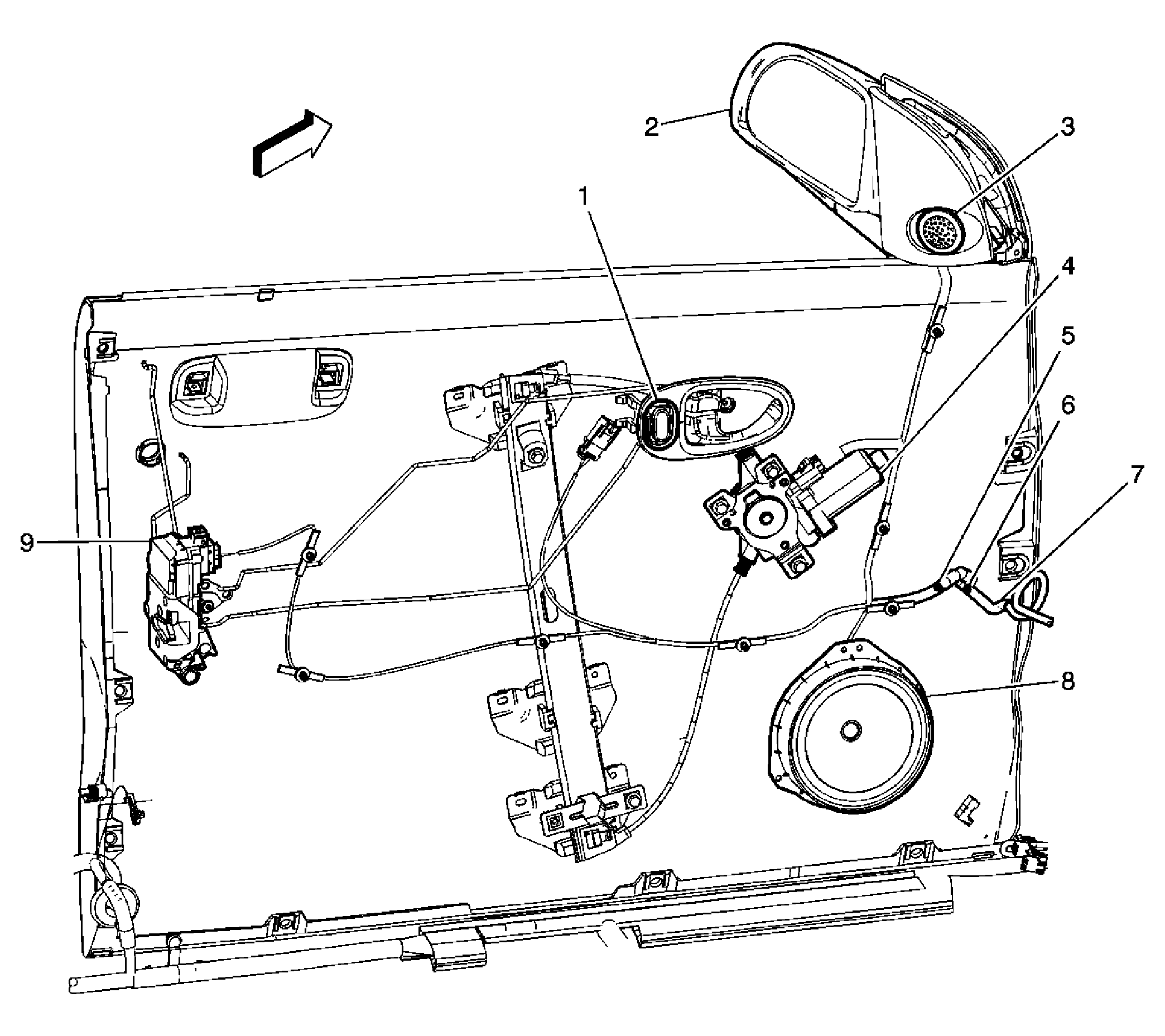

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Door Lock Switch - Driver |
| 2 |
Outside Rearview Mirror - Driver |
| 3 |
Speaker - LF (Tweeter) (UW6/WBM) |
| 4 |
Window Motor - LF |
| 5 |
S500 |
| 6 |
S501 |
| 7 |
Body Harness |
| 8 |
Speaker - LF |
| 9 |
Door Latch - Driver |

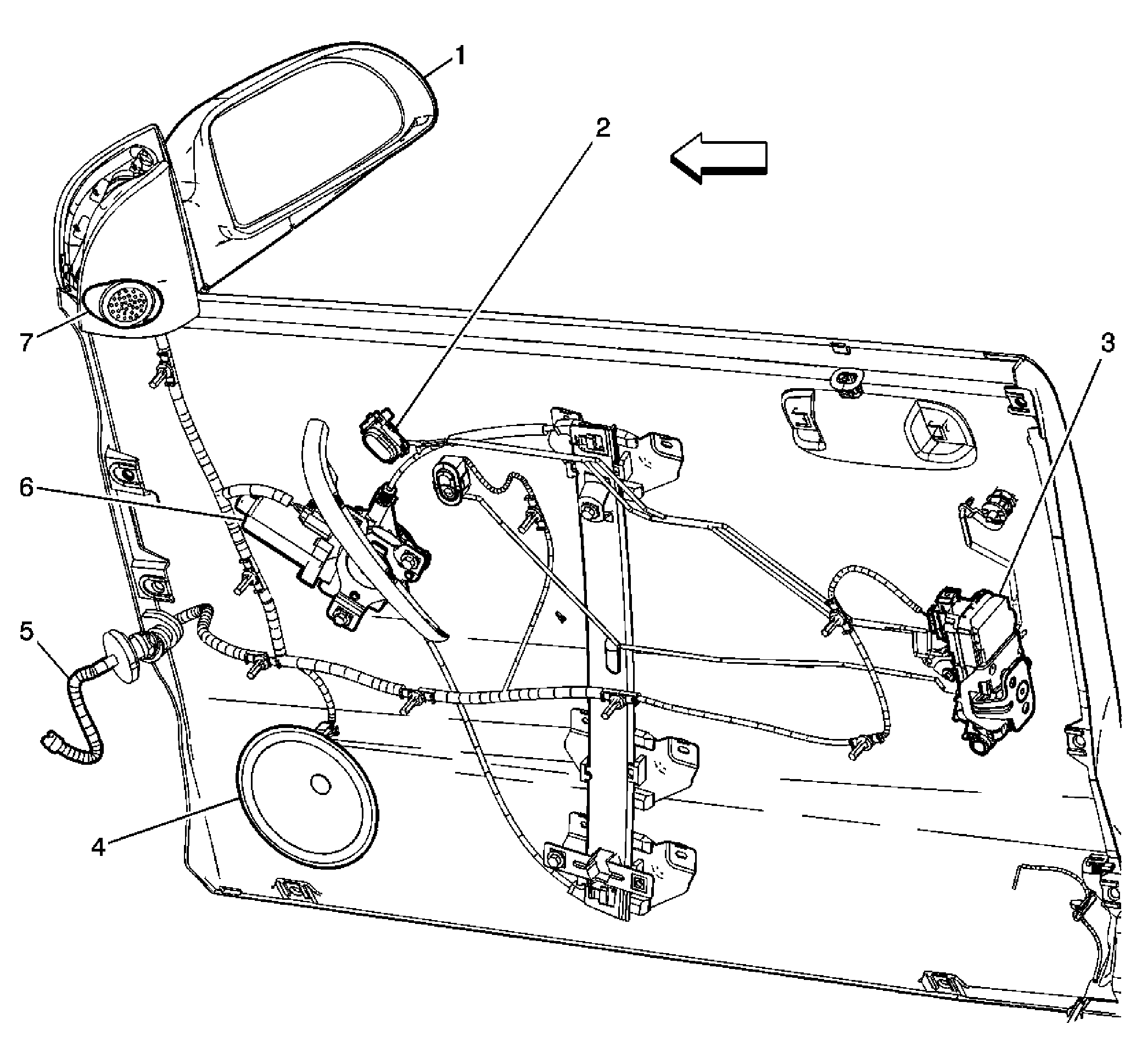

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Outside Rearview Mirror - Passenger |
| 2 |
Door Lock Switch - Front Passenger |
| 3 |
Door Latch - Front Passenger |
| 4 |
Speaker - LF |
| 5 |
Body Harness |
| 6 |
Window Motor - Front Passenger |
| 7 |
Speaker - LF (Tweeter) (UW6/WBM) |
