Sunroof Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

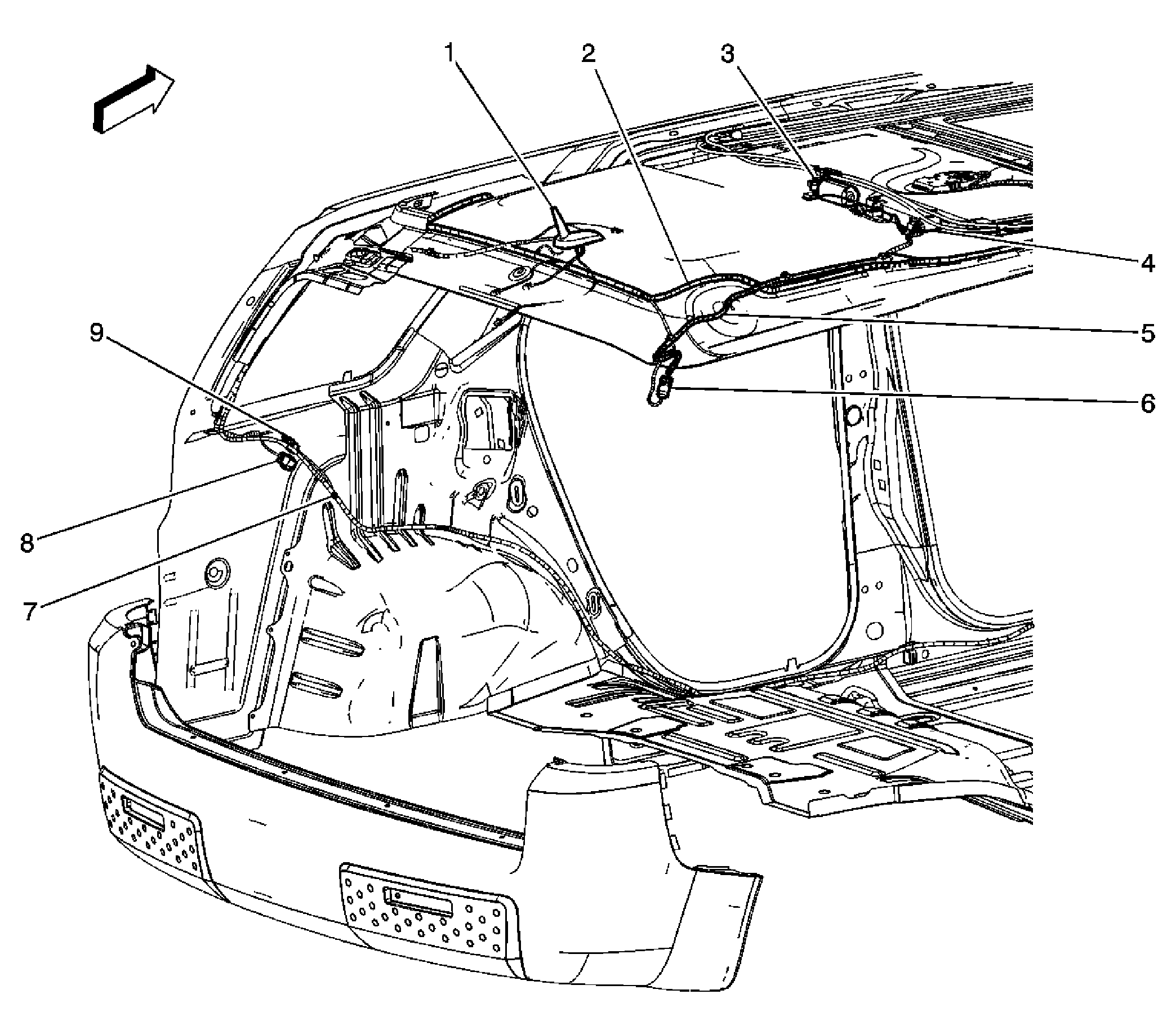

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cellular/Navigational/Digital Antenna |
| 2 |
Headliner Harness |
| 3 |
Sunroof Motor (CF5) |
| 4 |
Sunroof Control Module (CF5) |
| 5 |
Sunroof Harness |
| 6 |
C411 (CF5) Headliner Harness to Sunroof Harness |
| 7 |
Instrument Panel (I/P) Harness |
| 8 |
C410 I/P Harness to Headliner Harness |
| 9 |
C412 I/P Harness to Headliner Harness |

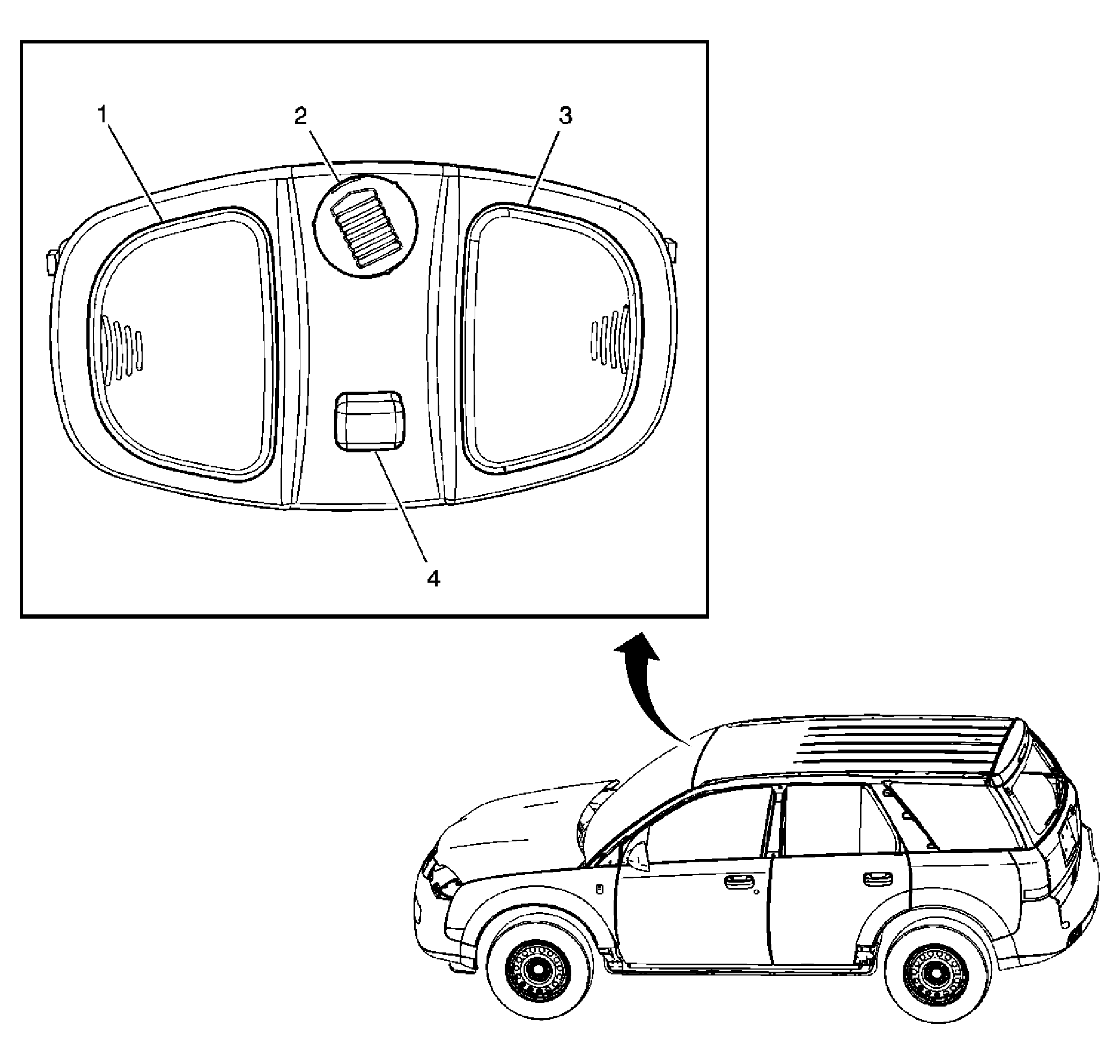

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Courtesy/Map Lamp - Left |
| 2 |
Cellular Telephone Microphone (UE1) |
| 3 |
Courtesy/Map Lamp - Right |
| 4 |
Sunroof Switch (CF5) |
