Sunroof Control Module C1

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

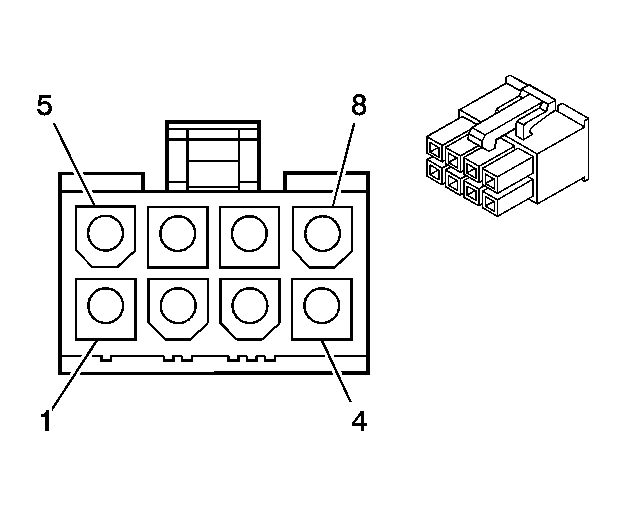

Fig 1: Sunroof Control Module C1 Connector End Views
GM783213Courtesy of GENERAL MOTORS CORP.
Sunroof Control Module C1 Connector Parts Information

Connector Part Information
  • OEM: 39-01-2080
  • Service: See Catalog
  • Description: 8-Way F (WH)
Sunroof Control Module C1 Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 YE 133 Low Reference
2-3 - - Not Used
4 D-GN 2074 Sunroof Switch Express Signal
5 D-BU 128 Low Reference
6 BN 100 Sunroof Switch Open Signal
7 OG/BK 144 Sunroof Switch Open Vent Signal
8 RD 132 Sunroof Limit Switch Soft Stop Signal
