Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Disconnecting/Connecting Electrical Connector To Sunroof Control Module
    GM964562Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the sunroof control module.

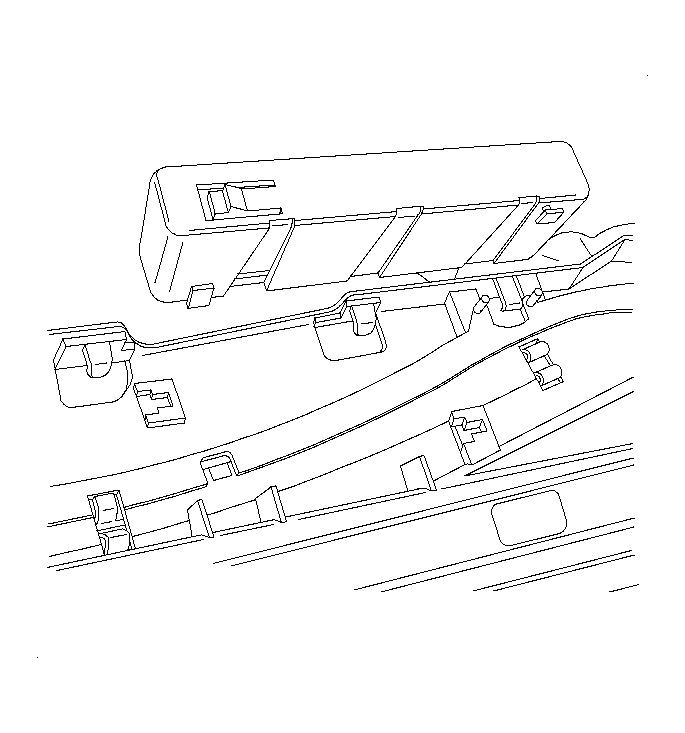

    2. Fig 2: Inserting Control Module Tabs
    GM964601Courtesy of GENERAL MOTORS CORP.
  2. Insert the control module tabs into the sunroof module slots.
  3. Slide the sunroof express module away from the sunroof motor until it is fully engaged.
  4. Verify the proper operation of the sunroof before securing the headliner.
  5. Install the headliner. Refer to Headlining Trim Panel Replacement .
  6. Refer to Control Module References for programming and setup information.
