Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner. Refer to Headlining Trim Panel Replacement .

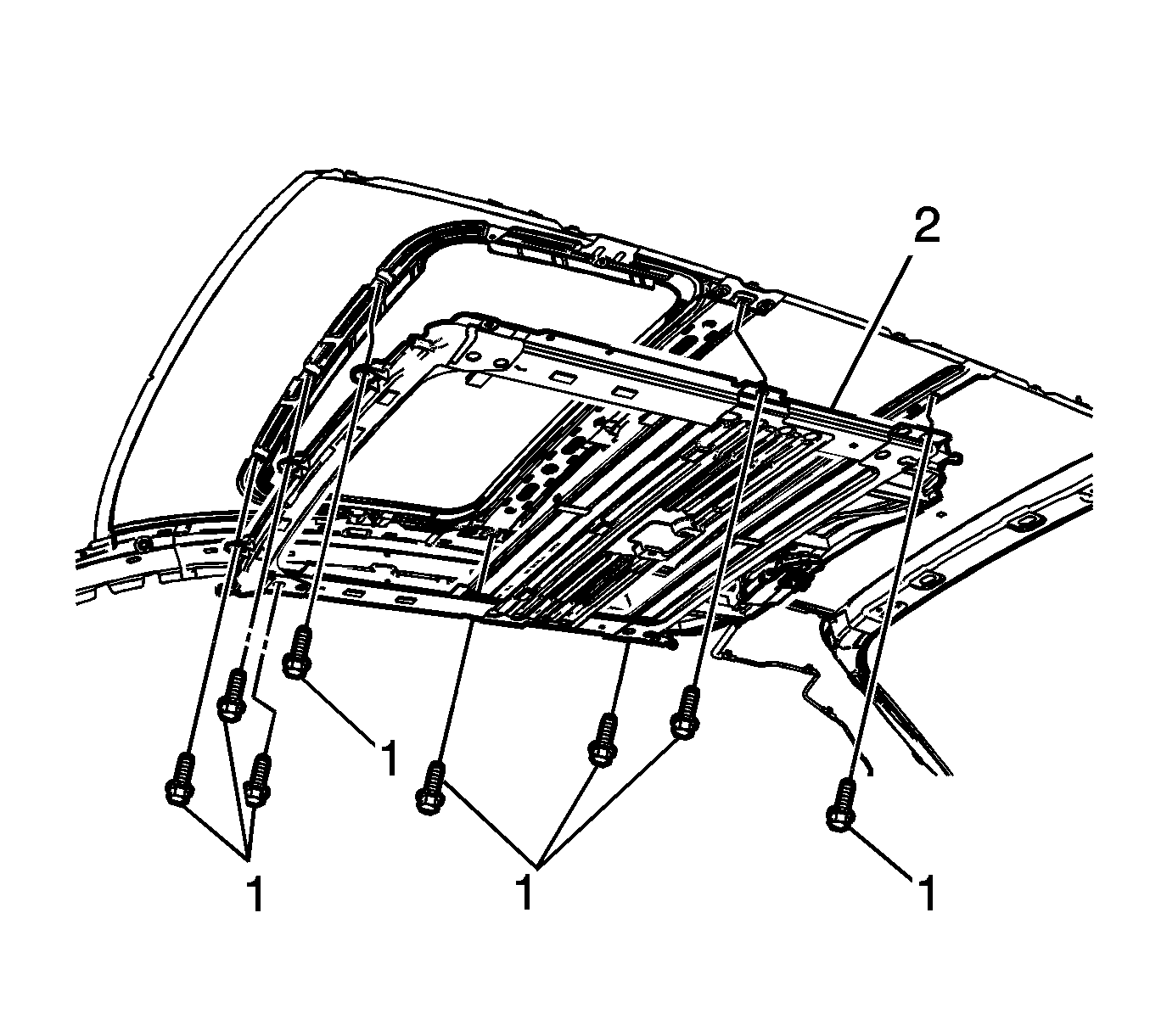

    2. Fig 1: View Of Sunroof Module Assembly
    GM977375Courtesy of GENERAL MOTORS CORP.
  2. Cycle the glass panel to the rear.
  3. Disconnect the electrical connector from the sunroof module.
  4. Remove the front and rear sunroof drain hoses. Refer to Sunroof Housing Front Drain Hose Replacement  and Sunroof Housing Rear Drain Hose Replacement .
  5. Remove the bolts that secure the sunroof module to the roof.
  6. With an assistant, lower and remove the sunroof module assembly.
