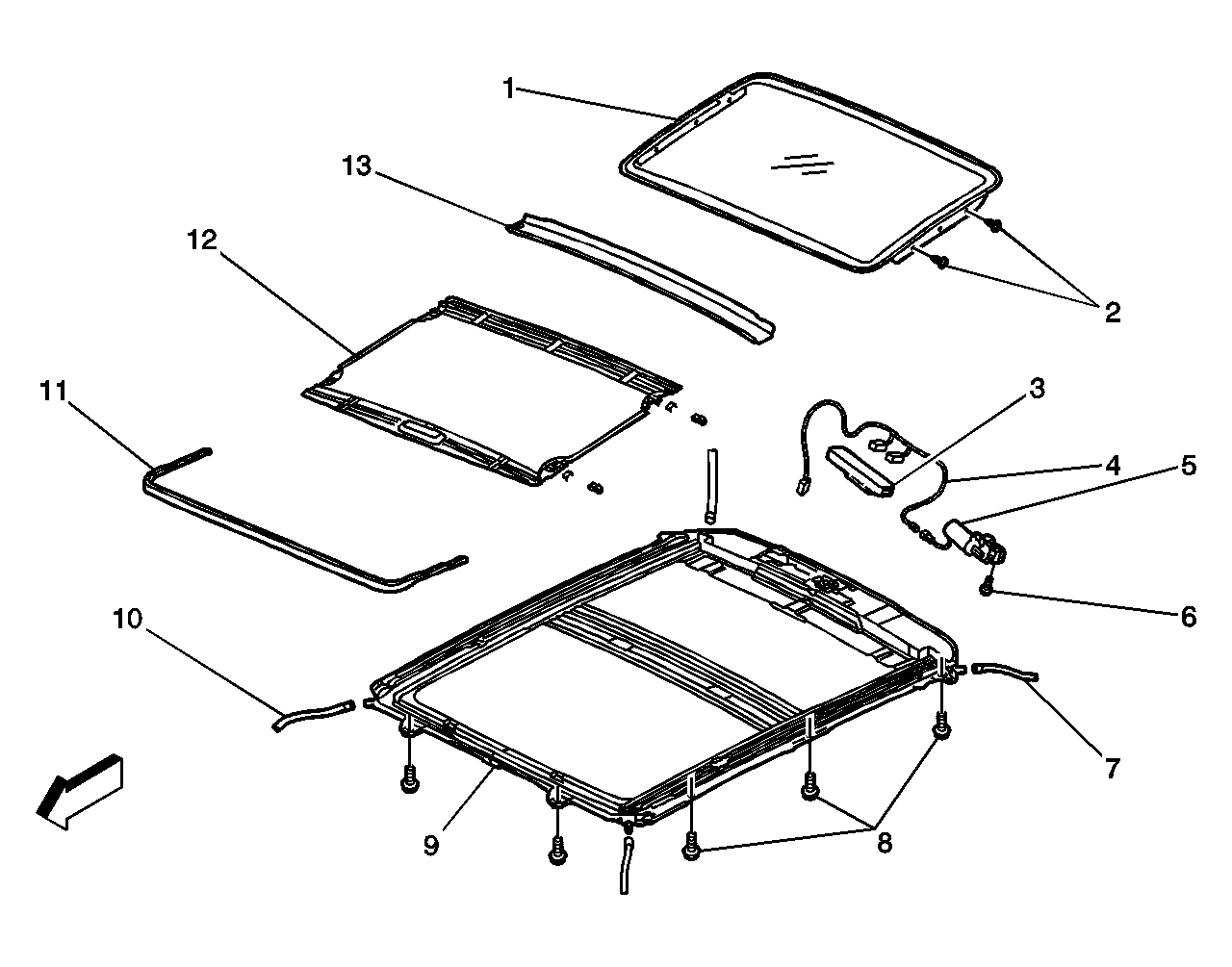

Power Sunroof Disassembled View
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Sunroof Window |
| 2 | Sunroof Window Screws |
| 3 | Sunroof Control Module |
| 4 | Sunroof Wiring Harness |
| 5 | Sunroof Motor/Actuator |
| 6 | Sunroof Motor/Actuator Bolts |
| 7 | Sunroof Drain Hose-Rear |
| 8 | Sunroof Module Assembly Bolts |
| 9 | Sunroof Module Assembly |
| 10 | Sunroof Drain Hose-Front |
| 11 | Sunroof Air Deflector |
| 12 | Sunroof Sunshade Panel |
| 13 | Sunroof Drain Channel |
