Cooling System Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Ambient Air Temperature Sensor (DH3) |
| 2 |
Cooling Fan |
| 3 |
Daytime Running Lamps (DRL) Resistor |
| 4 |
G101 |
| 5 |
SP101 |

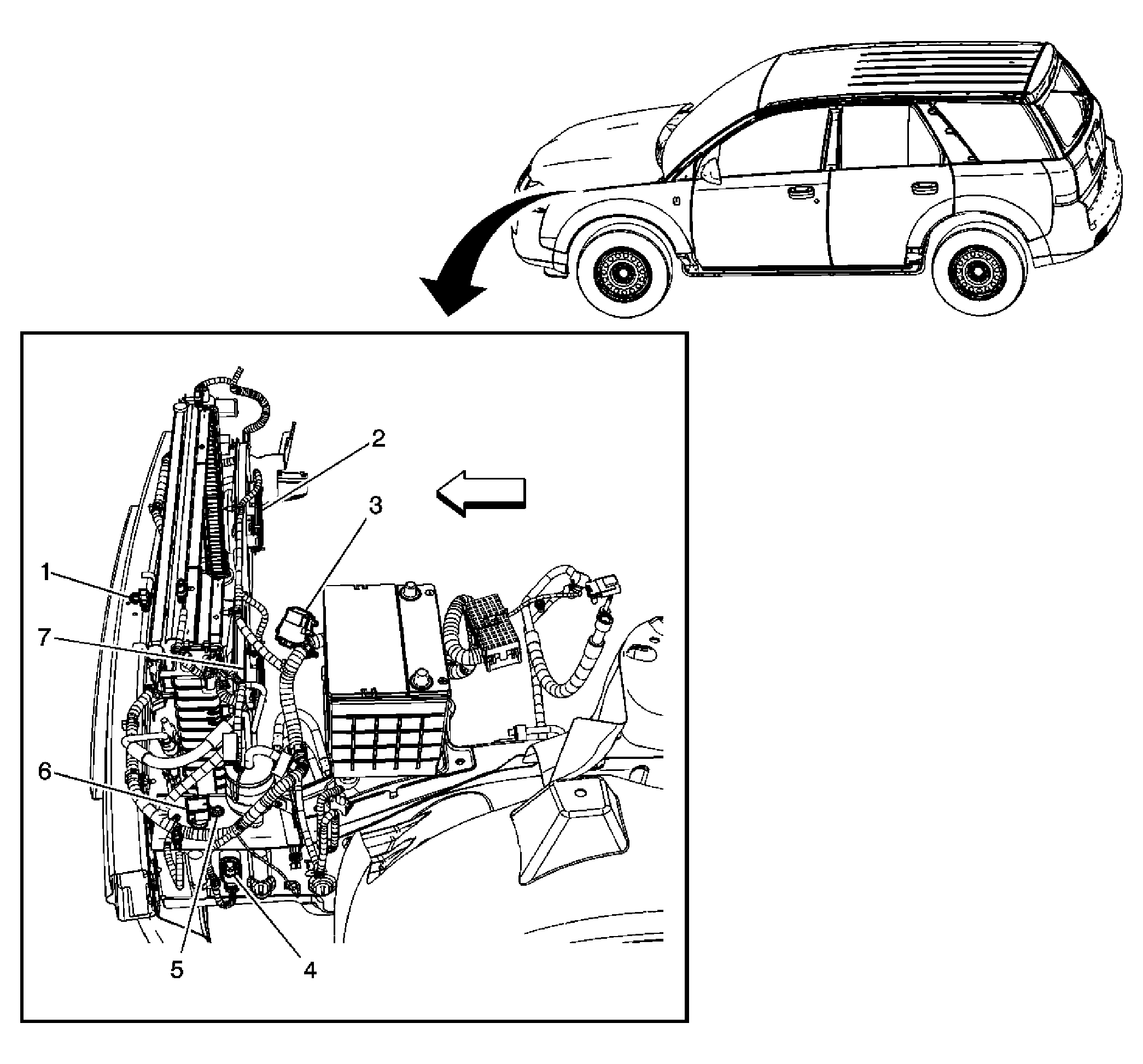

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Ambient Air Temperature Sensor (DH3) |
| 2 |
Cooling Fan - Right |
| 3 |
Cooling Fan Relay 3 |
| 4 |
Daytime Running Lamps (DRL) Resistor |
| 5 |
G101 |
| 6 |
SP101 |
| 7 |
Cooling Fan - Left |

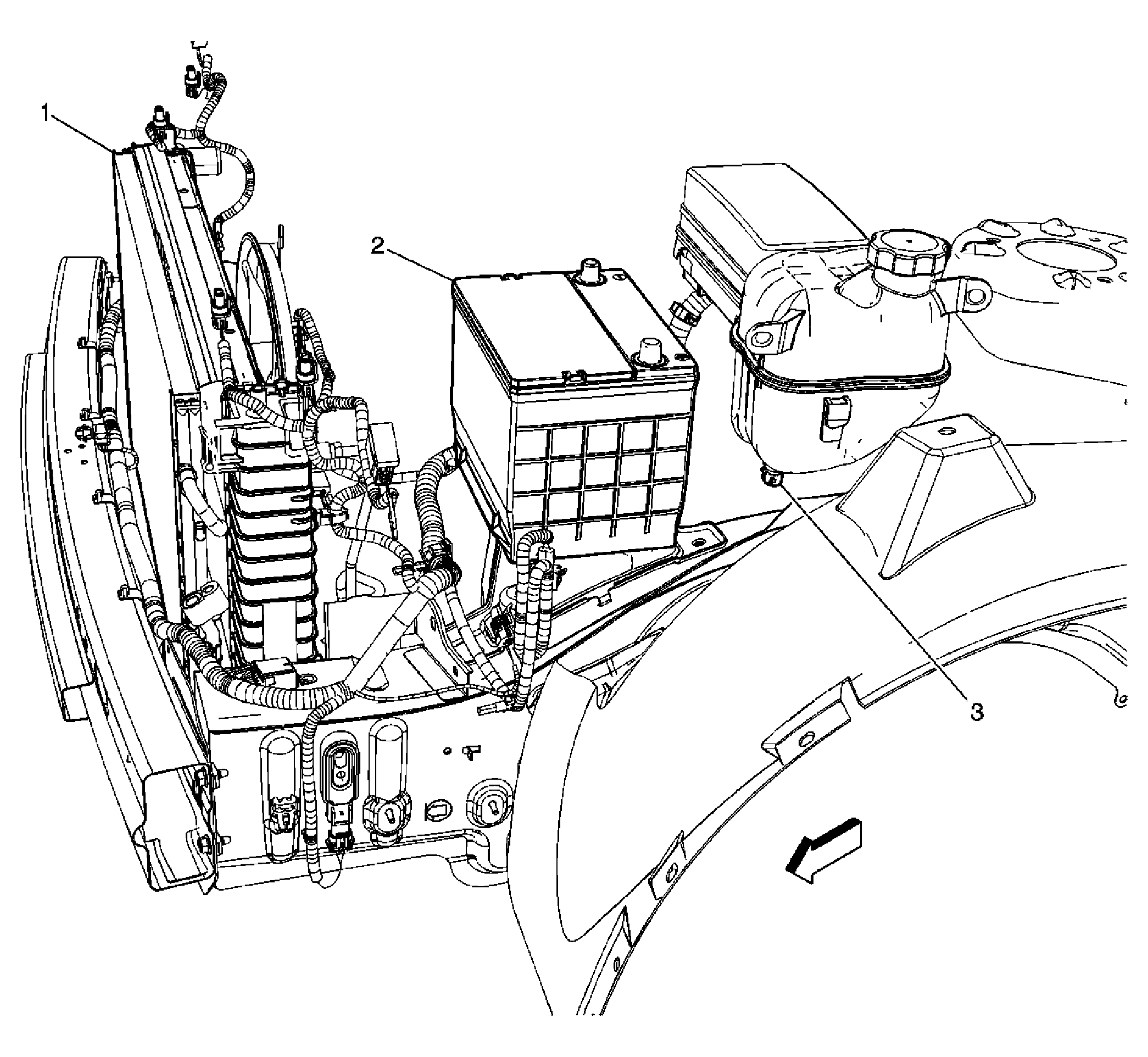

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Radiator |
| 2 |
Battery |
| 3 |
Coolant Level Switch |
