Instrument Panel Inflatable Restraint Module Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

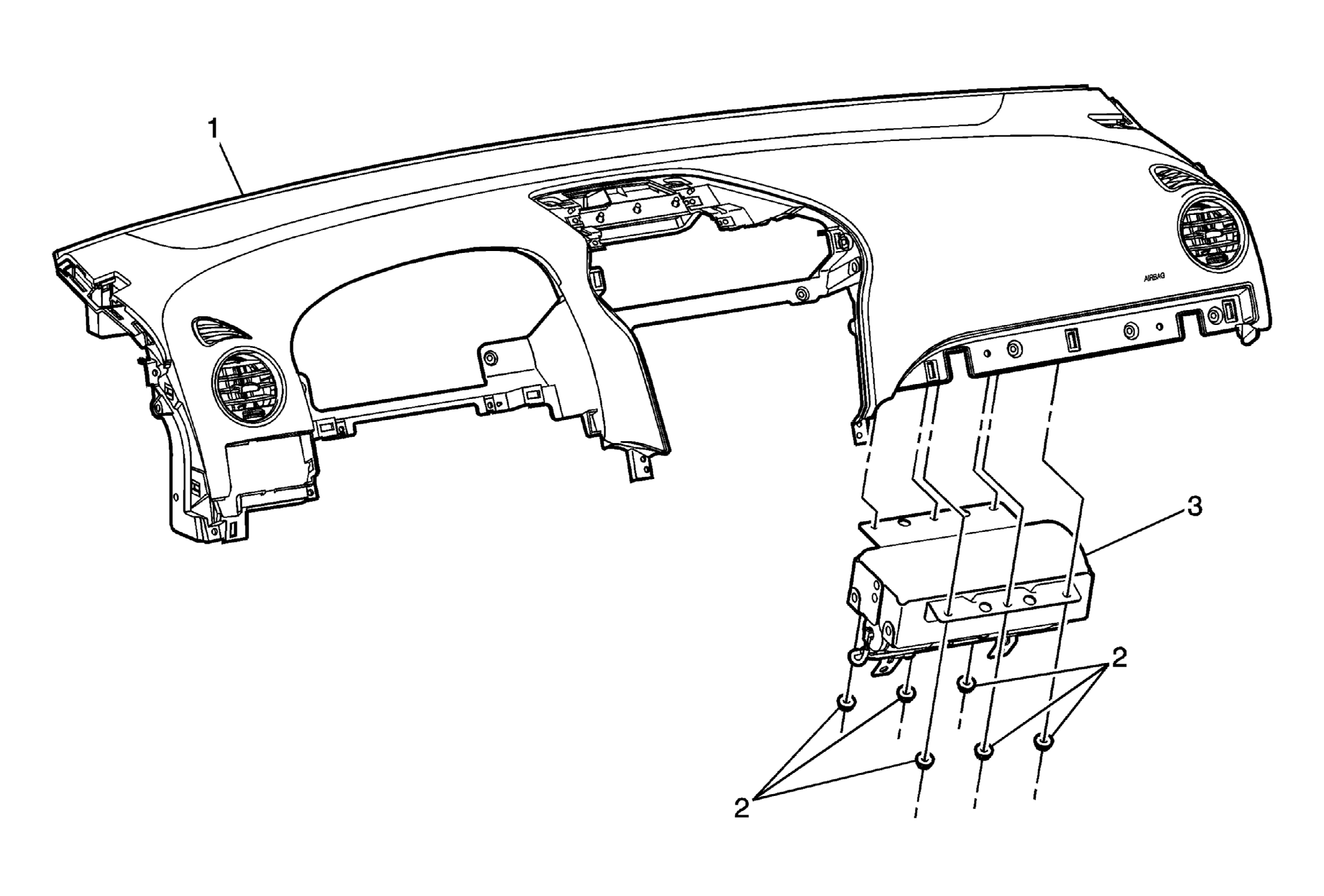

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel (I/P) Trim Pad Procedure: Remove the I/P trim pad. Refer to Instrument Panel Trim Panel Replacement . |
| 2 | I/P Inflatable Restraint Module Nut (Qty: 6)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 3 | I/P Inflatable Restraint Module Procedure: Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module, after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping . |
