Installation Procedure

    NOTE: Refer to Fastener Notice .

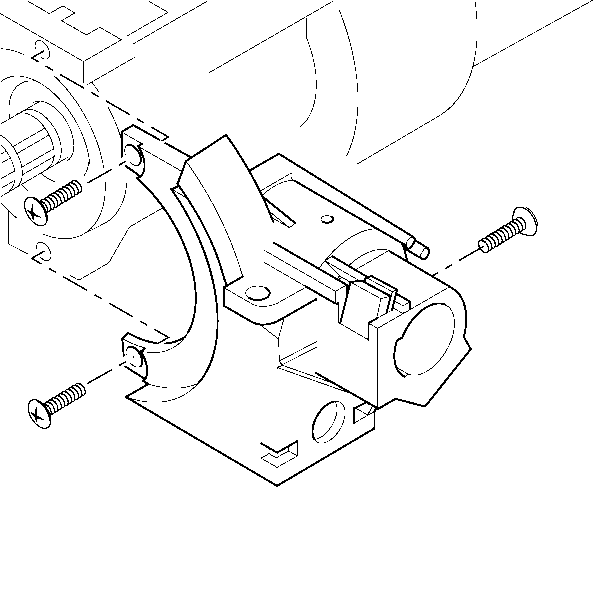

    Fig 1: View Of Lock Cylinder Housing TORX Screws
    GM1413838Courtesy of GENERAL MOTORS CORP.
  1. Install 3 TORX® screws into the lock cylinder housing.

    Tighten:  Tighten the TORX® screws to 7 N.m (62 lb in).

  2. Install the turn signal cancel cam. Refer to Turn Signal Cancel Cam and Steering Shaft Upper Bearing Spring Replacement .
  3. Install the park lock cable into the lock cylinder housing.
  4. Install the ignition switch. Refer to Ignition Switch Replacement .
  5. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
