Installation Procedure

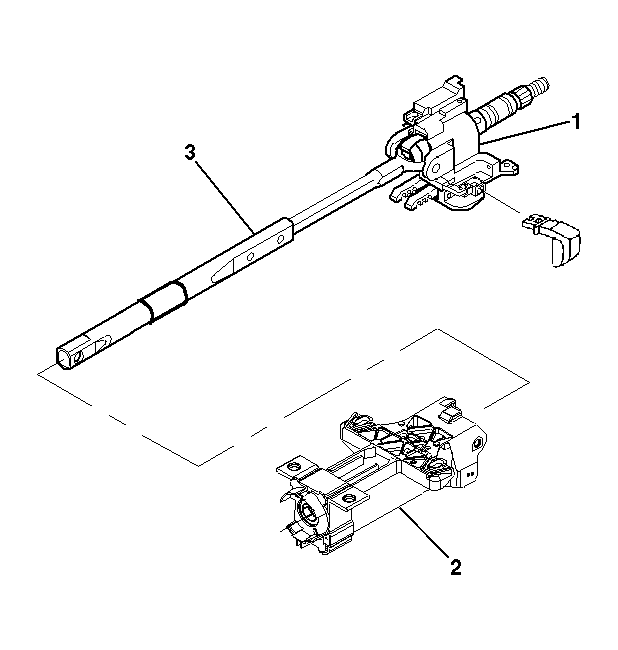

    Fig 1: View Of Upper Steering Column Components
    GM420224Courtesy of GENERAL MOTORS CORP.
  1. Install the jacket (2).
  2. Install the steering column tilt head (1). Refer to Steering Column Tilt Head Housing Replacement .
  3. Install the steering column to the vehicle. Refer to Steering Column Replacement .
  4. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
