Installation Procedure

  1. Position the steering wheel control switch to the steering wheel.
  2. Connect the electrical connector to the steering wheel control switch.

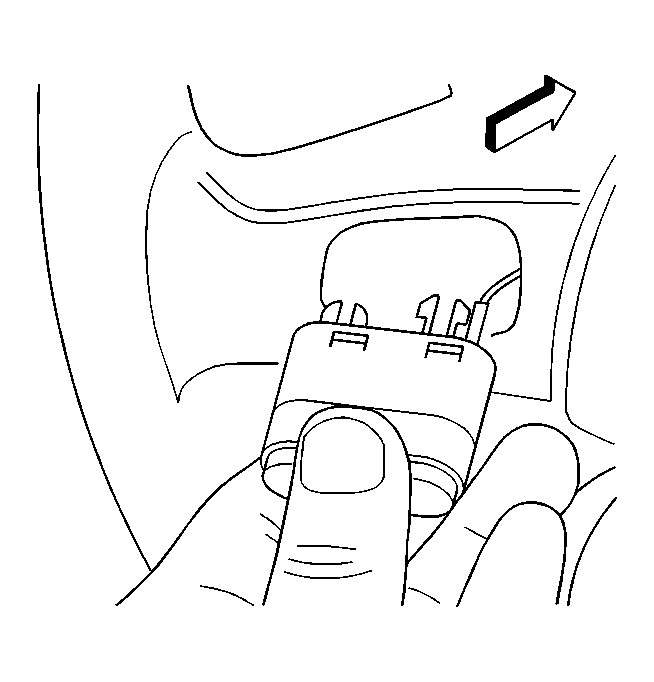

    Fig 1: View Of Steering Wheel Control Switch Electrical Connector
    GM652807Courtesy of GENERAL MOTORS CORP.
  3. Install the steering wheel control switch into the steering wheel, ensuring the retaining tabs are fully seated.

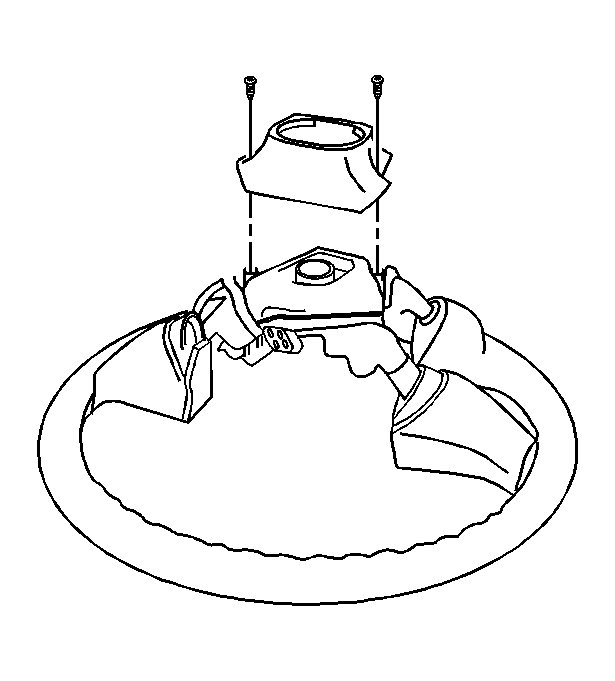

    4. Fig 2: View Of Shroud & Screws
    GM755486Courtesy of GENERAL MOTORS CORP.
  4. Install the shroud to the steering wheel.
    5. NOTE: Refer to Fastener Notice .
  5. Install the shroud retaining screws to the steering wheel.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  6. Install the steering wheel. Refer to Steering Wheel Replacement .
