Installation Procedure

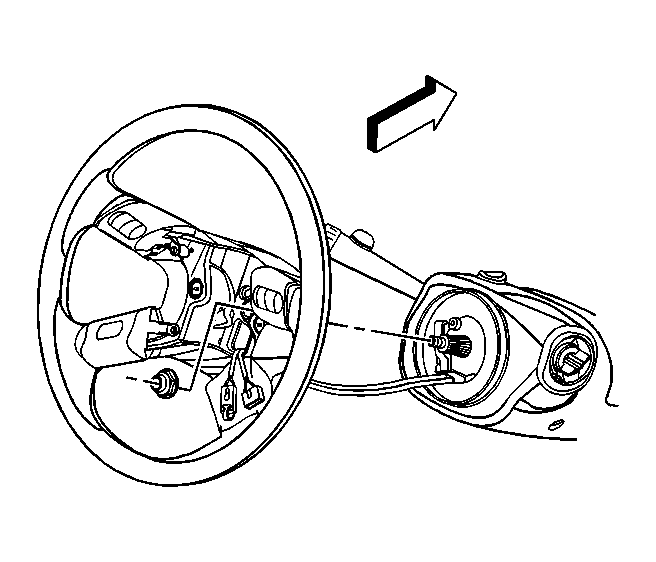

    Fig 1: Removing/Installing Steering Wheel Retaining Nut
    GM731652Courtesy of GENERAL MOTORS CORP.
  1. Install the steering wheel to the steering wheel shaft.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the retaining nut that secures the steering wheel to the steering wheel shaft.

    Tighten:  Tighten the retaining nut to 41 N.m (30 lb ft).

  3. Connect the steering wheel electrical connector.
  4. Install the horn plunger to the steering column.
  5. Install the inflator module. Refer to Inflatable Restraint Steering Wheel Module Replacement .

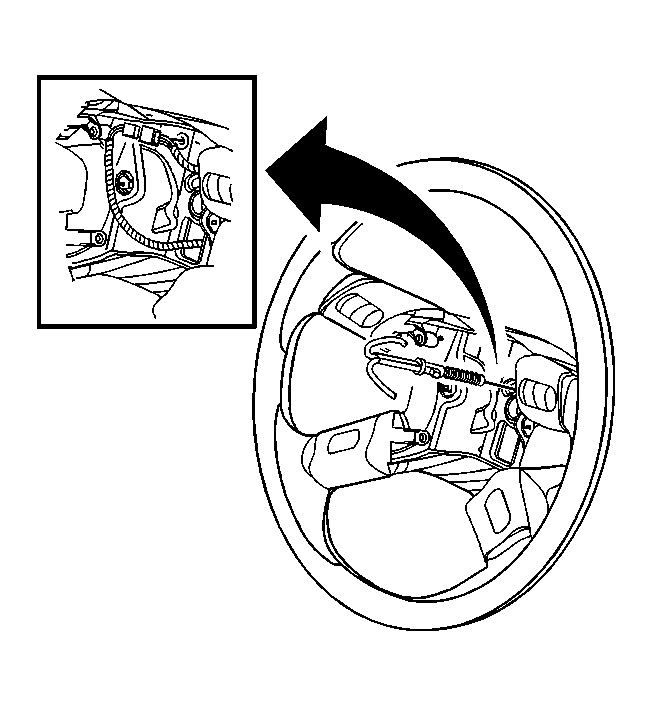

    Fig 2: Removing/Installing Air Bag Module
    GM731656Courtesy of GENERAL MOTORS CORP.
  6. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
