Transfer Case Control Component Views

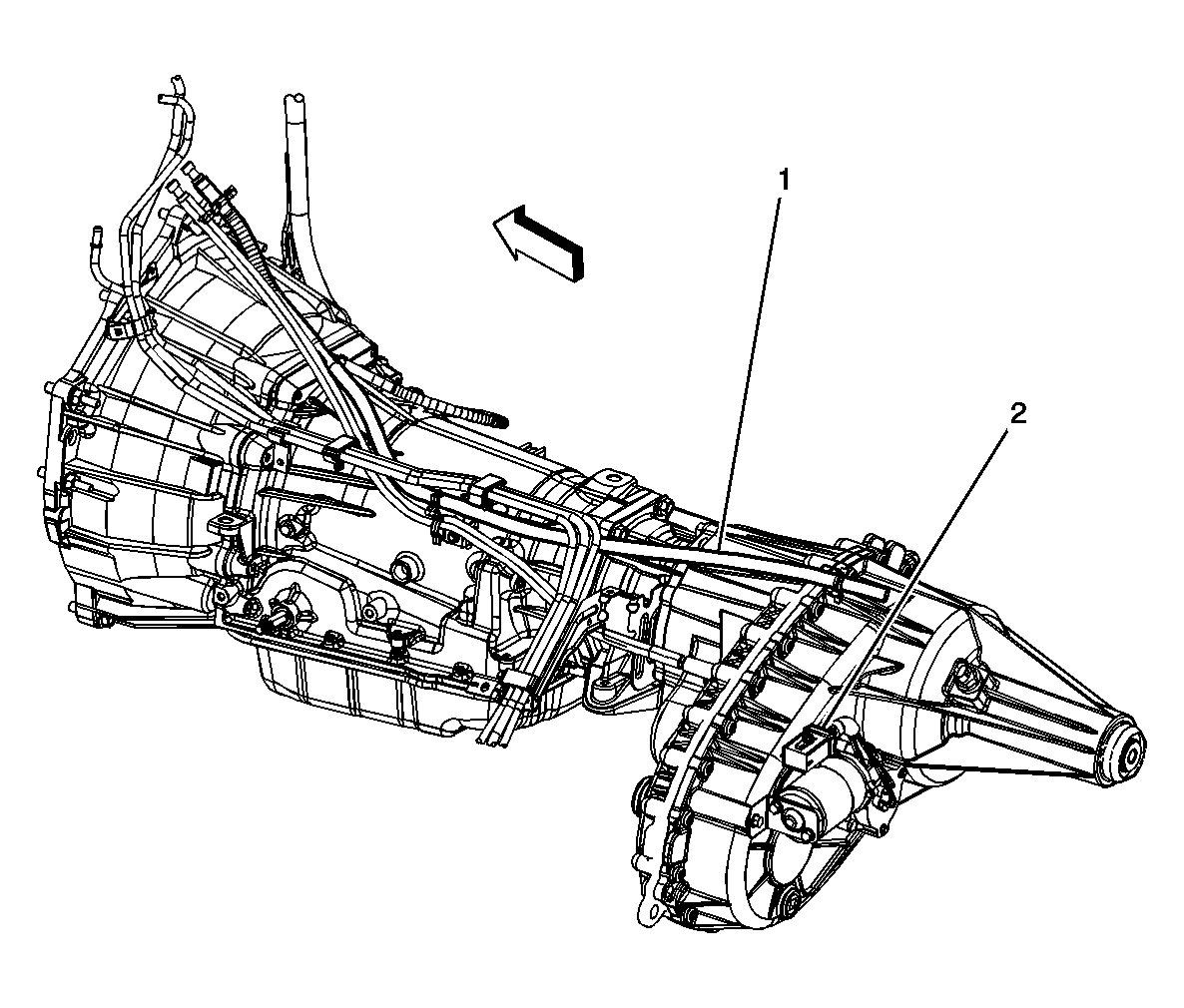

Fig 1: Transfer Case Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case
2	Transfer Case Encoder/Motor Connector

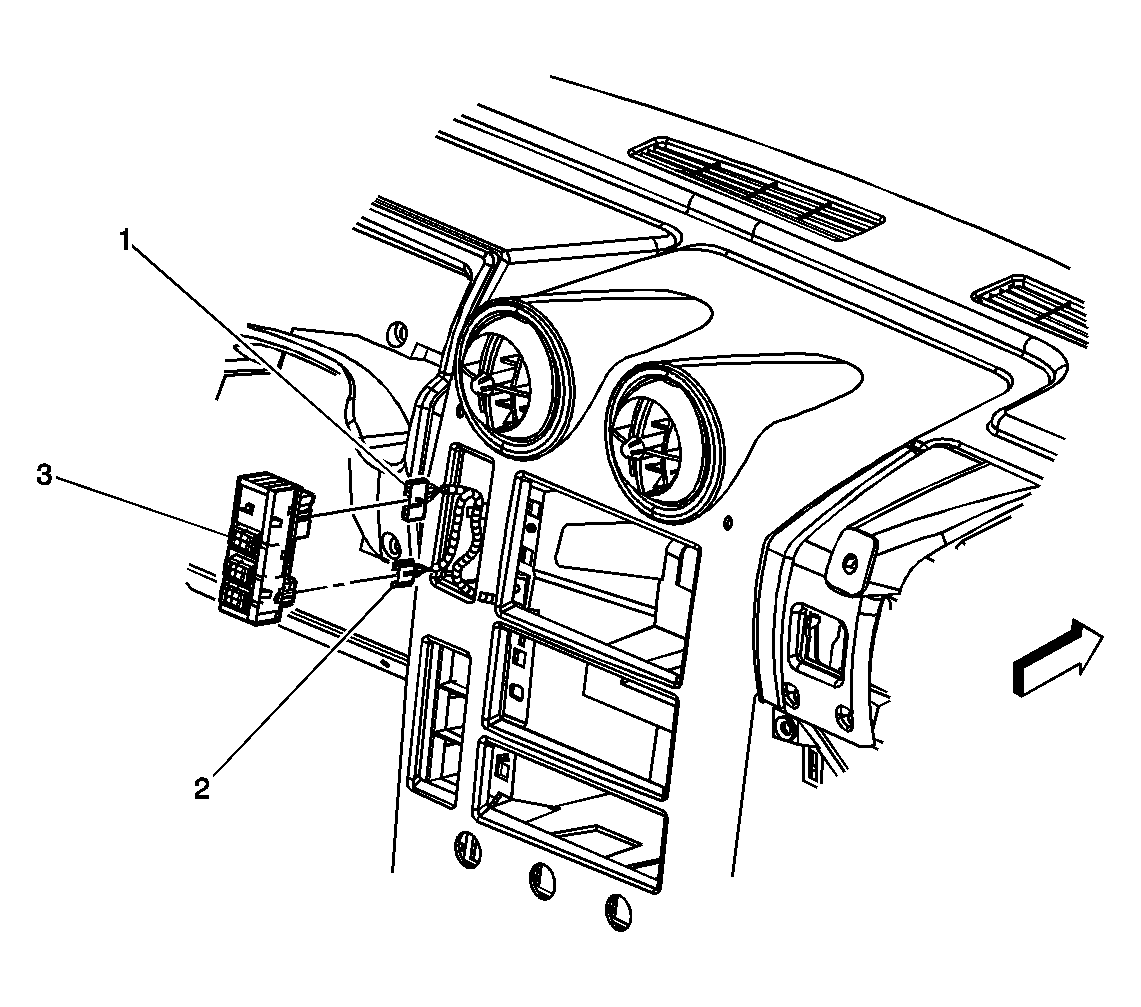

Fig 2: Transfer Case Shift Control Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Switch-C1
2	Transfer Case Shift Control Switch-C2
3	Transfer Case Shift Control Switch

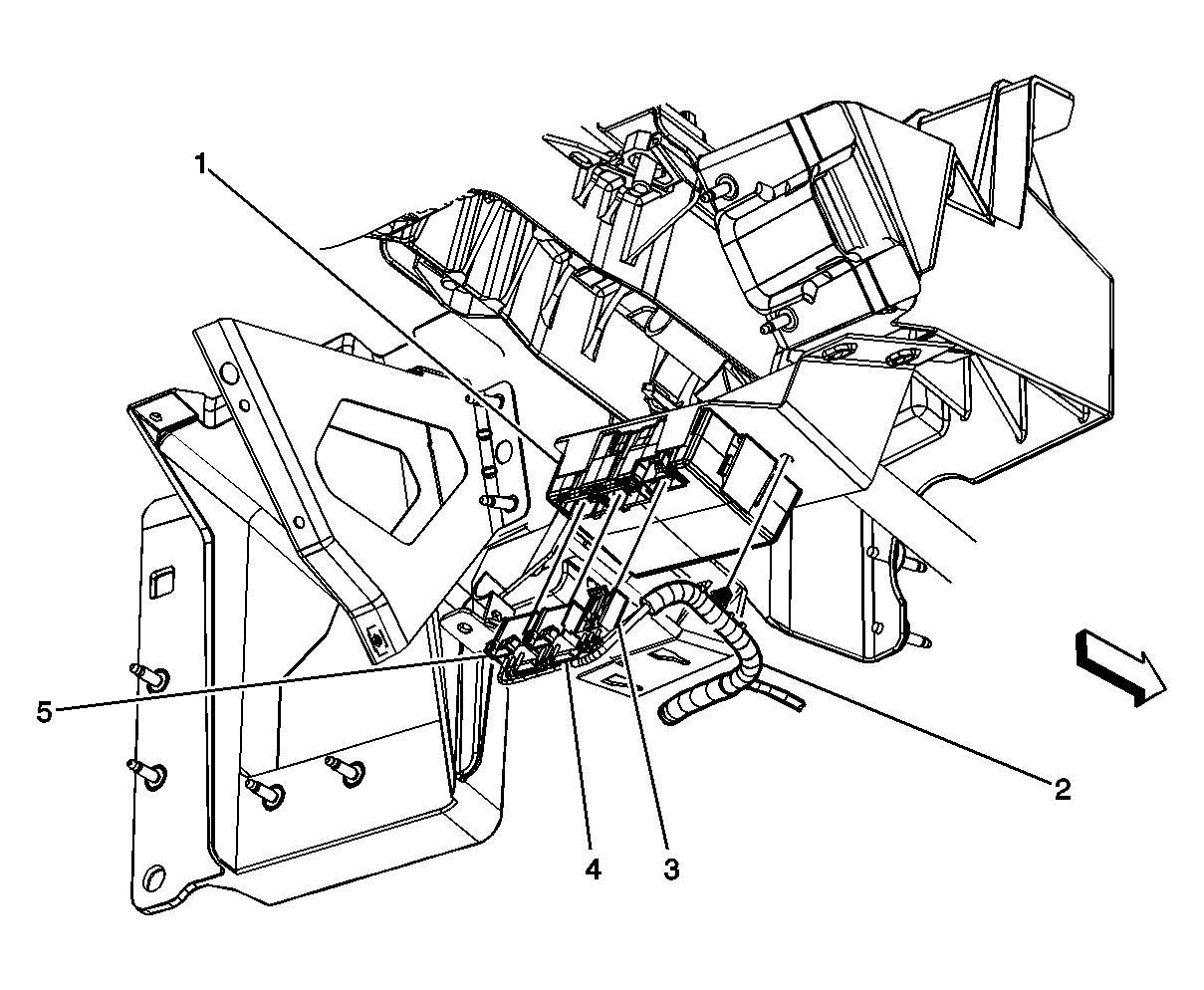

Fig 3: Transfer Case Shift Control Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Module
2	I/P Harness
3	Transfer Case Shift Control Module-C3
4	Transfer Case Shift Control Module-C2
5	Transfer Case Shift Control Module-C1
