Removal Procedure

  1. Remove the knee bolster. Refer to Trim Panel Replacement - Knee Bolster .
  2. Disconnect the shift control module electrical connectors.

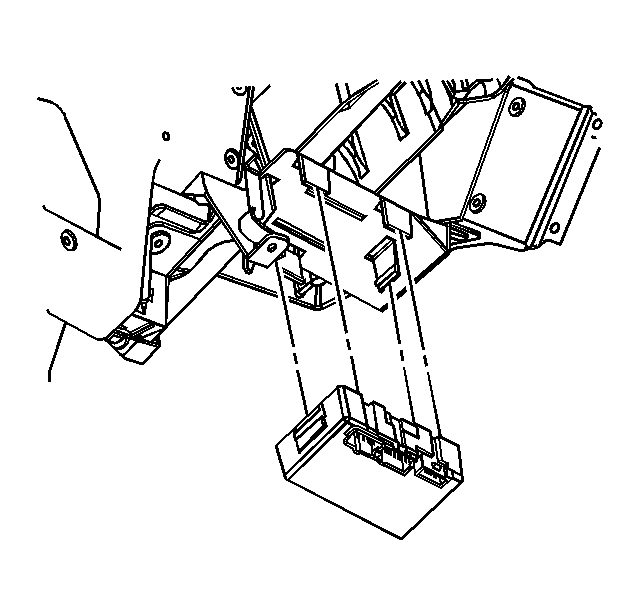

    Fig 1: Transfer Case Shift Control Module
    GM860519Courtesy of GENERAL MOTORS CORP.
  3. Reposition the harness.
  4. Remove the module from the vehicle.
