Installation Procedure

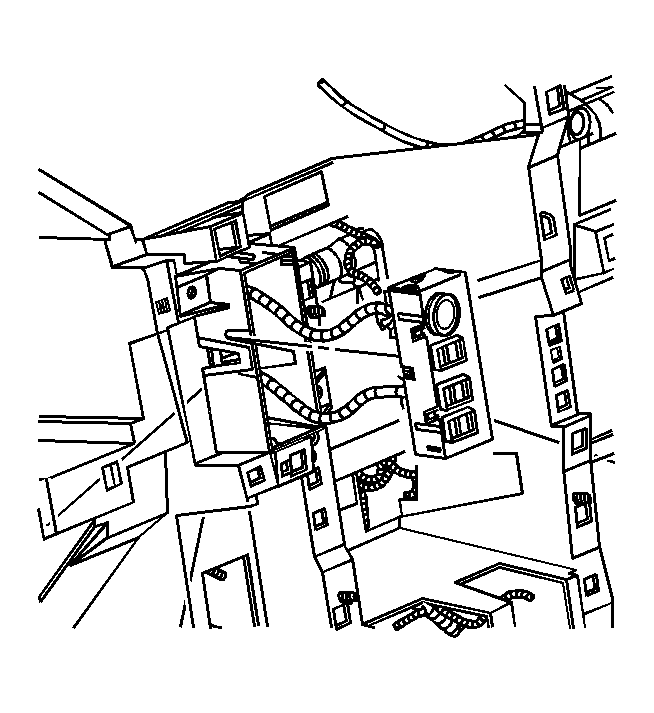

    Fig 1: Shift Control/Selector Switch
    GM860516Courtesy of GENERAL MOTORS CORP.
  1. Position the selector switch close to the housing so the electrical connectors can be connected.
  2. Connect the selector switch electrical connectors.
  3. Slide the selector switch into the housing until the switch snaps into place.
    IMPORTANT: Make sure that the selector switch is seated properly in the housing before installing the I/P cluster bezel.
  4. Install the I/P cluster bezel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center .
