Installation Procedure

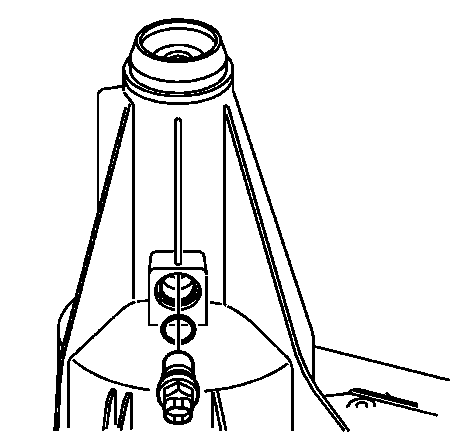

    Fig 1: View Of Vehicle Speed Sensor (VSS) & O-Ring Seal
    GM819577Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the new rear speed sensor into the transfer case with a new O-ring seal.

    Tighten:  Tighten the speed sensor to 17 N.m (13 lb ft).

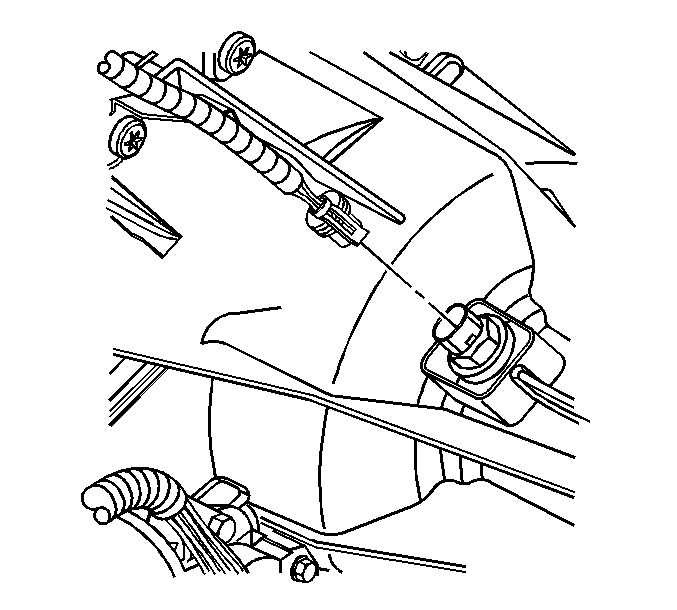

    2. Fig 2: Electrical Connector & Speed Sensor
    GM860433Courtesy of GENERAL MOTORS CORP.
  2. Install the electrical connector to the speed sensor.
  3. Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
