Navigation System Component Views

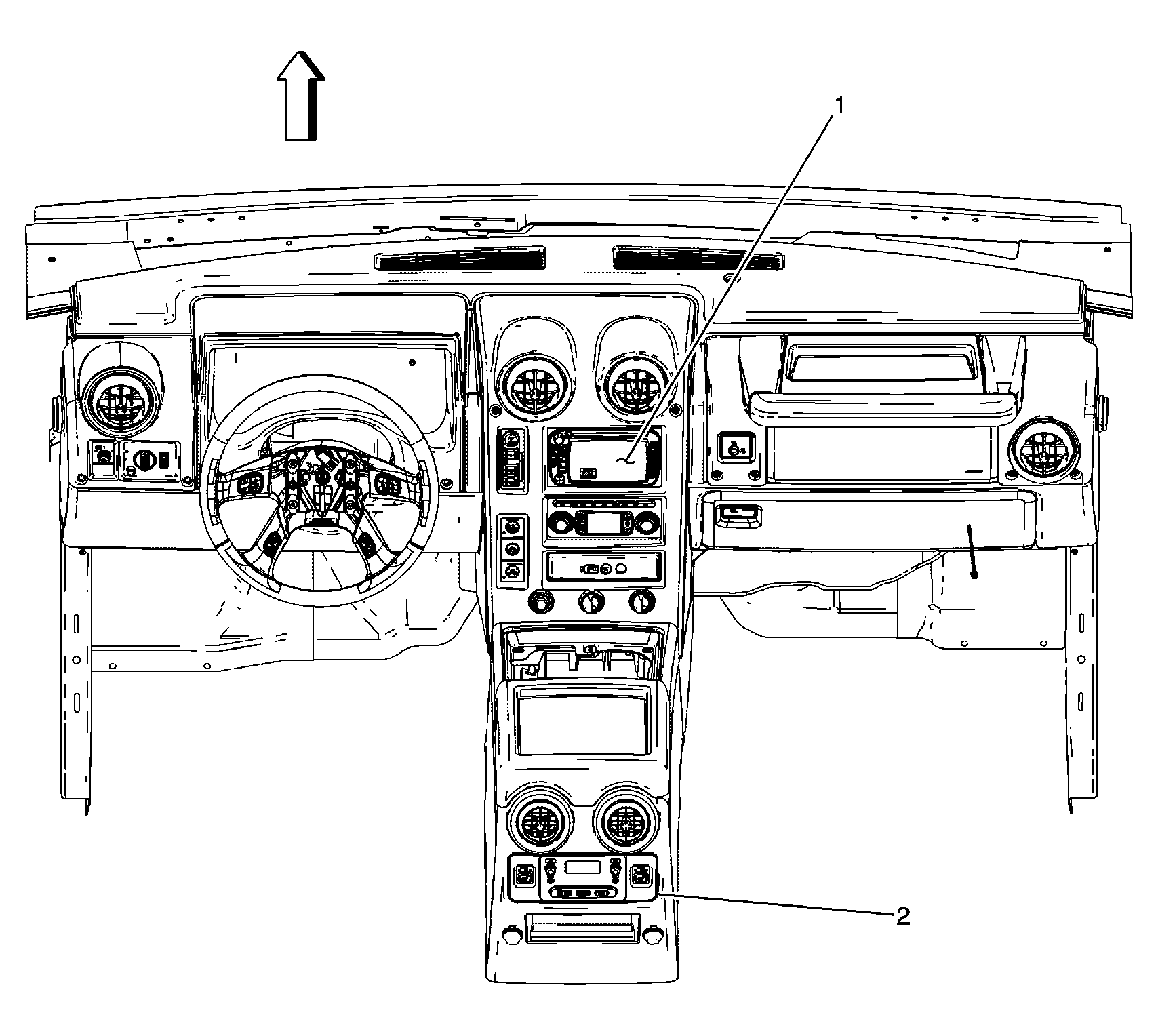

Fig 1: Radio and Navigational Receiver Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio and Navigational Receiver
2	Rear Seat Audio (RSA) Control

Fig 2: Navigational Radio Antenna (GPS) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular and Navigation Antenna
2	Radio Antenna
3	Navigation Radio Antenna - GPS (UM8)
4	Radio w/DVD
5	Speaker - Front Subwoofer
6	Audio Amplifier
