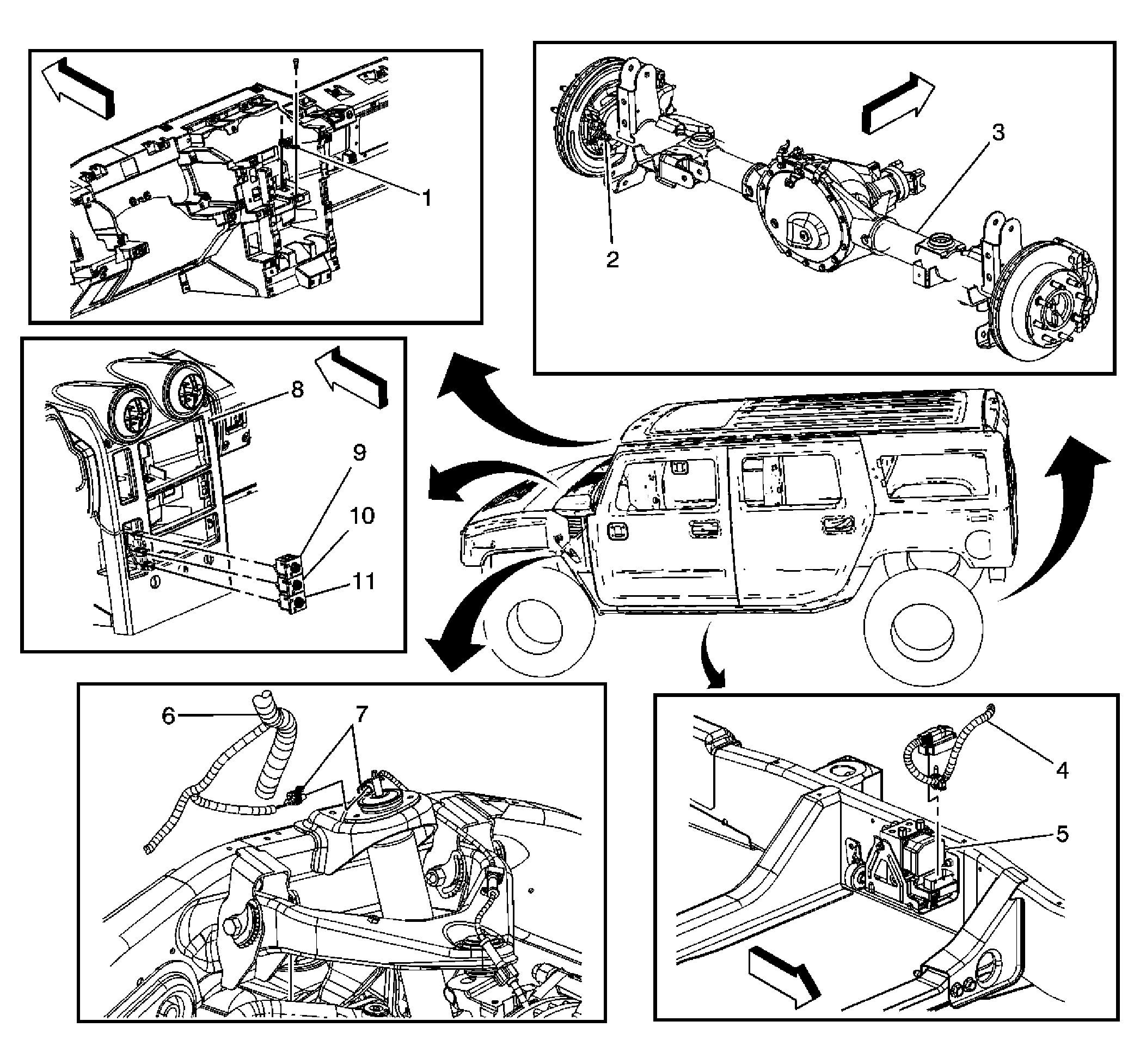

ABS Component Views
| Callout | Component Name |
|---|---|
| 1 | Longitudinal Accelerometer |
| 2 | Wheel Speed Sensor (WSS) - LR (RR Similar) |
| 3 | Rear Axle Assembly |
| 4 | Chassis Harness |
| 5 | Electronic Brake Control Module (EBCM) |
| 6 | Chassis Harness |
| 7 | Wheel Speed Sensor (WSS) Connector - LF (RF Similar) |
| 8 | Front Console |
| 9 | Traction Control Switch |
| 10 | Tow/Haul Switch |
| 11 | Selectable Ride Switch |
