Engine Electrical Component Views

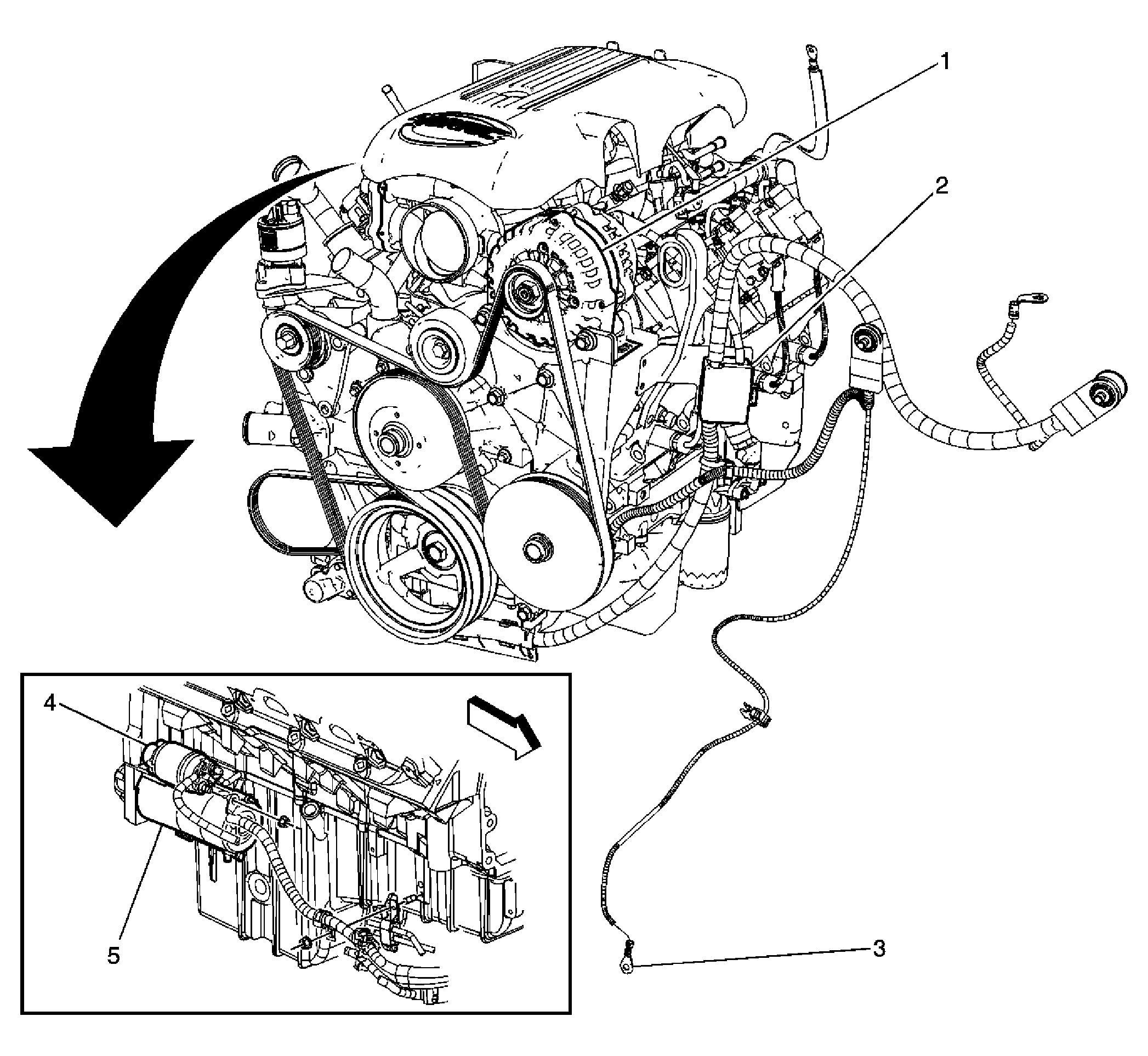

Fig 1: Engine Electrical Component Views
GM1232360Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 Junction Block - Battery Cable
3 G100
4 Starter Solenoid
5 Starter

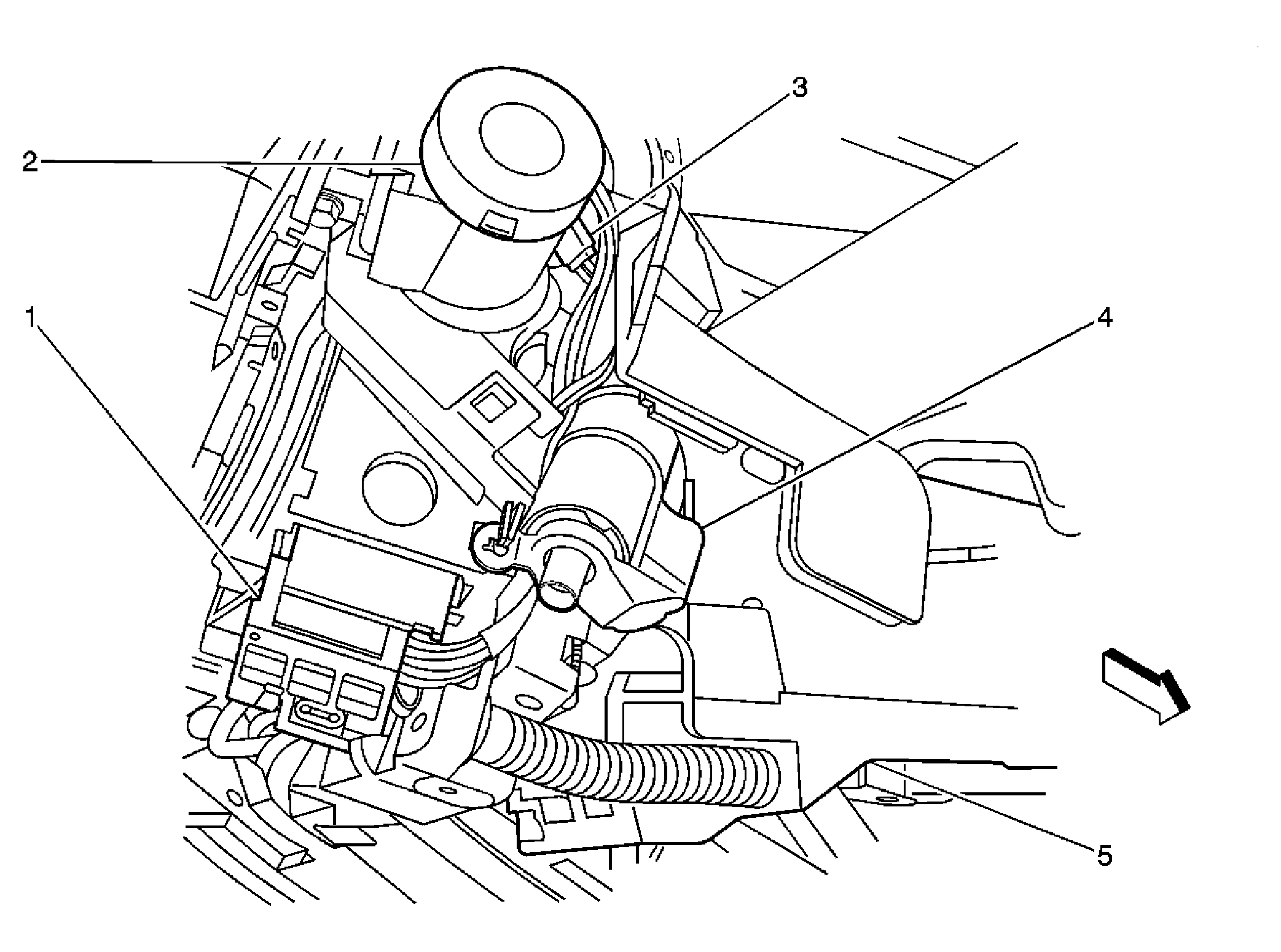

Fig 2: Top Of Steering Column Component Views
GM900962Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
2 Passlock Sensor
3 Ignition Key Alarm Switch
4 Ignition Lock Cylinder Control Actuator
5 Steering Column
