Power Outlet Connector End Views

Auxiliary Power Outlet - Cargo (SUT)

Courtesy of GENERAL MOTORS CORP.

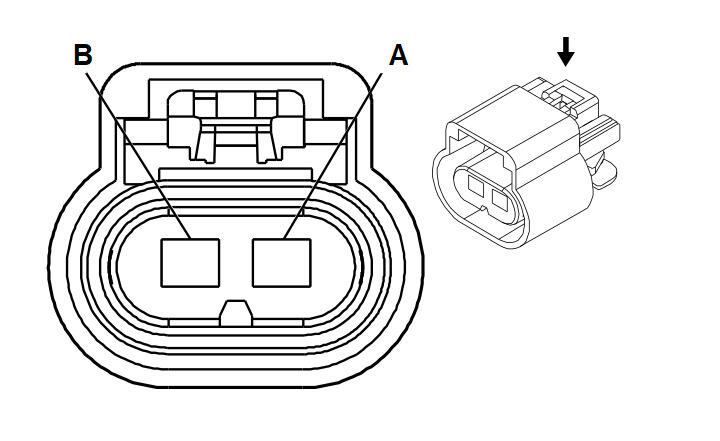

Connector Part Information		15326679 2-Way F GT 280 Series Sealed (BK)
Pin	Wire Color	Circuit No.	Function
A	BK	2950	Ground
B	OG	1040	Battery Positive Voltage

Auxiliary Power Outlet - Console 1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176446 3-Way F Metri-Pack 280 Series Flexlock (BK)
Pin	Wire Color	Circuit No.	Function
A	OG	1040	Battery Positive Voltage
B	-	-	Not Used
C	BK	1050	Ground

Auxiliary Power Outlet - Console 2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176446 3-Way F Metri-Pack 280 Series Flexlock (BK)
Pin	Wire Color	Circuit No.	Function
A	OG	1040	Battery Positive Voltage
B	-	-	Not Used
C	BK	1050	Ground

Auxiliary Power Outlet - Front 1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176446 3-Way F Metri-Pack 280 Series Flexlock (BK)
Pin	Wire Color	Circuit No.	Function
A	OG	1040	Battery Positive Voltage
B	-	-	Not Used
C	BK	1050	Ground

Auxiliary Power Outlet - Front 2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176446 3-Way F Metri-Pack 280 Series Flexlock (BK)
Pin	Wire Color	Circuit No.	Function
A	OG	1040	Battery Positive Voltage
B	-	-	Not Used
C	BK	1050	Ground

Auxiliary Power Outlet - Rear (Except SUT)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176446 3-Way F Metri-Pack 280 Series Flexlock (BK)
Pin	Wire Color	Circuit No.	Function
A	OG	1040	Battery Positive Voltage
B	-	-	Not Used
C	BK	1450	Ground

Cigar Lighter

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176445 3-Way F Metri-Pack 280 Series Flexlock (WH)
Pin	Wire Color	Circuit No.	Function
A	OG	640	Battery Positive Voltage
B	-	-	Not Used
C	BK	1050	Ground
