Installation Procedure

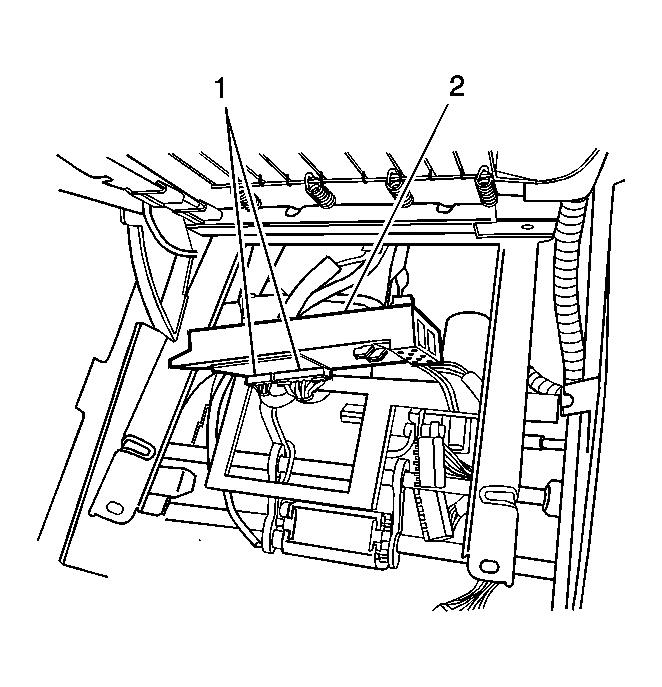

    Fig 1: View Of Memory Seat Control Module & Lower Electrical Harness Connectors
    GM914892Courtesy of GENERAL MOTORS CORP.
  1. Position the module into the vehicle.
  2. Connect the lower electrical harness connectors (2).

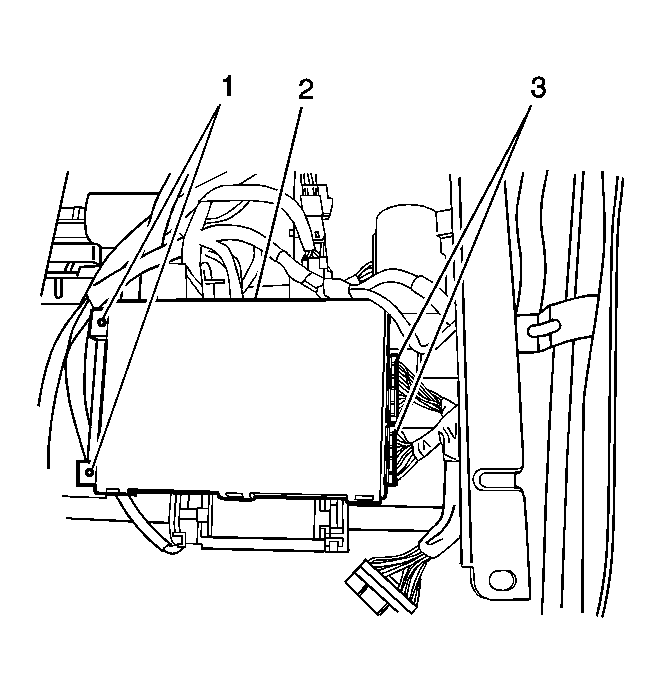

    3. Fig 2: View Of Memory Seat Control Module Retaining Screws & Upper Electrical Harness Connector
    GM914889Courtesy of GENERAL MOTORS CORP.
  3. Slide the module (2) to the left to engage the lower retainers.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the module retaining screws (3).

    Tighten:  Tighten the screws to 3 N.m (26 lb in).

  5. Connect the upper electrical harness connectors (3).
  6. Install the seat cushion. Refer to Front Seat Cushion Frame Replacement .
  7. If a new memory seat module was installed, calibrate the seat. Refer to Memory Seat Calibration .
