Door Control Module Schematics

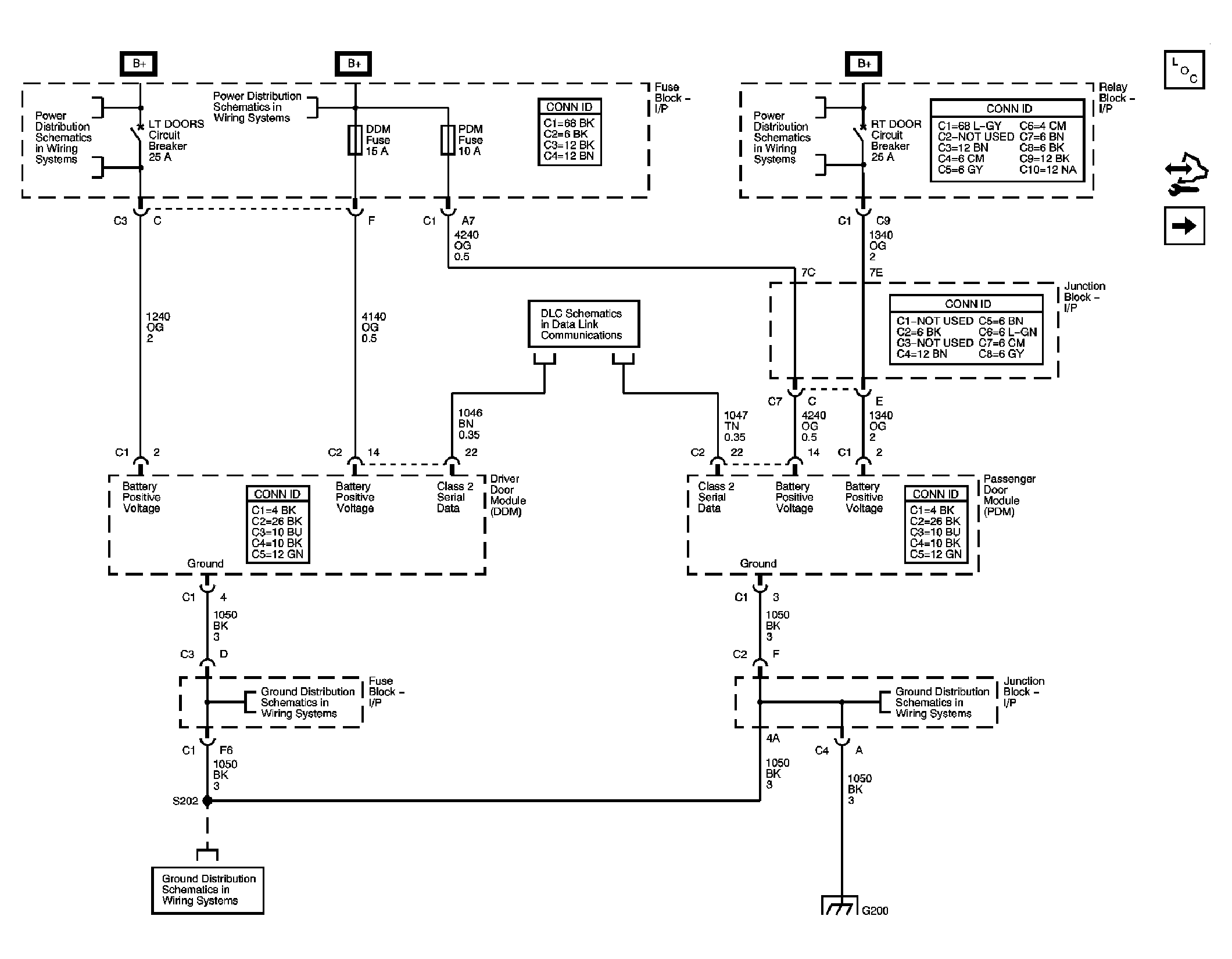

Fig 1: Power, Ground, and Serial Data
GM1608116Courtesy of GENERAL MOTORS CORP.

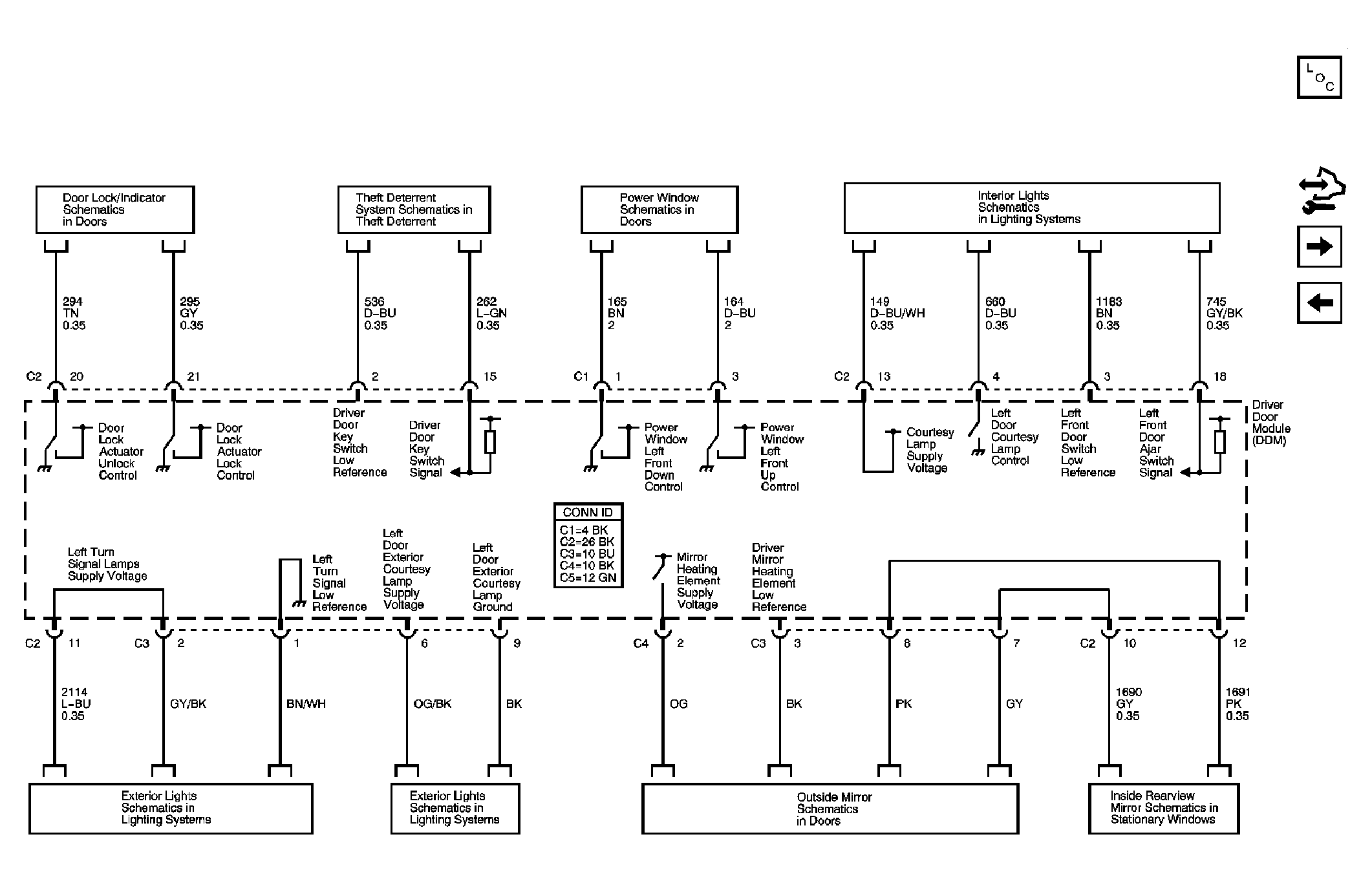

Fig 2: Driver Door Module References 1 of 2
GM1608117Courtesy of GENERAL MOTORS CORP.

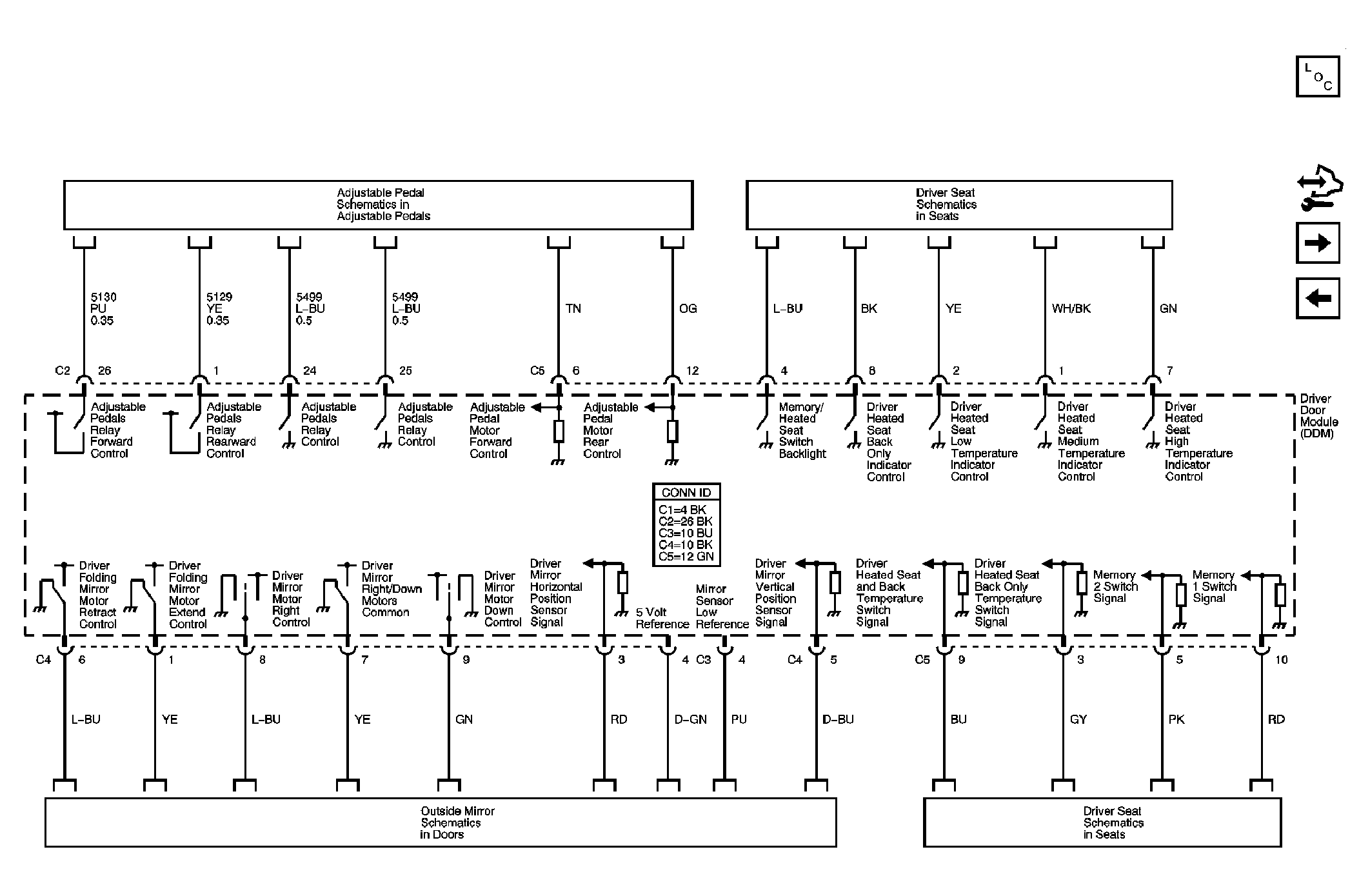

Fig 3: Driver Door Module References 2 of 2
GM1608118Courtesy of GENERAL MOTORS CORP.
Fig 4: Passenger Door Module References 1 of 2
GM1608119Courtesy of GENERAL MOTORS CORP.

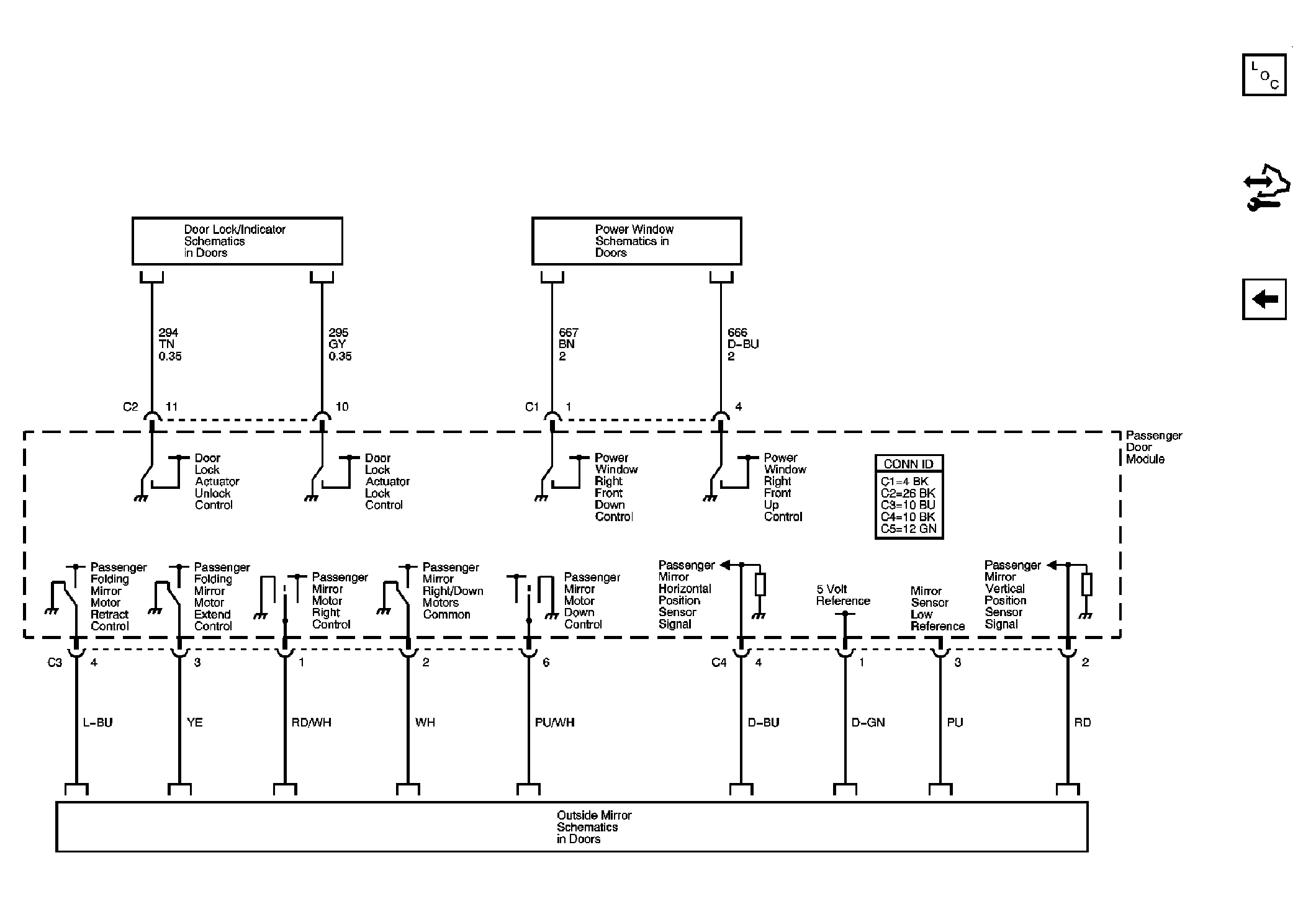

Fig 5: Passenger Door Module References 2 of 2
GM1608121Courtesy of GENERAL MOTORS CORP.
