Cellular Communication Component Views

Fig 1: Entertainment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular and Navigation Antenna
2	Digital Radio Receiver
3	Radio Antenna
4	Speaker - RF Tweeter
5	Base Antenna Coax Connectors
6	Digital Radio Coax Connectors
7	Vehicle Communication Interface Module (VCIM) Coax Connectors
8	Speaker-RF Door
9	Speaker-RR Door
10	Vehicle Communication Interface Module (VCIM)
11	Speaker-LR Door
12	Speaker-Subwoofer
13	Audio Amplifier
14	Speaker-RF Door
15	Radio
16	Speaker - LF Tweeter

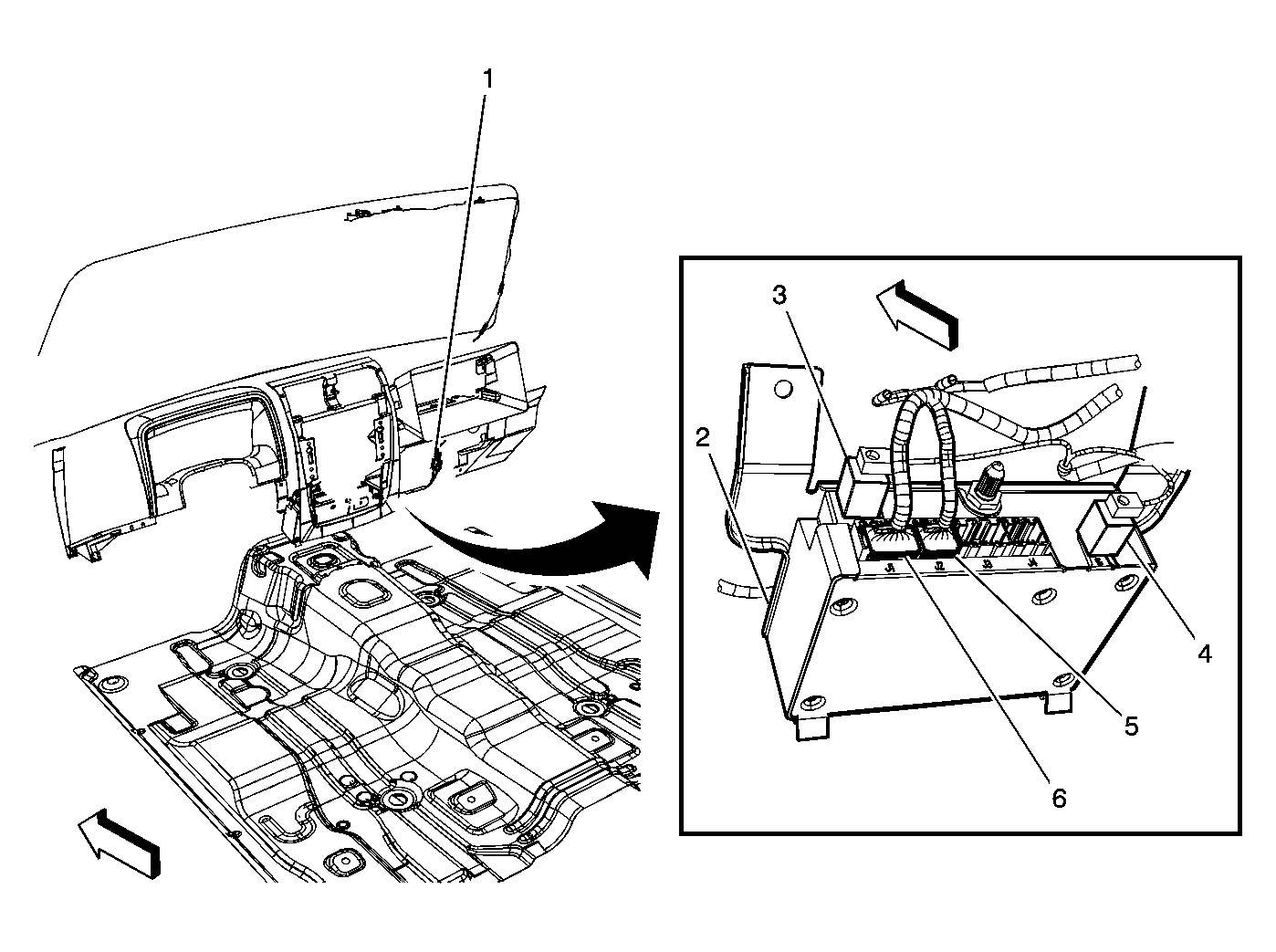

Fig 2: Behind the Radio in Center Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM) Antenna Coax Connectors
2	Vehicle Communication Interface Module (VCIM)
3	Cell Phone Antenna Coax
4	Global Positioning System(GPS) Antenna Coax
5	Vehicle Communication Interface Module (VCIM) C1
6	Vehicle Communication Interface Module (VCIM) C2

Fig 3: Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Garage Door Opener
2	Cellular Microphone
3	Dome/Reading Lamps
4	Dome Lamp
5	Vanity Mirror Lamp - Left (YC3)
6	Vanity Mirror Lamp - Right (YC3)
