Lumbar Switch Replacement

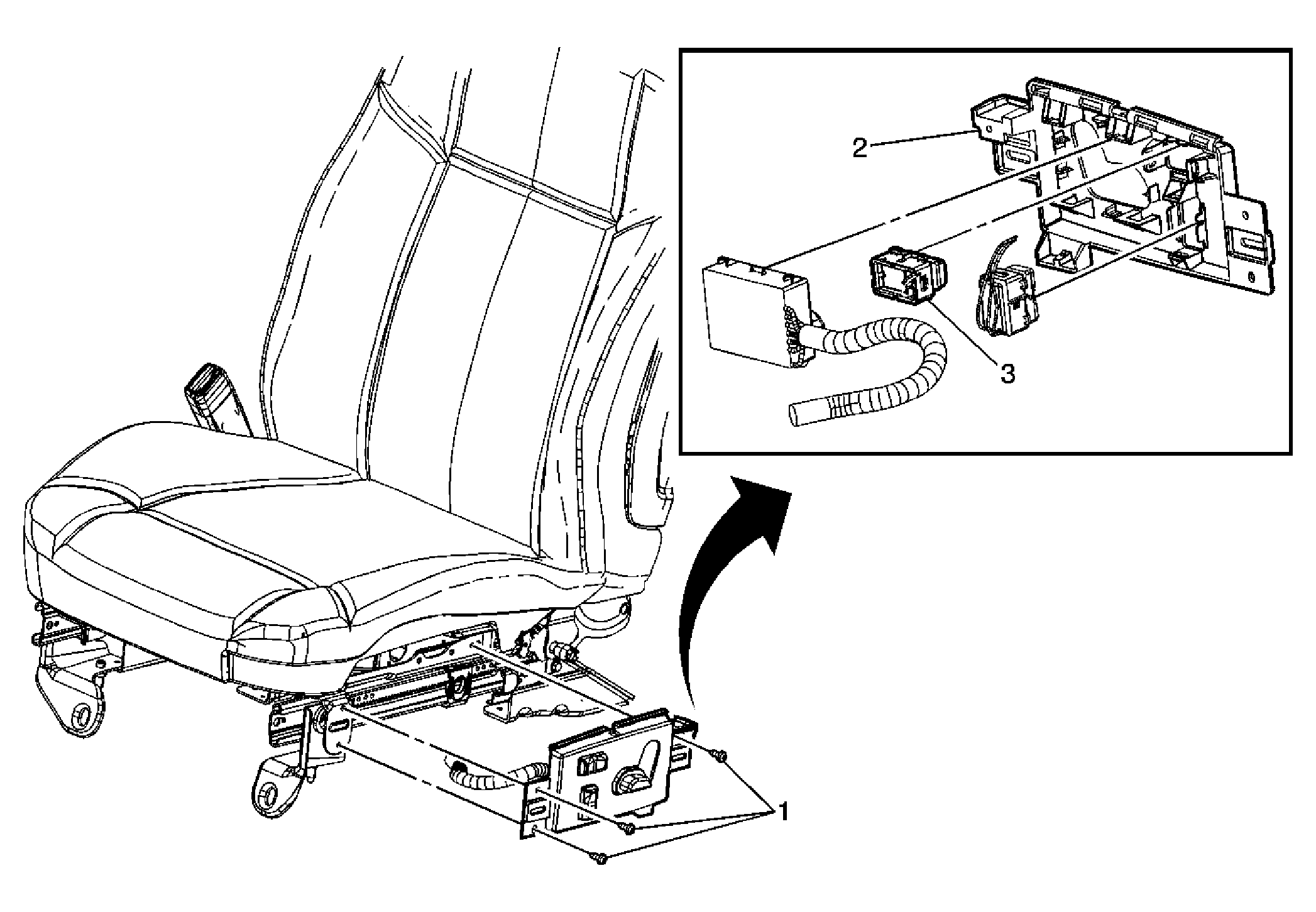

Fig 1: Lumbar Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front bucket seat. Refer to Seat Replacement - Front Bucket . Remove the front seat trim panel. Refer to Trim Panel Replacement - Front Seat (Power Lumbar) or Trim Panel Replacement - Front Seat (Manual Lumbar) .
1	Screw, Seat Switch Assembly (Qty: 3) Tighten: 2 N.m (18 lb in)
2	Bezel Assembly, Seat Switch
3	Switch, Seat Lumbar Control Tip: Disconnect the electrical connector.
