Sunroof Module Assembly Replacement

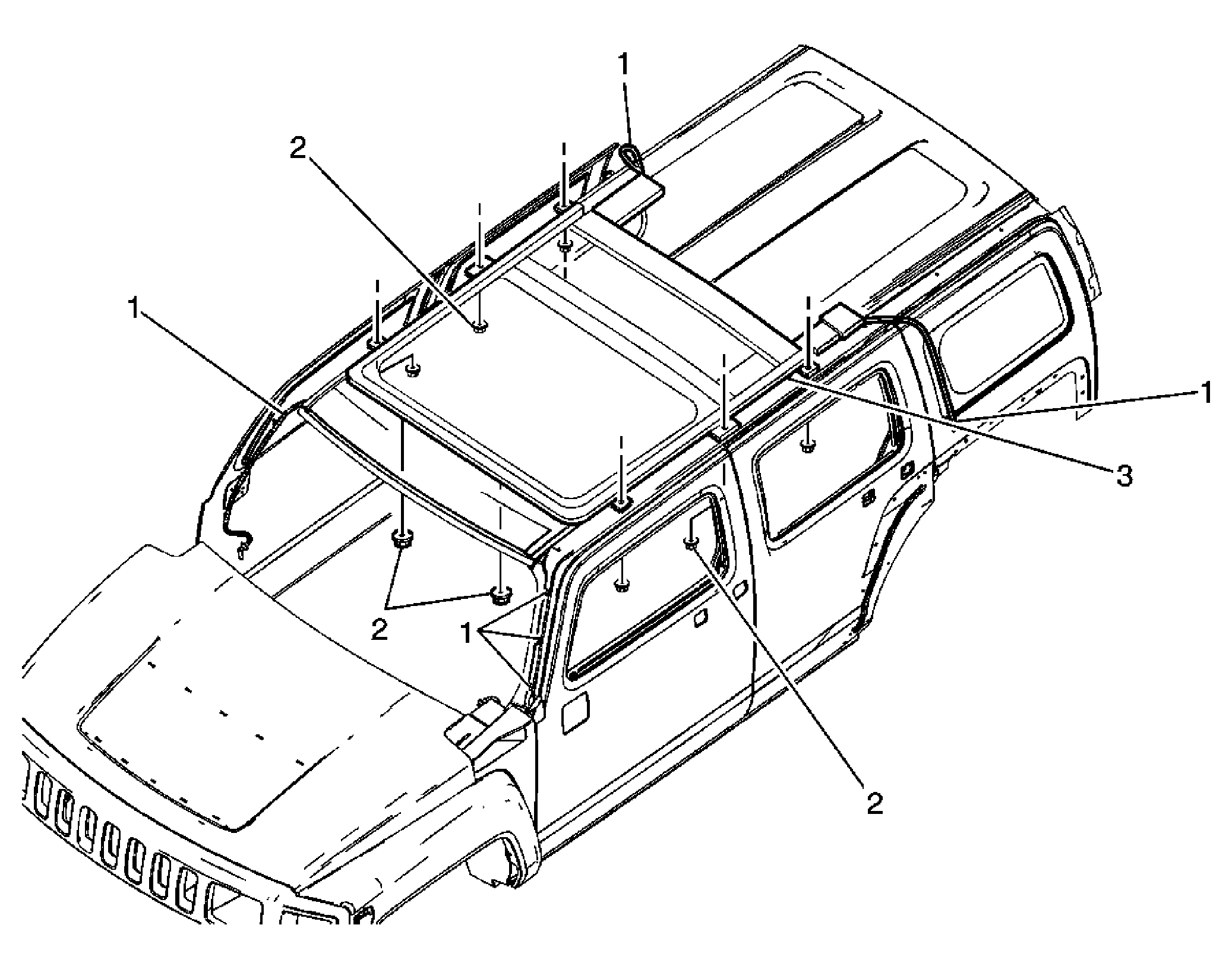

Fig 1: Sunroof Module Assembly Replacement
GM1556110Courtesy of GENERAL MOTORS CORP.
Sunroof Module Assembly Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Remove the sunroof window. Refer to Sunroof Window Replacement .
  2. Remove the headliner. Refer to Headliner Replacement .
  3. Remove the sunroof motor/actuator. Refer to Sunroof Motor/Actuator Replacement .
  4. Remove the sunshade. Refer to Sunroof Sunshade Assembly Replacement .
1 Hose, Sunroof Drain (Qty: 4)
Tip:  Unplug the drain hoses from each side of the drain weeper valve.
2 Nuts, Sunroof Module (Qty: 10)
Tip:  There are 3 nuts down each side and 4 across the front.

Tighten:  9 N.m (80 lb in)

3 Module, Sunroof
