Installation Procedure

    Fig 1: Midgate Window
    GM1412518Courtesy of GENERAL MOTORS CORP.
  1. Install the midgate window into the midgate though top of the midgate assembly.

    Ensure the window is engaged into the window run channels.

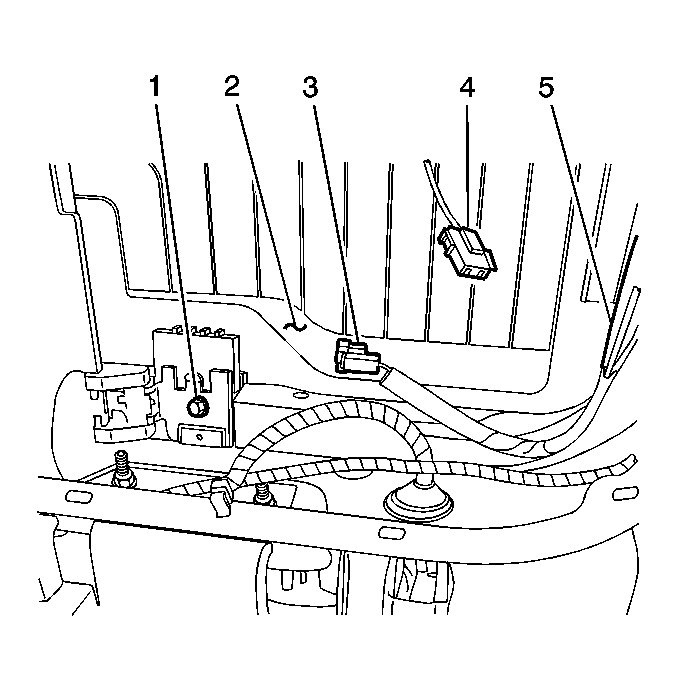

    2. Fig 2: Identifying Midgate Components
    GM1427954Courtesy of GENERAL MOTORS CORP.
  2. Lower the window (2) onto the window regulator assembly clamps.
  3. Install the bolts (1) retaining the midgate window to the window regulator clamps until they are finger tight.
  4. Connect the electrical connector (3) to the defroster grid contact terminal.

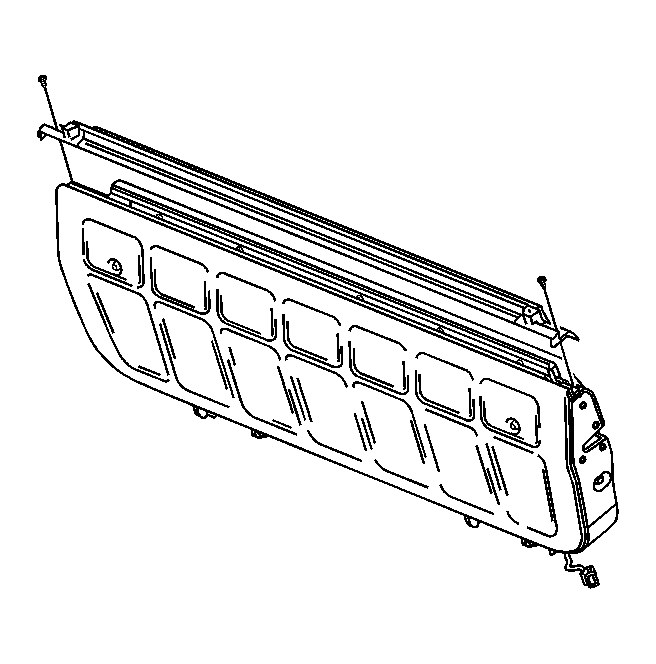

    5. Fig 3: Midgate Window Sealing Strip
    GM1412506Courtesy of GENERAL MOTORS CORP.
  5. Install the midgate window outer sealing strip. Refer to Midgate Window Outer Sealing Strip Replacement .

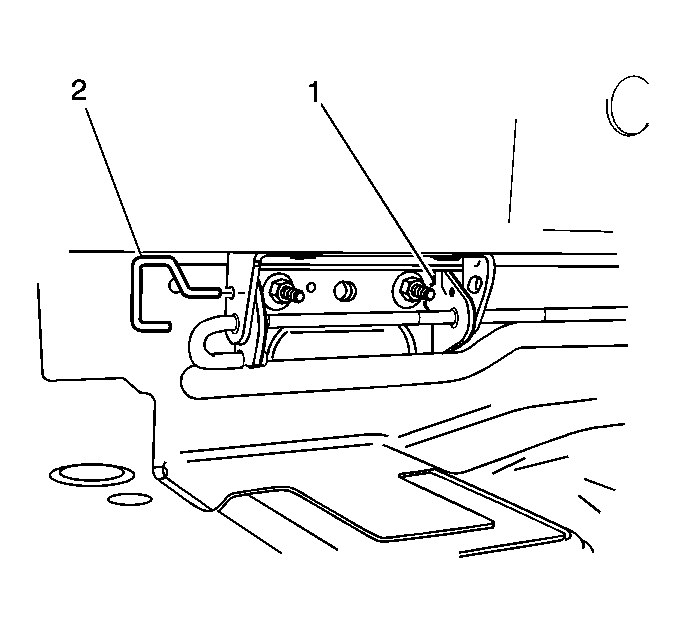

    6. Fig 4: Supporting Midgate
    GM1236621Courtesy of GENERAL MOTORS CORP.
  6. Remove the pins (2) from the midgate hinges (1) supporting the midgate.
  7. Close the midgate.
  8. Operate the midgate window until the window is fully closed and engaged in the midgate weatherstrip.
  9. Carefully lower the window in order to access the window clamp bolts.
    10. NOTE: Refer to Fastener Notice .
  10. Complete tightening of the bolts retaining the midgate window to the window regulator.

    Tighten:  Tighten the nuts to 5 N.m (44 lb in).

  11. Inspect the operation of the midgate window.
  12. Install the midgate hinge finish covers. Refer to Midgate Hinge Finish Cover Replacement .

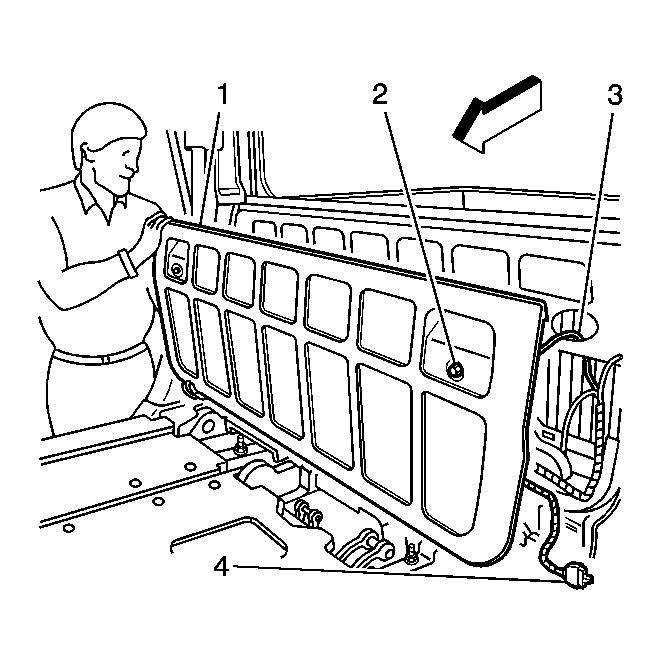

    13. Fig 5: Midgate Inner Panel
    GM1427709Courtesy of GENERAL MOTORS CORP.
  13. Install the midgate inner panel (1). Refer to Midgate Inner Panel Replacement .
