Engine Electrical Component Views

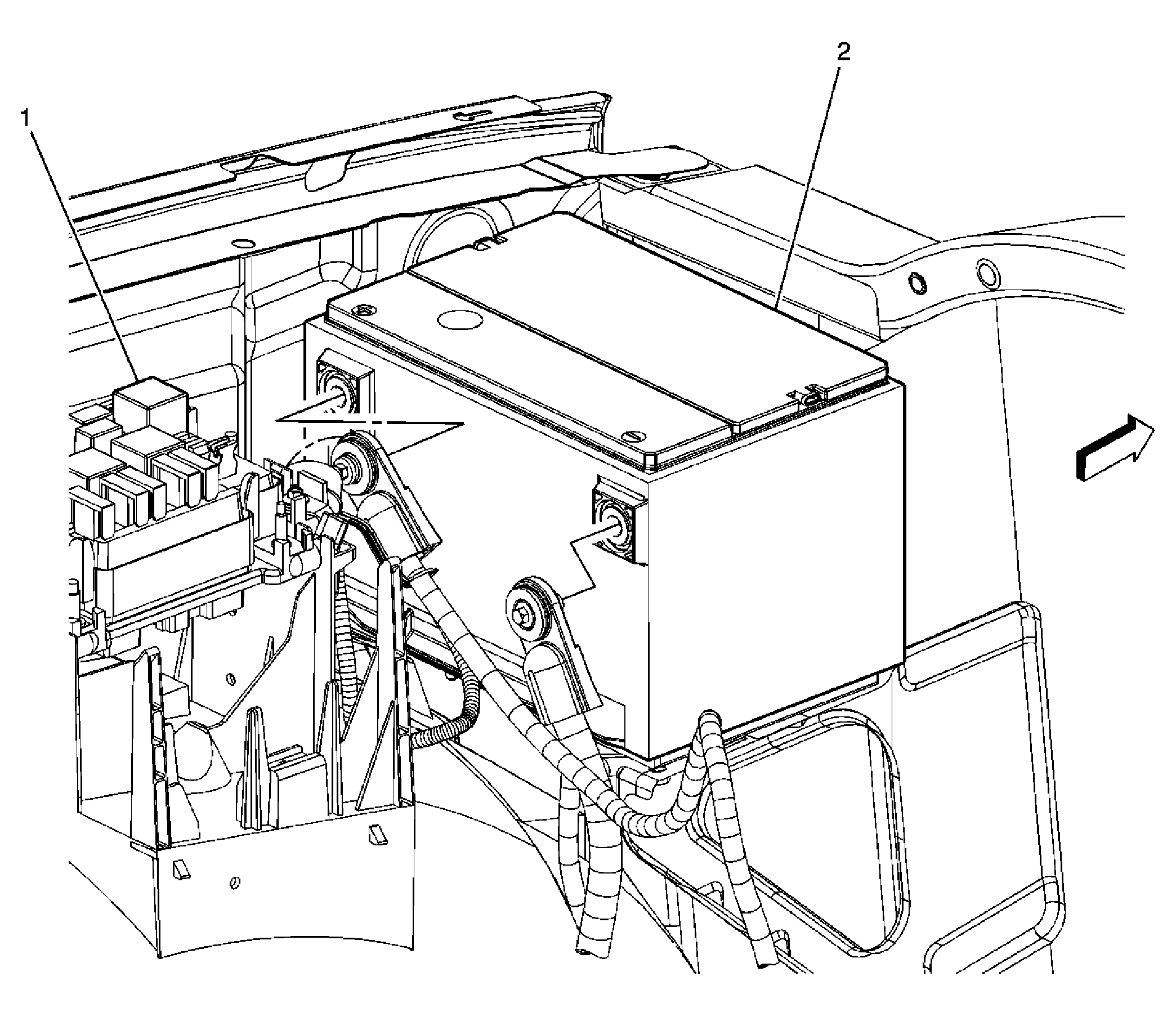

Fig 1: View Of Left Front Corner Of Engine Compartment
GM1454669Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Junction Block - Underhood
2 Battery - Left
Fig 2: Engine Electrical Component Views
GM1232360Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 Junction Block - Battery Cable
3 G100
4 Starter Solenoid
5 Starter
